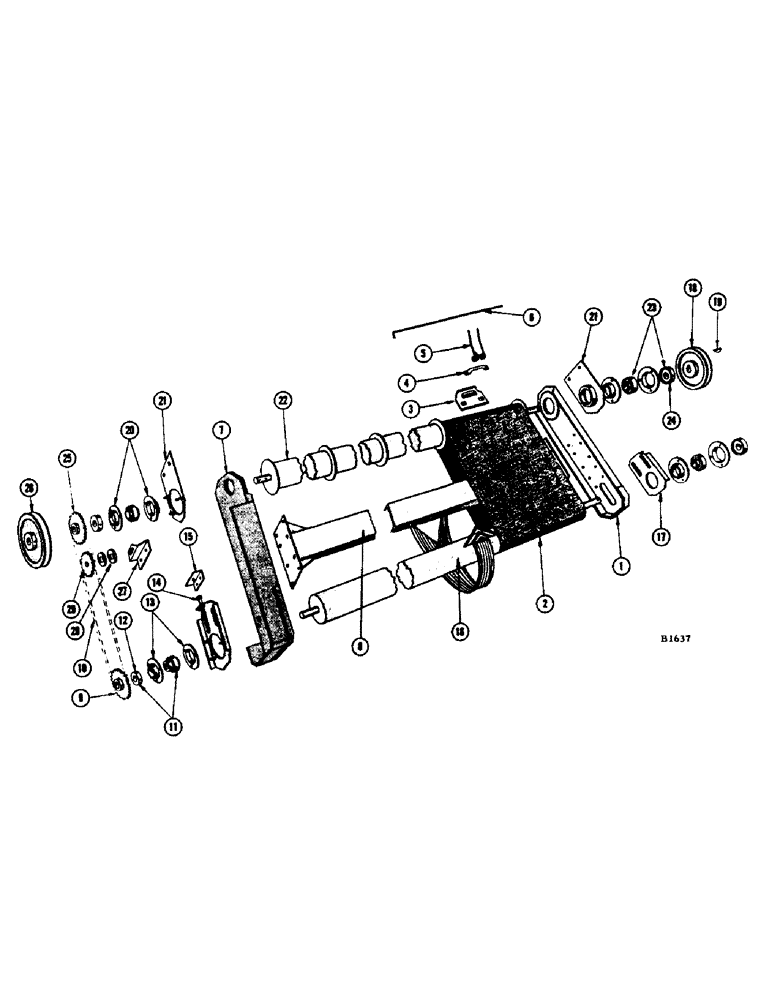

Запчасти Case IH 1060 (034) - DRAPER PICKUP, FOUR BELT (58) - ATTACHMENTS/HEADERS

1

F77368

END SHEET - L.H.

1шт.

2

F79158

CONVEYOR BELT

BELT, CONVEYOR, (36 fingers) See F91853. When replacing one F79158, use F79158. When replacing all four F79158, use four F91853

4шт.

3

F10861

CLIP - hold down

36шт.

BOLT - 1/4" x 3/4" N.C. fl. ctsk. elevator (121-5) And nut (25-104) L.W. (92-4)

72шт.

4

F15245

RETAINER - spring finger, for conveyor

36шт.

5

F15243

SPRING

FINGER - spring for conveyor

36шт.

6

F21401

PIN - belt lacing

1шт.

F78466

LACING SET - for conveyor belt (Not shown)

1шт.

NSS

NOT SOLD SEPARAT

LACING - belt

2шт.

NSS

NOT SOLD SEPARAT

PIN - pilot

1шт.

F91853

BELT, CONVEYOR 57.13" L, (42 fingers), See F79158 57.13" L

4шт.

F10861

CLIP - hold down

42шт.

BOLT - 1/4" x 3/4" sl. elevator (w/out ribs (121-6) And nut (129-101) L.W. (192-19)

84шт.

F15245

RETAINER - spring finger

42шт.

F15243

SPRING

FINGER - spring

42шт.

F91854

LACING KIT - belt (Not shown)

1шт.

F22395

PIN - hinge

1шт.

NSS

NOT SOLD SEPARAT

LACING - belt

2шт.

NSS

NOT SOLD SEPARAT

PIN - pilot

1шт.

7

F87793

END SHEET - R.H. (Replaces F77371)

1шт.

8

F87811

TUBE - torque (Replaces F81884)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

2шт.

BOLT - 3/8" x 1-1/4" rhd. sh. sq. nk. (111-354) L.W. (192-21)

8шт.

NUT - 3/8" N.F. hex. (129-123) Plain wshr. (195-104)

8шт.

9

F77273

SPROCKET - (10T) Front conveyor roller drive, R.H. end

1шт.

10

F8655

X

CHAIN - lower roller drive (See chain page)

1шт.

11

3074CSA

BALL BEARING

- front conveyor roller shaft

2шт.

12

F62108

COLLAR

1шт.

13

B18282

FLANGE

- for ref. 11

4шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

6шт.

14

F9423

SCREW - adjusting

2шт.

15

F77596

ANGLE - adjusting, for F9423 screw

2шт.

16

F77269

ROLLER - front, conveyor

1шт.

PIN - 1/4" x 1-3/4" driv-loc (135-360)

2шт.

17

F77369

SCREW

PLATE - bearing, front adjusting

2шт.

NUT - 5/16" N.F. hex. (25-115) L.W. (92-5) Plain washer (95-5)

4шт.

18

F81889

SHEAVE - rear roller drive L.H. end (Replaces F77186)

1шт.

PIN - 1/4" x 1-3/4" driv-loc type "A" (135-360)

1шт.

19

126-121

WOODRUFF KEY,#A, 1/4" x 7/8", HT

1шт.

20

B18282

FLANGE

- for 3074CSA bearing

4шт.

NUT - 5/16" N.C. hex. (25-105) L.W. (92-5)

6шт.

21

F77175

BRACKET - bearing, for ref. 22

2шт.

BOLT - 7/16" x 1" N.F. hex. (114-301) nut (129-124)

4шт.

22

F77171

ROLLER - rear, conveyor

1шт.

PIN - 1/4" x 1-3/4" driv-loc (135-360)

1шт.

23

3074CSA

BALL BEARING

- rear conveyor roller shaft

2шт.

24

F62108

COLLAR

1шт.

25

F77273

SPROCKET - (10T) Rear conveyor roller drive, R.H. end

1шт.

26

F1265

SHEAVE - (4-5/8" O.D.) Beater drive (R.H. end of rear roller shaft)

1шт.

PIN - 1/4" x 1/2" driv-loc (135-359)

1шт.

F8549

"V"BELT - rear roller drive (Not shown)

1шт.

27

F8658

BRACKET - tightener, conveyor chain drive

1шт.

BOLT - 5/8" x 2" rhd. sq. nk. (11-1032) nut (25-1010)

1шт.

28

O2287CS

WASHER - 1-5/16" O.D. x 21/32" I.D. sq. hole, for ref. 27

2шт.

29

F8659

SPROCKET - (11T) Conveyor chain tightener

1шт.
