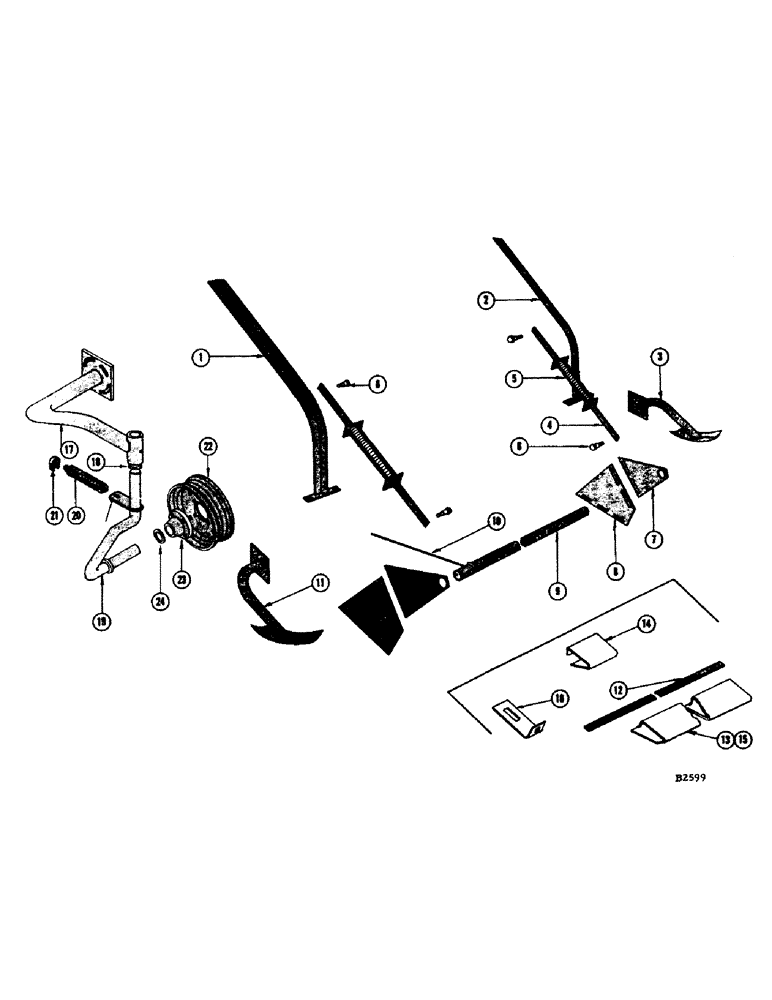

Запчасти Case IH 1060 (032) - CASE DRAPER PICKUP ATTACHMENT, PICKUP SUPPORTS (58) - ATTACHMENTS/HEADERS

1

F88428

ANGLE - mtg., R.H. (Replaces F87799 when stock is exhausted)

1шт.

F87799

ANGLE - mounting, R.H. (Replaced by F88428)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-123)

4шт.

WASHER - 3/8" plain (195-104) L.W. (192-21)

4шт.

2

F88429

ANGLE - mtg., L.H. (Replaces F87800 when stock is exhausted)

1шт.

F87800

ANGLE - mounting, L.H. (Replaced by F88429)

1шт.

BOLT - 3/8" x 1" N.F. hex. (114-200) nut (129-103)

2шт.

WASHER - 3/8" plain (195-104)

2шт.

3

F77372

RUNNER - L.H.

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6) Wshr. (95-6)

4шт.

4

F77374

SUPPORT ARM - spring seat

4шт.

BOLT - 5/16" x 1" N.F. hex. (114-104) nut (129-122)

2шт.

5

V13820

SPRING - for support arms

2шт.

6

O156CB

BOLT - shoulder, connects support arms

4шт.

NUT - 3/8" N.C. hex. (129-103) L.W. (192-21)

4шт.

7

F9981

BRACKET - windguard pipe (See F9633)

2шт.

BOLT - 7/16" x 2-1/4" N.F. hex. (114-304)

2шт.

NUT - 7/16" N.F. hex. (129-124)

4шт.

8

F9631

BRACKET - beater support

2шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122)

4шт.

WASHER - 5/16" plain (195-103)

8шт.

9

F9638

PIPE - windguard (4 belt draper)

1шт.

F22283

PIPE - windguard (5 belt draper)

1шт.

BOLT - 7/16" x 4" N.C. hex. (113-321)

2шт.

NUT - Gripco jam (131-353)

4шт.

PIN - 3/16" x 2" cotter (132-99)

2шт.

10

F9639

TINE - windguard (19 used on 5 belt draper)

15шт.

F9639 tine must be shortened 13 inches when used with feeder roll attachment.

1шт.

11

F77373

RUNNER - R.H.

1шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6) Wshr. (95-6)

4шт.

12

F22274

WIPER - finger (Replaces F9643)

2шт.

BOLT - 1/4" x 5/8" N.F. hex. (14-410) nut (25-114)

13шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

13шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

6шт.

13

F22273

SHIELD - sickle drive (Replaced by F14816)

2шт.

14

F12150

SUPPORT - shield (Replaced by F14802)

4шт.

15

F14816

SHIELD - sickle drive (Replaces F22273 when stock is exhausted)

2шт.

16

F14802

CLIP - shield (Replaces F12150 when stock is exhausted)

4шт.

F14136

ANGLE - finger wiper (12' pickup header)

2шт.

17

F78891

ARM - L.H. support, gauge wheel, castle attachment

1шт.

FITTING - 1/8" str. (219-8), castle wheel attachment

1шт.

F78892

ARM - R.H. support, gauge wheel, castle attachment

1шт.

FITTING - 1/8" str. (219-8), castle wheel attachment

1шт.

18

B18275

WASHER

- (1-1/2" O.D. x 1-1/32" I.D. #12 ga.) axle, castle wheel attachment

4шт.

19

F86973

AXLE - gauge wheel, castle attachment

2шт.

PIN - 1/4" x 1-3/4" cotter (132-307), castle wheel attachment

4шт.

20

O2818BF

SPRING - gauge wheel axle, castle attachment

2шт.

21

F12970

CLAMP - spring, castle wheel attachment

2шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (14-420) Dbl. nut (25-114), castle wheel attachment

2шт.

22

F11478

WHEEL - gauge, 2 disc halves, for 12 x 3.50 semi-pneumatic tire, castle attachment

2шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115), castle wheel attachment

8шт.

23

F1355

HUB - gauge wheel, castle attachment

2шт.

FITTING - 1/8" str. (219-1), castle wheel attachment

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115), castle wheel attachment

8шт.

24

A28764

WASHER - (1-3/4 O.D. x 1-1/32" I.D. #16 ga.) Axle, castle wheel attachment

6шт.
