Запчасти Case IH 1060 (030) - REEL DRIVE JACKSHAFT, HEAVY DUTY HEADER AND CUTTER BAR EXTENSION (58) - ATTACHMENTS/HEADERS

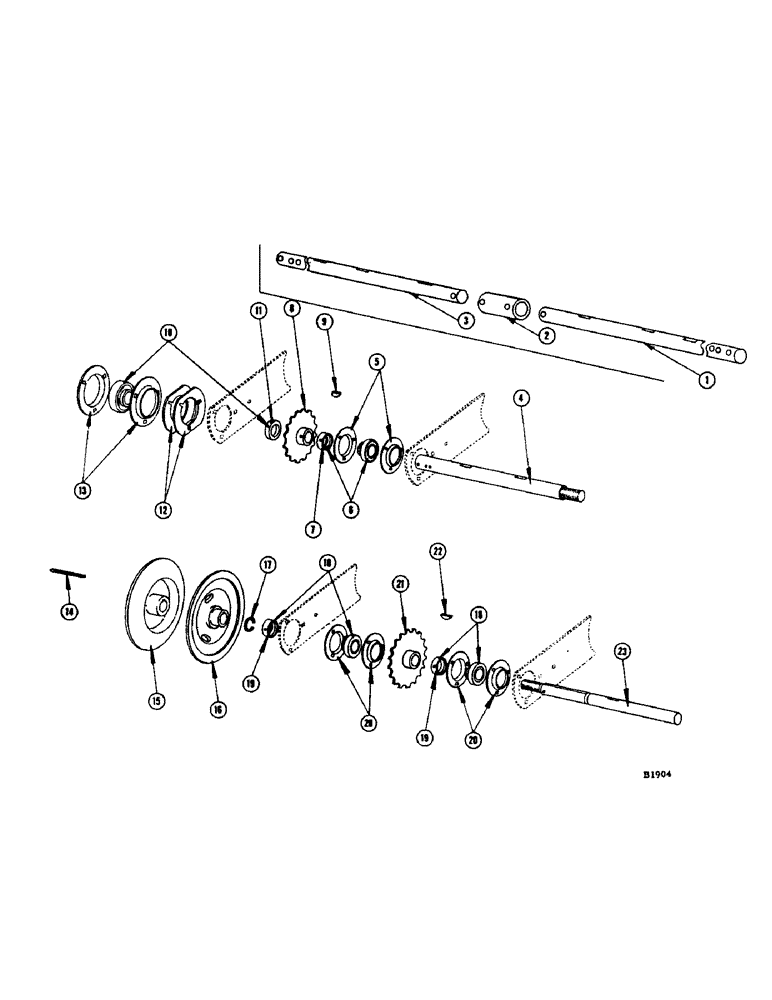

Схема запчастей Case IH 1060 - (030) - REEL DRIVE JACKSHAFT, HEAVY DUTY HEADER AND CUTTER BAR EXTENSION (58) - ATTACHMENTS/HEADERS
22
20
17
10
13
4
23
19
19
2
14
18
7
16
11
3
6
5
15
12
8
10
1
20
21
9

Артикул

Название

Примечание

Количество

1

F11911

SHAFT - reel, L.H. (Extended cutter bar)

1шт.

KEY - #15 Woodruff (126-24)

1шт.

PIN - 3/16" x 2-1/2" cotter (132-102)

1шт.

2

F11913

COUPLER - reel shafts (Extended cutter bar)

1шт.

BOLT - 3/8" x 2" N.F. hex. (14-632) Dbl. nut (25-116)

2шт.

3

F11912

SHAFT - reel, R.H. (Extended cutter bar)

1шт.

KEY - #15 Woodruff (126-24)

1шт.

PIN - 3/16" x 2-1/2" cotter (132-102)

1шт.

4

F11673

JACKSHAFT - reel drive (See F11911 - F11912 and F11913)

1шт.

5

B18282

FLANGE

- (For ref. 6)

2шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105)

3шт.

6

3074CSA

BALL BEARING

- inner end of jackshaft

1шт.

7

F62108

COLLAR

1шт.

F8393

CHAIN - drives reel drive jackshaft (See chain page)

1шт.

8

F79881

SPROCKET ASSY.

SPROCKET - (24T and 38T dbl.) Drivers reel drive jackshaft (Replaced by F87397)

1шт.

F87397

SPROCKET ASSY.

SPROCKET - (24T and 38T) Replaces F79881

1шт.

9

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - "B" Woodruff (For ref. 8)

1шт.

PIN - 1/8" x 2" cotter (132-56)

1шт.

10

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - outer end of jackshaft

1шт.

11

F62226

COLLAR

1шт.

12

F10879

SPACER - for ref. 10

2шт.

13

F62225

FLANGE

- for ref. 10

2шт.

BOLT - 3/8" x 1-1/4" rhd. sq. nk. (11-620) nut (25-106)

3шт.

14

F8896

KEY - (1/4" sq. x 3-3/4") For reel drives sheaves,jackshaft standard headers

1шт.

15

F1313

SHEAVE

HALF - reel drive, jackshaft standard headers

1шт.

16

F1314

SHEAVE HALF - reel drive, jackshaft standard headers

1шт.

17

A26949

RING, SNAP

SNAP RING - jackshaft, reel drive standard headers

1шт.

18

3074CSA

BALL BEARING

- jackshaft, reel drive standard headers

2шт.

19

F62108

COLLAR

reel drive jackshaft standard headers

1шт.

20

B18282

FLANGE

- (For ref. 18), reel drive jackshaft standard headers

4шт.

BOLT - 5/16" x 7/8" rhd. sq. nk. (11-514) nut (25-105), reel drive jackshaft standard headers

6шт.

F8393

CHAIN - drives reel drive jackshaft (See chain page), standard headers

1шт.

21

F79869

SPROCKET - (26T and 38T dbl.) Drives reel drive jackshaft, standard headers

1шт.

22

126-24

WOODRUFF KEY,#15, 1/4" x 1"

(For ref. 21), Reel drive jackshaft standard headers #15, 1/4" x 1"

1шт.

PIN - 1/8" x 2" cotter (132-56), reel drive jackshaft standard headers

1шт.

23

F11670

JACKSHAFT - reel drive, standard headers

1шт.

FITTING - 1/8" str. (219-1), reel drive jackshaft standard headers

1шт.

NUT - 3/4" N.F. hex. (25-1512), reel drive jackshaft standard headers

2шт.

WASHER - 3/4" plain (95-12), reel drive jackshaft standard headers

1шт.

Выбрано товаров: 39
