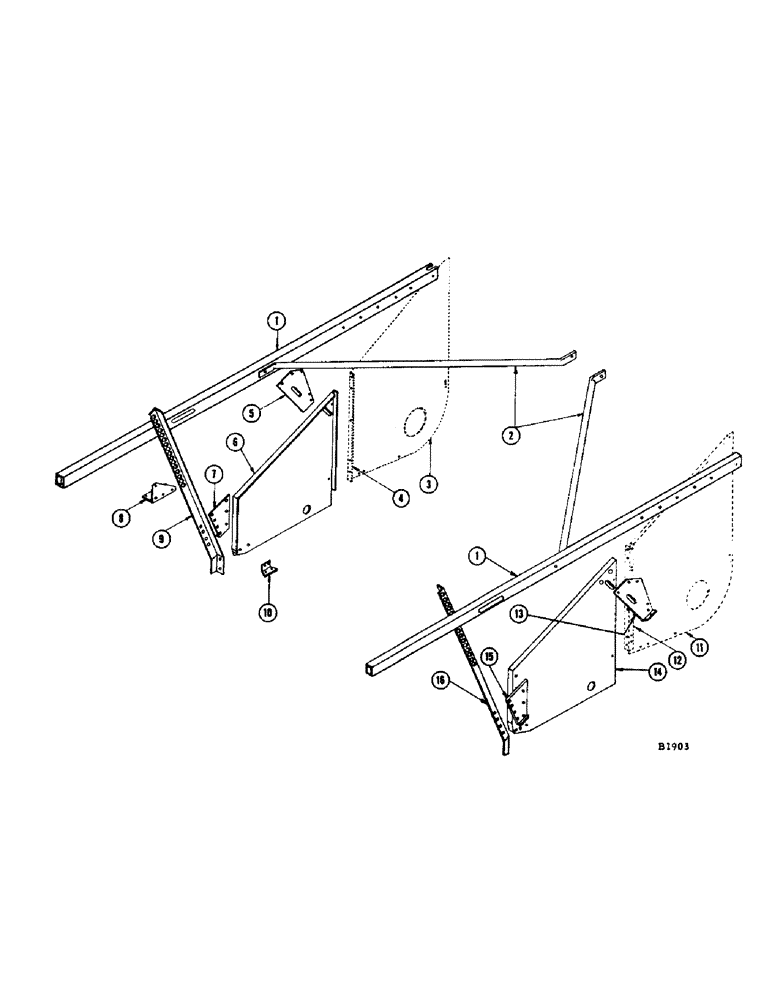

Запчасти Case IH 1060 (026) - AUGER TROUGH HEADS AND EXTENSIONS, HEAVY DUTY EXTENDED CUTTER BAR (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
F10524
ARM - reel support, R.H. and L.H.
2шт.
BOLT - 3/8" x 2-1/4" N.F. hex. (114-213) nut (129-123)
2шт.
BOLT - 7/16" x 2-7/8" N.F. hex. (114-300) nut (129-124)
2шт.
WASHER - 3/8" plain (195-525)
2шт.
2
F78843
BRACE - reel support arms
2шт.
BOLT - 7/16" x 1-1/2" N.F. hex. (114-303) nut (129-124)
2шт.
BOLT - 7/16" x 2-7/8" N.F. hex. (114-300) Dbl. nut (129-124)
2шт.
3
F77066
HEAD - auger trough, R.H. (Reference - see auger trough, R.H. head)
1шт.
4
F8300
POST - divider, R.H. (Reference - see auger trough, R.H. head)
1шт.
5
F12235
GUSSET - reel support, R.H.
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
3шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-115)
2шт.
6
F86272
END SHEET - R.H.
1шт.
BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)
2шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
1шт.
BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)
1шт.
7
F12247
GUSSET - reel support, R.H.
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
3шт.
8
F10527
GUSSET - R.H. end sheet
1шт.
BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)
2шт.
9
F12255
ANGLE - support, R.H.
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (114-105) nut (129-122)
2шт.
BOLT - 5/16" x 5/8" rhd. sq. nk. (111-217) nut (129-102)
2шт.
WASHER - 5/16" plain washer (195-521)
2шт.
10
F10526
BRACKET - support
1шт.
BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)
1шт.
11
F77065
SCREW
HEAD - auger trough, L.H. (Reference - see auger trough, L.H. head)
1шт.
12
F8303
POST - divider, L.H. (Reference - see auger trough, L.H. head)
1шт.
13
F12234
GUSSET - reel support, L.H.
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
3шт.
BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)
2шт.
14
F86271
END SHEET - L.H.
1шт.
BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)
2шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
4шт.
BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)
1шт.
BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)
1шт.
15
F12244
GUSSET - reel support, L.H.
1шт.
BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)
3шт.
16
F12251
ANGLE - support, L.H.
1шт.
BOLT - 5/16" N.F. hex. (114-105) nut (129-122)
2шт.
BOLT - 5/16" x 5/8" rhd. sq. nk. (111-217) nut (129-102)
2шт.
WASHER - 5/16" plain (195-521)
2шт.
Выбрано товаров: 43
