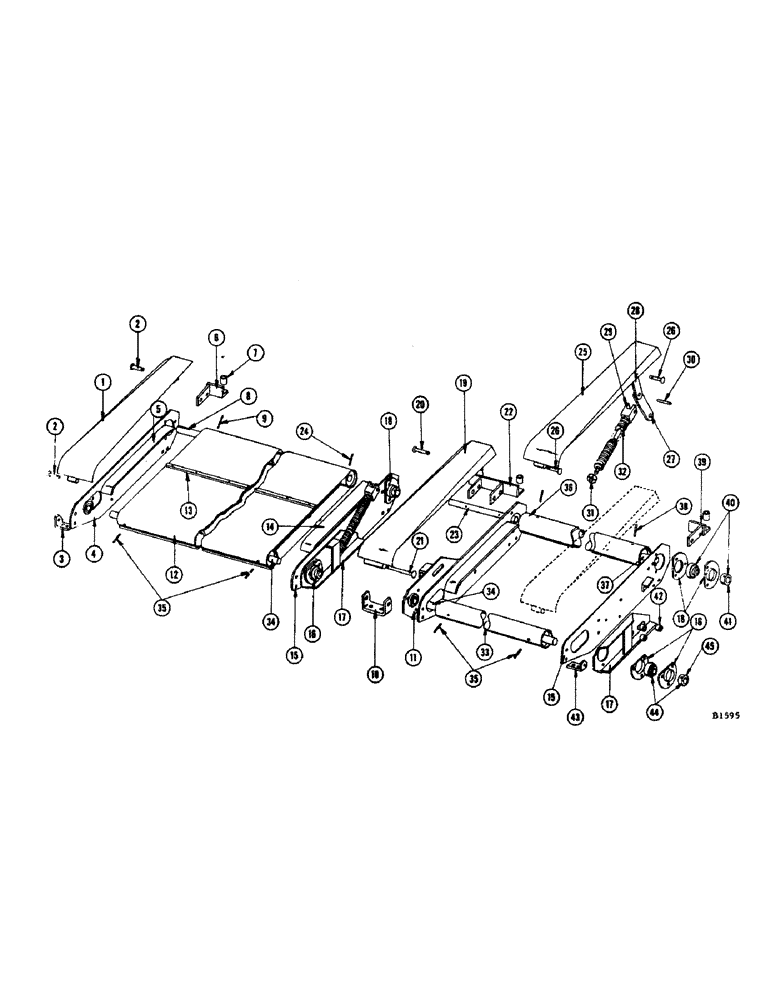

Запчасти Case IH 1060 (022) - DRAPER ROLL ASSEMBLY, HEAVY DUTY EXTENDED CUTTER BAR (58) - ATTACHMENTS/HEADERS

1

F78804

DEFLECTOR - R.H., draper

1шт.

2

O2809CS

PIN - 3/8" x 1-1/2" drilled (For ref. 1)

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

3

O5348CS

PIVOT - R.H., draper bracket

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

2шт.

WASHER - 3/8" plain (195-25)

2шт.

4

3240CSA

SUPPORT - R.H. draper roll

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105)

4шт.

BOLT - 5/16" x 1" #3 plow (18-516) nut (25-105)

2шт.

WASHER - 5/16" plain (95-5)

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

5

O4762CS

RAIL - draper skids, R.H. (For ref. 4)

2шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

6шт.

6

F78815

BRACKET - support, draper R.H. rear

1шт.

7

O575N

SPACER - 1/2" x 1-13/32" (For ref. 6)

4шт.

BOLT - 3/8" x 2-1/4" rhd. sq. nk. (11-636) nut (25-106)

4шт.

WASHER - 3/8" plain (195-25)

4шт.

8

F10514

SHAFT - draper drive, R.H.

1шт.

9

138-181

LOCK PIN,3/8" x 2 1/2", Slotted

ROLL PIN - 3/8" x 2-3/4"

1шт.

10

O4870CS

BRACKET - support, for ref. 4 and 15

1шт.

BOLT - 3/8" x 3/4" rhd. sq. nk. (11-612) nut (25-106)

2шт.

11

A3224CSA

BRACKET - bearing, draper roll R.H.

2шт.

12

NSI

DRAPER - (Special - not included with cutter bar extension)

2шт.

13

NSI

FASTENER - draper (Special - not included with cutter bar extension)

1шт.

14

O4763CS

RAIL - draper skid, L.H. (For ref. 15)

2шт.

RIVET - 1/4" x 3/4" ctsk. hd. (46-412)

6шт.

15

3241CSA

SUPPORT - L.H. draper roll

2шт.

BOLT - 3/8" x 1" N.F. hex. (14-616) nut (25-116)

2шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105)

4шт.

BOLT - 5/16" x 1" #3 plow (18-516) nut (25-105)

2шт.

WASHER - 5/16" plain (95-5)

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

16

O4787CS

FLANGE - (For ref. 44)

8шт.

SCREW - 1/4" x 5/8" N.C. rhd. mach. (73-410) nut (25-104)

12шт.

WASHER - 1/4" plain (95-4) L.W. (92-4)

12шт.

17

A3225CSA

BRACKET - bearing, draper roll L.H.

2шт.

18

O4210CS

FLANGE - (For ref. 40)

8шт.

SCREW - 5/16" x 1" N.C. mach. (73-516) nut (25-105)

12шт.

WASHER - 5/16" plain (95-5) L.W. (92-5)

12шт.

19

3217CSA

DEFLECTOR - center, draper

1шт.

20

E466S

PIN - (3/8" x 1-3/4" drilled) rear, (For ref. 19)

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

21

O730HT

PIN - (3/8" x 3-9/16" drilled) front, for ref. 19

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

22

3220CSA

PIVOT - center, draper bracket

1шт.

23

O4777CS

SHAFT - stub, rear draper roll, center

1шт.

24

138-181

LOCK PIN,3/8" x 2 1/2", Slotted

ROLL PIN - 3/8" x 2-3/4" (For ref. 23)

2шт.

25

3229CSA

DEFLECTOR - L.H., draper

1шт.

26

O2809CS

PIN - 3/8" x 1-1/2" drilled (For ref. 25)

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

27

O4788CS

LEVER - lower, draper tension

4шт.

28

O4789CS

LEVER - secondary, draper tension

4шт.

29

A3228CSA

ROD - release

4шт.

30

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

4шт.

31

131-7

LOCK NUT,7/16"-20

LOCKNUT - 7/16" N.F.

4шт.

32

O878FS

SPRING - release rod

4шт.

33

F78808

ROLL - front, draper

2шт.

34

NSS

NOT SOLD SEPARAT

SHAFT - stub, front draper roll

2шт.

35

138-178

LOCK PIN,3/8" x 2 1/4", Slotted

PIN, 3/8" x 2 1/4", Slotted

2шт.

36

F79422

ROLL - rear, draper drive

2шт.

37

O4778CS

SHAFT - stub, rear draper roll, L.H.

1шт.

38

138-181

LOCK PIN,3/8" x 2 1/2", Slotted

ROLL PIN - 3/8" x 2-3/4"

1шт.

39

3219CSA

BRACKET - support, draper L.H. rear

1шт.

40

2419CHA

SPHERICAL BEARING,31.75mm ID x 62mm OD x 18mm W

BEARING - rear draper roll

4шт.

41

F62226

COLLAR

1шт.

42

O2062HT

SPACER - for plow bolts of 3240CSA support

12шт.

43

O5349CS

PIVOT - L.H., draper bracket

1шт.

BOLT - 3/8" x 7/8" rhd. sq. nk. (11-614) nut (25-106)

2шт.

WASHER - 3/8" plain (195-25) L.W. (92-6)

2шт.

44

3074CSA

BALL BEARING

- front draper roll

4шт.

45

F62108

COLLAR

1шт.
