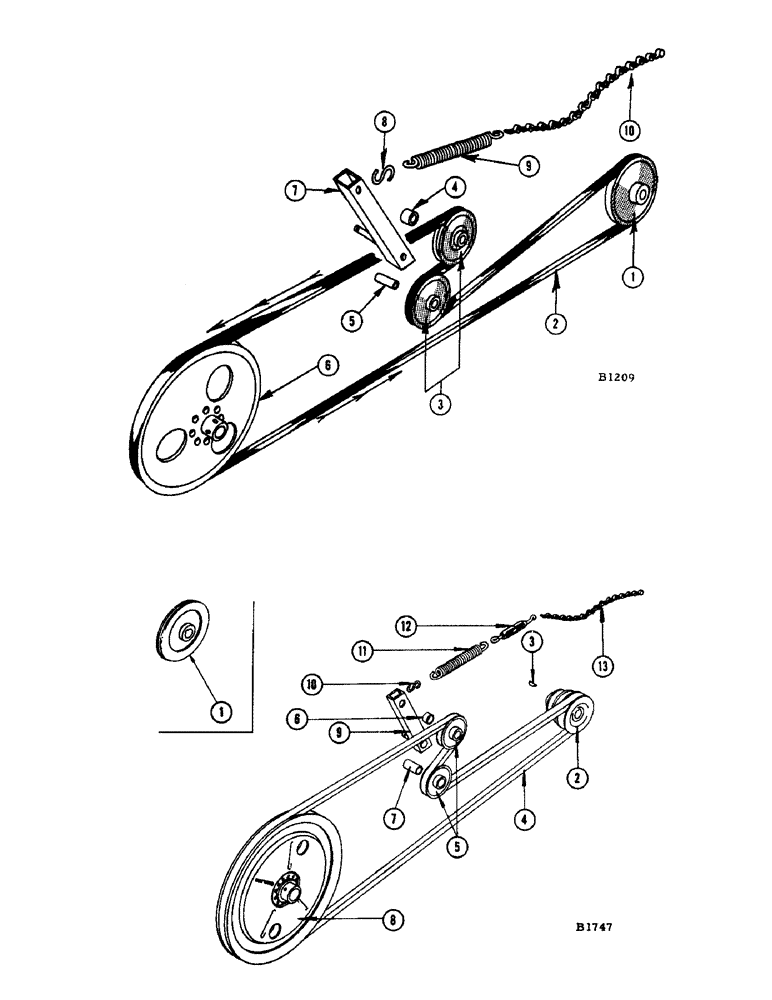

Запчасти Case IH 1060 (016) - REEL DRIVE (58) - ATTACHMENTS/HEADERS

1

F1313

SHEAVE

HALF - reel drive (Female)

1шт.

F1314

SHEAVE HALF - reel drive (Male)

1шт.

2

F8419

V-BELT

"V"BELT - reel drive

1шт.

3

F13064

SCREW

SHEAVE - idler (Replaces F11626)

2шт.

BOLT - 5/8" x 3-3/4" N.F. hex. (114-609) nut (129-127)

1шт.

BOLT - 5/8" x 5-1/2" N.F. hex. (114-610) nut (129-127)

1шт.

4

A28850

SPACER - for upper idler sheave, ref. 3

1шт.

5

F10816

SPACER

- for lower idler sheave, ref. 3

1шт.

6

F82542

SHEAVE

- (23-1/8" O.D.) Reel drive

1шт.

BOLT - 1/2" x 2-3/4" N.F. hex. (14-844)

1шт.

NUT - jam (25-158)

2шт.

7

F77109

SCREW

BRACKET - reel drive tightener

1шт.

PIN - 3/16" x 3/4" cotter (132-89)

1шт.

8

F20641

"S" HOOK - for ref. 10

2шт.

9

O1158FS1

SPRING - reel belt tightener

1шт.

10

F20640

CHAIN - reel belt tightener

1шт.

1

F1372

SHEAVE (Single groove) Reel drive (Special - use with hydraulic controlled variable speed) Extended cutter bar, heavy duty

2шт.

2

F1373

SHEAVE - (Triple groove) Reel drive (Extended cutter bar) See F1326, heavy duty

2шт.

F1326

SHEAVE - (Triple groove) Reel drive (18-24-30 RPM) See F1373, heavy duty

1шт.

3

126-25

WOODRUFF KEY,#B, 5/16" x 1"

KEY - 5/16" x 1" ("B" Woodruff), heavy duty reel drive

1шт.

PIN - 3/16" x 2-1/2" cotter (132-102), heavy duty reel drive

1шт.

4

F8819

V-BELT

"V"BELT - reel drive (See F10559), heavy duty

1шт.

F10559

"V"BELT - reel drive (Extended cutter bar) See F8819, heavy duty

1шт.

5

F13064

SCREW

SHEAVE - (6" O.D.) Idler, reel drive (4 used with extended cutter bar) Replaces F11626, heavy duty

2шт.

BOLT - 5/8" x 3-3/4" N.F. hex. (114-609) nut (129-127), heavy duty reel drive

1шт.

BOLT - 5/8" x 5-1/2" N.F. hex. (114-610) nut (129-127), heavy duty reel drive

1шт.

6

A28850

SPACER - for upper idler sheave (2 used with exten, heavy duty reel driveded cutter bar)

1шт.

7

F10816

SPACER

- for lower idler sheave (2 used with extended cutter bar), heavy duty reel drive

1шт.

8

F82845

SHEAVE - reel drive (On reel shaft) 2 used with extended cutter bar (See F94177, slip clutch sheave p. 13C), heavy duty

1шт.

BOLT - 1/2" x 2-3/4" N.F. hex. (114-414), heavy duty reel drive

1шт.

NUT - jam (129-165), heavy duty reel drive

2шт.

9

F77109

SCREW

BRACKET - reel drive tightener (2 used with extended cutter bar), heavy duty

1шт.

10

F20641

"S" HOOK - for ref. 13, heavy duty reel drive

2шт.

11

O1158FS1

SPRING - reel belt tightener (2 used with extended cutter bar), drive heavy duty

1шт.

12

F10915

TURNBUCKLE - reel drive belt adjustment (2 used with extended cutter bar), heavy duty

1шт.

NUT - 1/4" N.C. hex. (129-101), heavy duty reel drive

1шт.

13

F20640

CHAIN - reel belt tightener (2 used with extended cutter bar), heavy duty reel drive

1шт.

F79192

DRIVE - reel chain

1шт.
