Запчасти Case IH 1060 (014) - REEL AND AUGER GUARD (58) - ATTACHMENTS/HEADERS

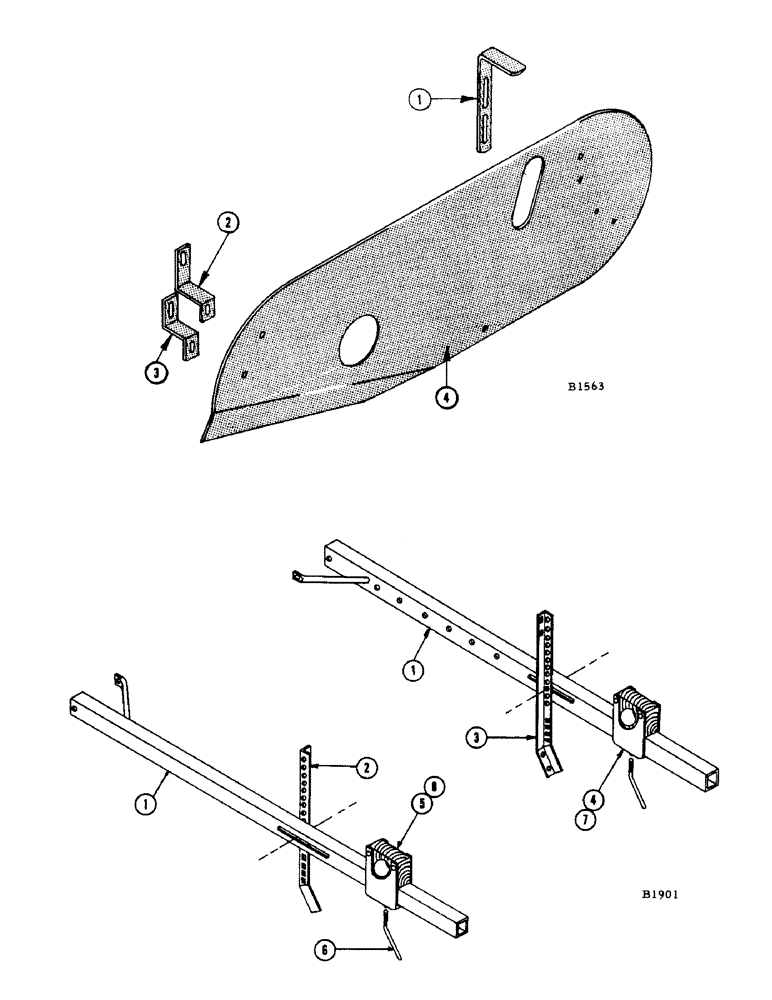

Схема запчастей Case IH 1060 - (014) - REEL AND AUGER GUARD (58) - ATTACHMENTS/HEADERS
1
4
1
1
2
3
2
7
6
3
4
5
4

Артикул

Название

Примечание

Количество

1

F10546

STRAP - reel drive shield

1шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

2шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

2шт.

2

F10547

CLIP - auger shield

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

1шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

1шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

1шт.

WASHER - 5/16" plain (95-5) L.W. (92-5)

1шт.

3

F10548

CLIP - auger shield

2шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

3шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

1шт.

WASHER - 1/4" plain (195-102) L.W. (192-19)

4шт.

4

F78831

SHIELD - auger and reel chain

1шт.

1

F77107

SCREW

ARM - reel support (Before #8357001: Replaced by F55756 when stocks are exhausted)

2шт.

F88756

ARM - reel support (8357001 and after) Replaces F77107

2шт.

BOLT - 7/16" x 1-1/2" N.F. hex. (114-303) Dbl. nut (129-124), reel supports

2шт.

BOLT - 7/16" x 2-3/4" N.F. hex. (114-305) Dbl. nut (129-124), reel supports

2шт.

BOLT - 3/8" x 2-1/4" N.F. hex. (114-213) nut (129-123), reel supports

2шт.

WASHER - 3/8" plain (195-104) L.W. (192-21), reel supports

2шт.

2

F8408

RAIL - reel support, R.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122), reel supports

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102), reel supports

2шт.

3

F8407

RAIL - reel support, L.H.

1шт.

BOLT - 5/16" x 3/4" N.F. hex. (114-102) nut (129-122), reel supports

2шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (111-202) nut (129-102), reel supports

2шт.

4

F79591

BEARING

SUPPORT - reel shaft (Exhaust, then use F87400)

2шт.

5

F4082

BEARING - (Wood) Exhaust, then use F4100, reel supports

1шт.

RIVET - 1/4" x 1-7/8" rhd. (45-430), reel supports

2шт.

6

F11320

HANDLE - locking (Before #8357001), reel supports

2шт.

7

F87400

BRACKET - bearing (Replaces F79591), reel supports

2шт.

SCREW - 3/8" x 1-1/2" sq. hd. cup pt. set (181-810), reel supports

2шт.

NUT - 3/8" N.C. hex. (129-103), reel supports

2шт.

8

F4100

BEARING

- (Wood) Replaces F4082, reel supports

2шт.

BOLT - 1/4" x 2-1/4" rhd. sq. nk. (111-126), reel supports

8шт.

NUT - 1/4" ESNA (131-71), reel supports

8шт.

Выбрано товаров: 35
