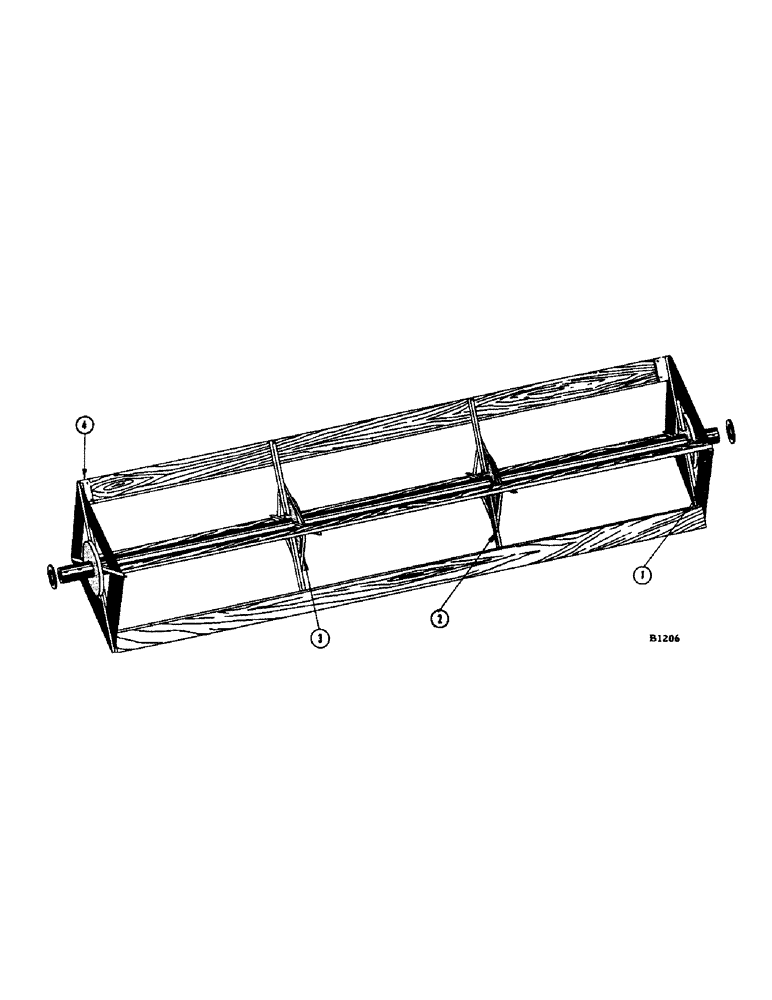

Запчасти Case IH 1060 (012) - REEL CONVERSION KIT, FOUR BAT TO SIX BAT (58) - ATTACHMENTS/HEADERS

1

F8463

CLOSURE - reel end (For 6 bat reel)

12шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121)

16шт.

F8463

CLOSURE - reel end (13 ft. header)

12шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

16шт.

2

F9236

ARM

- reel

8шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

16шт.

F9236

ARM

- reel (13 ft. header)

6шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

12шт.

3

F9239

STRAP - tie, reel arms (For 6 bat reel)

12шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

4шт.

F9239

STRAP - tie, reel arms (13 ft. header)

6шт.

BOLT - 1/4" x 1/2" N.C. hex. (113-1) nut (129-101)

2шт.

4

F14906

REINFORCEMENT - reel bat

4шт.

BOLT - 1/4" x 1" rhd. sq. nk. (111-111) nut (129-101)

8шт.

F10036

STRAP - tie, reel arm

12шт.

BOLT - 1/4" x 5/8" N.F. hex. (114-3) nut (129-121)

12шт.

F12855

BAT - reel filler for 12, 13, 14 and 16 ft., attachment

12шт.

BOLT - 1/4" x 1" rhd. sq. nk. (111-111) nut (129-101), reel filler attachment

24шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121), reel filler attachment

24шт.

F10271

BAT - reel filler, center (16 ft. reels), attachment

6шт.

BOLT - 1/4" x 1/2" N.F. hex. (114-2) nut (129-121), reel filler attachment

12шт.

O708CK

STRAP - tie, reel arm, reel filler attachment

24шт.

BOLT - 1/4" x 1-1/4" N.F. hex. (114-6) nut (129-121), reel filler attachment

12шт.

O134B

WASHER, reel filler attachment

12шт.
