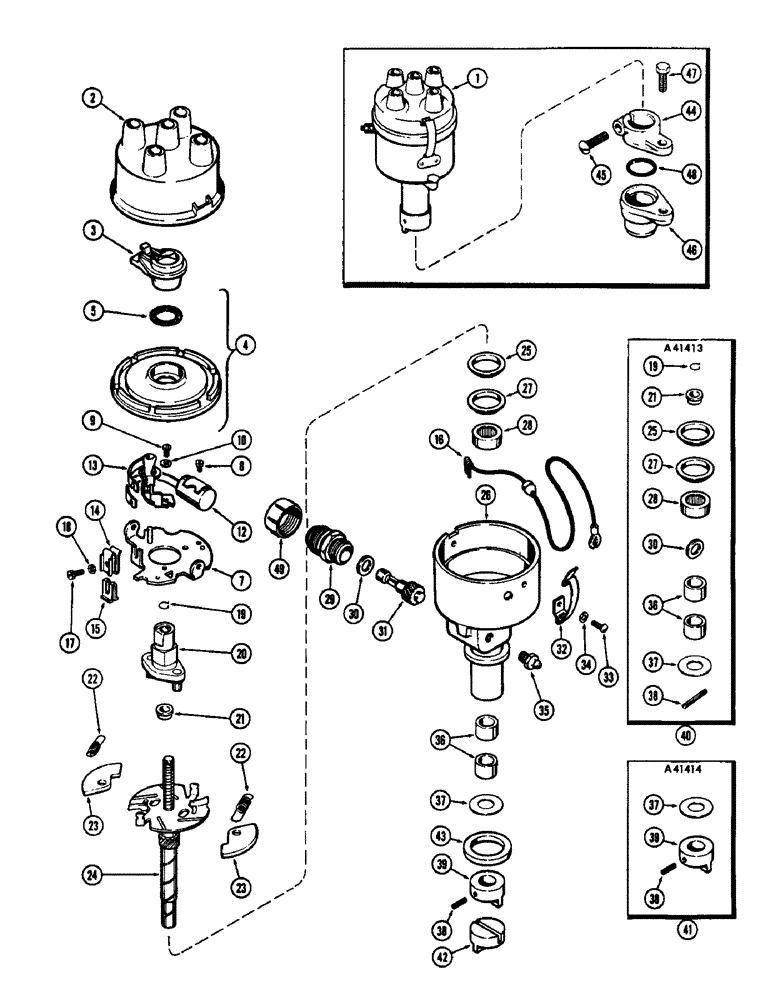

Запчасти Case IH 1060 (438) - A57081 DISTRIBUTOR, (284) SPARK IGNITION ENGINE, WITH CAMSHAFT DRIVE OIL PUMP (55) - ELECTRICAL SYSTEMS

1

A57081

DISTRIBUTOR

ASSY. - (Prestolite or Autolite 4404)

1шт.

2

A24564

CAP

- distributor

1шт.

3

A24566

ROTOR

- distributor

1шт.

4

A24763

PLATE

ASSY. - seal

1шт.

5

A24764

WASHER

SEAL - dust (Felt)

1шт.

A40330

PLATE

ASSY. - breaker

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - breaker

1шт.

8

169-56

SCREW - condenser, #6 x 3/16" N.C. fill. hd.

1шт.

9

A24776

SCREW,Locking, #8 - 32 x 3/16"

- breaker, contact #8-32 x 3/16" fill. hd.

1шт.

10

195-509

WASHER,3/16"

- #8 flat

1шт.

A40930

KIT

POINT & CONDENSER KIT

1шт.

12

NSS

NOT SOLD SEPARAT

CONDENSER - (Order A40930)

1шт.

13

NSS

NOT SOLD SEPARAT

POINT SET - breaker contact (Order A40930)

1шт.

14

A24774

CLIP

- retaining, insulator & lead

1шт.

15

A24773

INSULATOR

- clamp & lead

1шт.

16

A24772

HARNESS

LEAD - primary wire

1шт.

17

A24775

SCREW,0.138"-32 x 1/32"

- breaker clip, #6-32 x 5/8" hex.

1шт.

18

195-506

WASHER,#6

- flat #6

1шт.

19

NSS

NOT SOLD SEPARAT

RING - snap, cam retaining (Order ref. 40)

1шт.

20

A24762

PLATE - cam & stop

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. 40)

1шт.

22

A24778

SPRING KIT

SPRING SET - governor weight (Set of 2)

1шт.

23

A24754

WEIGHT - governor

2шт.

24

A41415

SHAFT - distributor drive

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive shaft, upper (Order ref. 40)

1шт.

26

NSS

NOT SOLD SEPARAT

BASE - distributor (Order A57081)

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive shaft, lower (Order ref. 40)

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 40)

1шт.

29

A24781

HOUSING ASSY. - tach. drive (w/bushings)

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drive (Order ref. 40)

1шт.

31

A24761

SHAFT

- drive, tach., w/gear

1шт.

32

A40329

SPRING

CLAMP ASSY. - distributor cap

2шт.

33

NSS

NOT SOLD SEPARAT

SCREW - clamp, #8-32 x 15/16" rd. hd.

1шт.

34

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

35

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease (1/4"-28 str.)

1шт.

36

NSS

NOT SOLD SEPARAT

BUSHING - bearing, distributor (Order ref. 40)

2шт.

37

NSS

NOT SOLD SEPARAT

WASHER - thrust, drive shaft lower (Order ref. 40 or 41)

1шт.

38

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, (See ref. 43) 1/8" x 13/16", Slotted

1шт.

39

NSS

NOT SOLD SEPARAT

COUPLING - distributor drive (Order ref. 41)

1шт.

40

A41413

BEARING

REPAIR KIT - drive shaft

1шт.

41

A41414

COUPLING

KIT - distributor drive

1шт.

42

NSS

NOT SOLD SEPARAT

COUPLING - distributor to oil pump gear (Order A57086) (See page 440)

1шт.

43

NSS

NOT SOLD SEPARAT

SPACER - dist. to block (Order A57086) (See page 440)

1шт.

44

A7622

CLAMP - distributor

1шт.

45

75-520

SCREW - clamp, 5/16" x 1-1/4" N.C., rd. hd.

1шт.

46

A7621

INSERT - support, distributor

1шт.

47

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Insert & clamp Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

48

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor mounting (1 x 1-1/4" x 1/8")

1шт.
