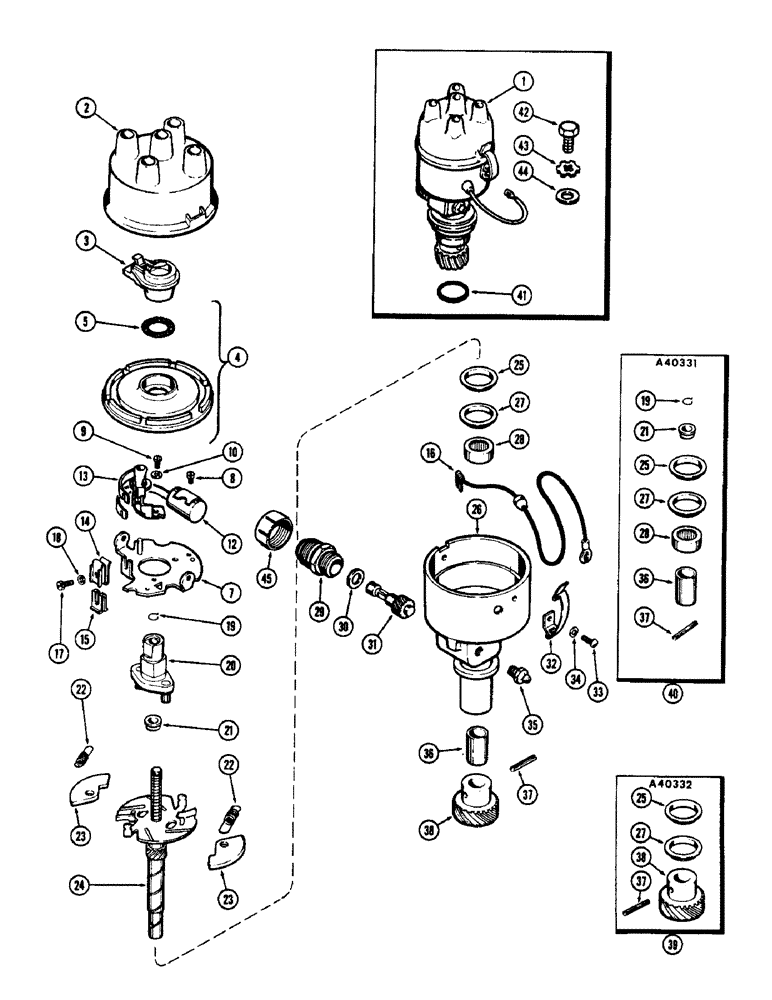

Запчасти Case IH 1060 (436) - A24508 DISTRIBUTOR, (284) SPARK IGNITION ENGINE, WITH FRONT MOUNTED OIL PUMP (55) - ELECTRICAL SYSTEMS

1

A24508

DISTRIBUTOR

ASSY. - (Auto-Lite or Prestolite #4402)

1шт.

2

A24564

CAP

- distributor

1шт.

3

A24566

ROTOR

- distributor

1шт.

4

A4763

PLATE ASSY. - seal

1шт.

5

A24764

WASHER

SEAL - dust (Felt)

1шт.

A40330

PLATE

ASSY. - breaker

1шт.

7

NSS

NOT SOLD SEPARAT

PLATE - breaker

1шт.

8

169-56

SCREW - condenser, #6-32 x 3/16" fill. hd.

1шт.

9

A24776

SCREW,Locking, #8 - 32 x 3/16"

- contact breaker, #8-32 x 3/16" fill hd.

1шт.

10

195-509

WASHER,3/16"

- #8 flat

1шт.

A40930

KIT

CONTACT KIT - points & condenser

1шт.

12

NSS

NOT SOLD SEPARAT

CONDENSER - distributor (Order A40930)

1шт.

13

NSS

NOT SOLD SEPARAT

CONTACT - breaker (Order A40930)

1шт.

14

A24774

CLIP

- retaining, insulator & lead

1шт.

15

A24773

INSULATOR

- spring clamp & lead

1шт.

16

A24772

HARNESS

LEAD ASSY. - primary wire

1шт.

17

A24775

SCREW,0.138"-32 x 1/32"

- spring clamp, #6-32 x 5/8" hex.

1шт.

18

195-506

WASHER,#6

- flat #6

1шт.

19

A24756

RING - snap, cam retaining (See ref. 40)

1шт.

20

A24762

PLATE - cam & stop

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - cam (Order ref. 40)

1шт.

22

A24778

SPRING KIT

SPRING SET - governor weight (Set of 2)

1шт.

23

A24754

WEIGHT - governor

2шт.

24

A24768

DRIVE SHAFT

SHAFT - distributor drive

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - drive, shaft, upper (Order ref. 39 or 40)

1шт.

26

NSS

NOT SOLD SEPARAT

BASE ASSY. - distributor (Order A24508)

1шт.

27

A24752

WASHER

- drive shaft, lower (Order ref. 39 or 40)

1шт.

28

NSS

NOT SOLD SEPARAT

BEARING - needle (Order ref. 40)

1шт.

29

A24781

HOUSING ASSY. - tach. drive (w/bushing)

1шт.

30

NSS

NOT SOLD SEPARAT

WASHER - thrust, tach. drive shaft (Order ref. 40)

1шт.

31

A24761

SHAFT

- tach. drive, w/gear

1шт.

32

A40329

SPRING

CLAMP ASSY. - distributor cap

2шт.

33

A24779

SCREW - plate & clamp, #8-32 x 15/16" rd. hd.

2шт.

34

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2шт.

35

219-6

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, 1/4"-28 straight

1шт.

36

NSS

NOT SOLD SEPARAT

BEARING - housing (Bronze) (Order ref. 40)

1шт.

37

138-60

LOCK PIN,1/8" x 15/16", Slotted

PIN, , Gear 1/8" x 15/16", Slotted

1шт.

38

NSS

NOT SOLD SEPARAT

GEAR - drive shaft (Order ref. 39)

1шт.

39

A40332

GEAR

REPAIR KIT - gear and washer

1шт.

40

A40331

BEARING

REPAIR KIT - thrust washer & bearing

1шт.

41

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" RING - distributor mounting (1-1/8 x 1-3/8 x 1/8")

1шт.

42

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Distributor clamp Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

43

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - 3/8" int./ext. Shakeproof

2шт.

44

95-6

WASHER,3/8"

- (7/16 x 1 x 5/64")

2шт.
