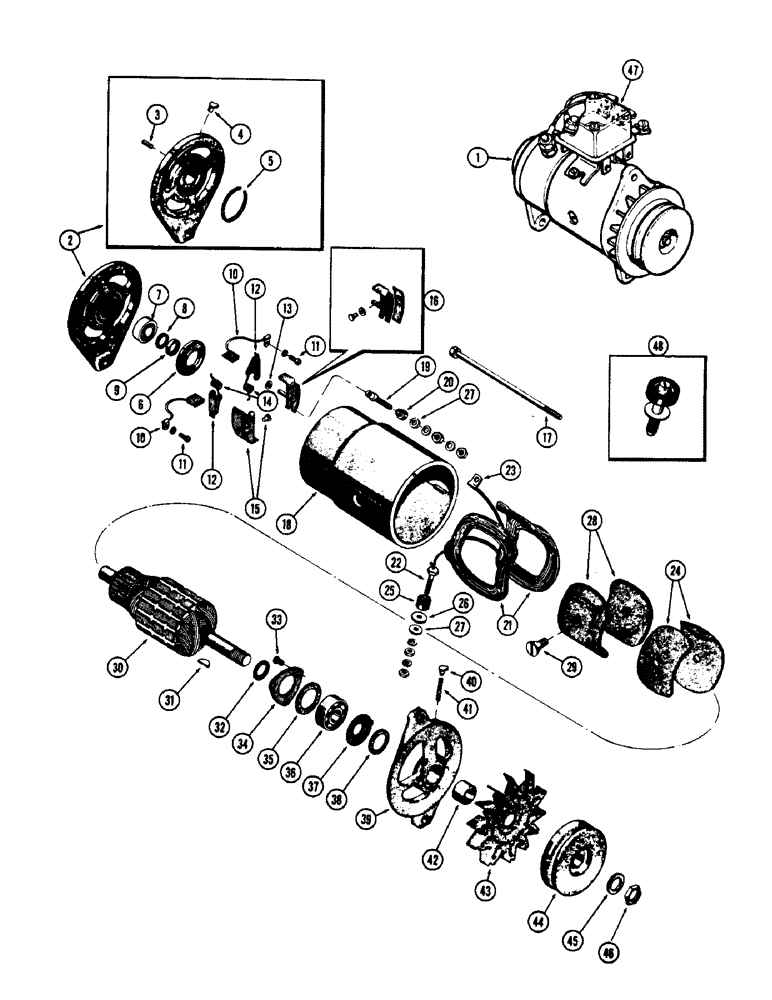

Запчасти Case IH 1060 (434) - GENERATOR, (301) DIESEL AND (284) SPARK IGNITION ENGINE (55) - ELECTRICAL SYSTEMS

1

A34126

GENERATOR ASSY. - (Delco-Remy #1100445)

1шт.

1

104017A1R

REMAN-GENERATOR

Generator

1шт.

1

104017A1C

CORE-GENERATOR

Return Number

1шт.

2

A25413

HOUSING

HOUSING ASSY. - comm. end

1шт.

3

NSS

NOT SOLD SEPARAT

PIN - dowel, comm. end

1шт.

4

NSS

NOT SOLD SEPARAT

OILER - commutator end

1шт.

5

NSS

NOT SOLD SEPARAT

WICK - oil, commutator end

1шт.

6

NSS

NOT SOLD SEPARAT

RETAINER - wick

1шт.

7

A25461

BALL BEARING,0.6693" ID x 1.5748" OD x 0.4724"

BEARING - ball, comm. end

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - felt, comm. end

1шт.

9

NSS

NOT SOLD SEPARAT

CUP - felt retainer

1шт.

10

R4286

BRUSH, COMMUTATOR

BRUSH BRUSH - main, generator

2шт.

11

NSS

NOT SOLD SEPARAT

SCREW - brush lead

2шт.

12

R15090

ARM

ARM - main brush

2шт.

13

NSS

NOT SOLD SEPARAT

WASHER - space, brush arm

2шт.

14

R16161

VALVE SPRING

SPRING - main brush

2шт.

15

A40703

NOZZLE HOLDER

HOLDER - ground brush

1шт.

16

A40704

NOZZLE HOLDER

HOLDER - insulated brush

1шт.

17

A40129

BOLT

BOLT - thru, generator

2шт.

18

NSS

NOT SOLD SEPARAT

BODY - generator (Order A34126)

1шт.

19

A40701

STUD

STUD - terminal "A"

1шт.

20

R16147

BUSHING

BUSHING - insulating, term. "A"

1шт.

21

R16149

COIL ASSY.

COIL ASSY. - field

1шт.

22

NSS

NOT SOLD SEPARAT

STUD - term. "F", field coil (Order ref. 48)

1шт.

23

NSS

NOT SOLD SEPARAT

CLIP -, Serial Range: term.-brush

2шт.

24

R16152

INSULATOR

INSULATOR - field coil

2шт.

25

A40702

STUD

BUSHING - term. "F" insulator

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER - insulating, term. stud

1шт.

27

NSS

NOT SOLD SEPARAT

WASHER - plain, term. stud

2шт.

28

A40700

SPARE PART SHOE - generator pole

2шт.

29

NSS

NOT SOLD SEPARAT

SCREW - shoe pole

2шт.

30

A40377

ARMATURE

ARMATURE ASSY.

1шт.

31

126-111

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, , Drive end #5, 1/8" x 5/8", HT

1шт.

32

NSS

NOT SOLD SEPARAT

WASHER - spacer, drive hsg., inner

1шт.

33

NSS

NOT SOLD SEPARAT

SCREW - retainer plate

3шт.

34

R15101

PLATE

PLATE - retainer, brg., drive hsg.

1шт.

35

R16170

GASKET

GASKET - brg. retainer plate

1шт.

36

G10623

BALL BEARING

BEARING - ball, drive hsg.

1шт.

37

NSS

NOT SOLD SEPARAT

PLATE - retainer, felt washer

1шт.

38

NSS

NOT SOLD SEPARAT

WASHER - felt, drive housing

1шт.

39

A25442

HOUSING

HOUSING ASSY. - drive end

1шт.

40

NSS

NOT SOLD SEPARAT

OILER - housing

1шт.

41

NSS

NOT SOLD SEPARAT

WICK - oil, housing

1шт.

42

R16166

BUSHING

COLLAR - spacer, drive hsg., inner

1шт.

43

A25449

FAN

FAN - vent, drive end

1шт.

44

A25452

SPARE PART PULLEY - drive

1шт.

45

R16171

SPRING WASHER

WASHER - lock, shaft nut

1шт.

46

A25546

NUT

NUT - armature drive end

1шт.

47

A20792

REGULATOR

REGULATOR ASSY. - voltage

1шт.

48

A40702

STUD

STUD & TERMINAL ASSY. - field coil

1шт.
