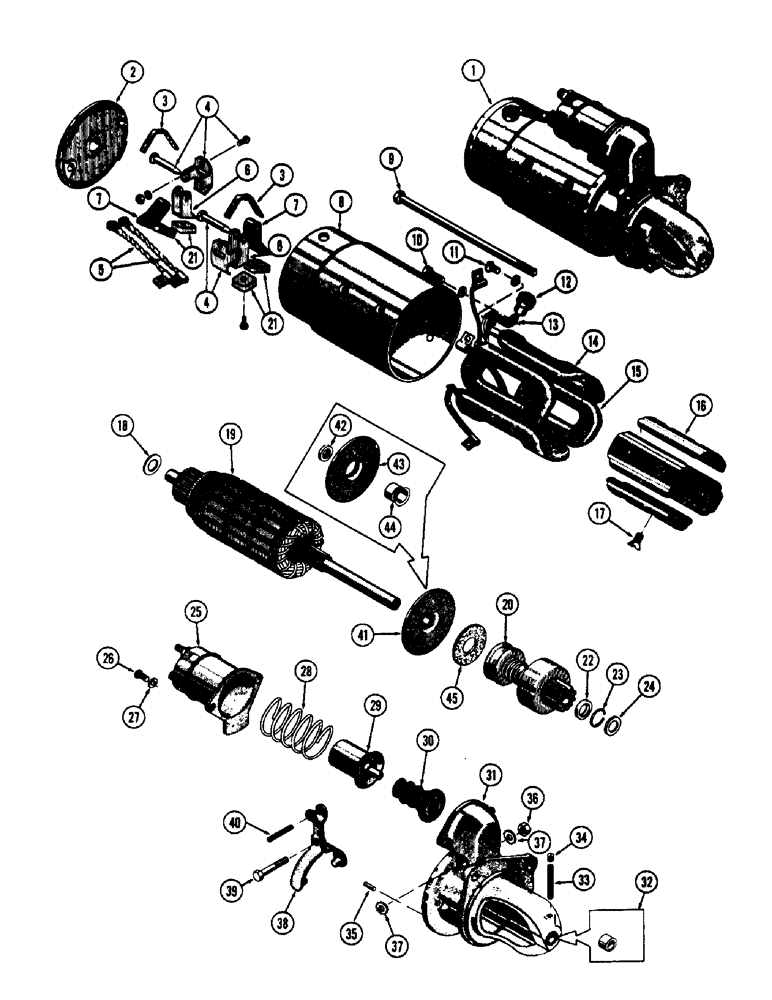

Запчасти Case IH 1060 (432) - A20873 STARTER, (284) SPARK IGNITION ENGINE (55) - ELECTRICAL SYSTEMS

1

A20873

MOTOR ASSY. - starter (Delco-Remy #1107877) (Used prior to serial no. 8314293)

1шт.

2

A25302

FUNNEL

FRAME ASSY. - end commutator

1шт.

3

A25359

SPRING

- brush

2шт.

4

A25379

KIT

HOLDER KIT - brush, replacement

2шт.

5

A25363

ELECTRICAL WIRE

LEAD - ground, brush

2шт.

6

A40217

HOLDER

- ground

2шт.

7

R15027

HOLDER

- insulated

2шт.

8

NSS

NOT SOLD SEPARAT

BODY - starter (Order A20873)

1шт.

9

A25375

X

BOLT - thru, starter

2шт.

10

NSS

NOT SOLD SEPARAT

BOLT - connector

1шт.

11

NSS

NOT SOLD SEPARAT

SCREW -, Serial Range: connector-coil

1шт.

12

NSS

NOT SOLD SEPARAT

GROMMET - field frame

1шт.

13

A25369

CONNECTOR - starter switch

1шт.

14

A25317

COIL

ASSY. - field

1шт.

15

A25404

SHUNT - coil

2шт.

16

A25390

SHOE - pole

4шт.

17

NSS

NOT SOLD SEPARAT

SCREW - pole shoe

4шт.

18

NSS

NOT SOLD SEPARAT

WASHER - spacer

1шт.

19

A25314

ARMATURE ASSY. - starter

1шт.

20

B53941

X

DRIVE ASSY. - starter

1шт.

21

A20893

BRUSH

- starter

4шт.

22

R15049

COLLAR

- pinion stop

1шт.

23

R15048

RING

- retainer, pinion stop

1шт.

24

A25385

WASHER

COLLAR - thrust, pinion stop

1шт.

25

G44891

SOLENOID

SWITCH ASSY. - starter

1шт.

26

NSS

NOT SOLD SEPARAT

BOLT - switch, drive housing

2шт.

27

NSS

NOT SOLD SEPARAT

WASHER - lock, switch attach. bolt

2шт.

28

A40221

SPRING

- plunger

1шт.

29

A40218

PLUNGER

- solenoid switch

1шт.

30

A25410

BOOT

- solenoid switch

1шт.

31

A25349

HOUSING ASSY. - drive

1шт.

32

A25389

BUSHING

- drive housing

1шт.

33

NSS

NOT SOLD SEPARAT

WICK - oil, drive housing

1шт.

34

NSS

NOT SOLD SEPARAT

PLUG - pipe, drive housing

1шт.

35

NSS

NOT SOLD SEPARAT

PIN - dowel, drive housing

1шт.

36

NSS

NOT SOLD SEPARAT

NUT - shift stud

1шт.

37

NSS

NOT SOLD SEPARAT

WASHER - lock, shifter stud

2шт.

38

A25397

LEVER

- shifter

1шт.

39

A25401

STUD - shifter lever

1шт.

40

138-93

LOCK PIN,3/16" x 13/16", Slotted

Pin, , shift lever 3/16" x 13/16", Slotted

1шт.

41

A25549

PLATE

ASSY. - center bearing

1шт.

42

A25409

SEAL

SEAL - oil, brg. plate

1шт.

43

NSS

NOT SOLD SEPARAT

PLATE - center bearing

1шт.

44

NSS

NOT SOLD SEPARAT

BUSHING - brg. plate

1шт.

45

NSS

NOT SOLD SEPARAT

WASHER - brg. plate & drive assy.

1шт.
