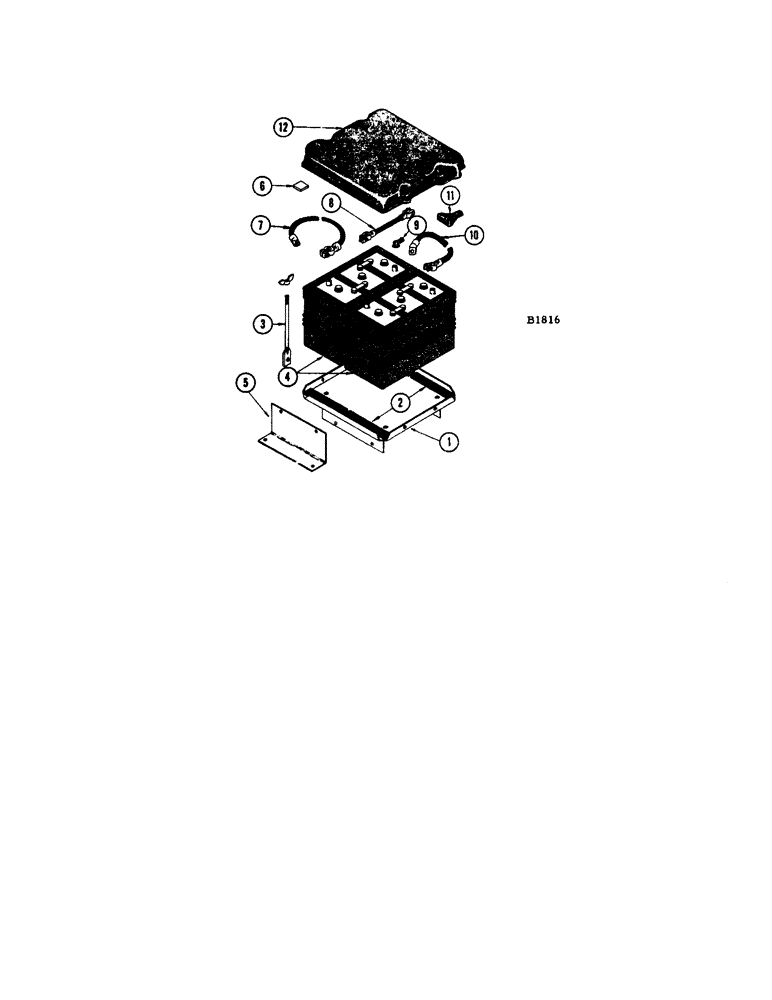

Запчасти Case IH 1060 (246[1]) - BATTERY TRAY, DIESEL (55) - ELECTRICAL SYSTEMS

1

F86586

TRAY - battery, with hold down bolts and rubber pads

1шт.

2

A7390

PAD - (Rubber) battery

4шт.

3

A7368

ROD - hold down

4шт.

RIVET - 5/16" x 5/8" W.B. (49-510)

4шт.

NUT - 3/8" N.C. wing (129-410)

4шт.

BOLT - 5/16" x 3/4" N.F. hex. (14-512) nut (25-115)

3шт.

4

A8325

BATTERY - (6 volt DC) For repairs use M20396

2шт.

M20396

BATTERY - (6 volt DC)

2шт.

5

F12451

BRACKET - battery support

1шт.

BOLT - 5/16" x 5/8" N.F. hex. (14-510) nut (25-115)

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (14-412) nut (25-114)

2шт.

6

A27203

WASHER

PAD - rubber, for ref. 12

4шт.

7

A7441

CABLE

-, Serial Range: battery-ground

1шт.

8

A7440

CABLE

-, Serial Range: battery-battery

1шт.

9

A21753

CAP

NIPPLE - (Rubber) Positive terminal

1шт.

10

A21363

CABLE

-, Serial Range: battery-starter

1шт.

11

A27072

COVER

- positive terminal

2шт.

12

A7382

COVER - battery

1шт.
