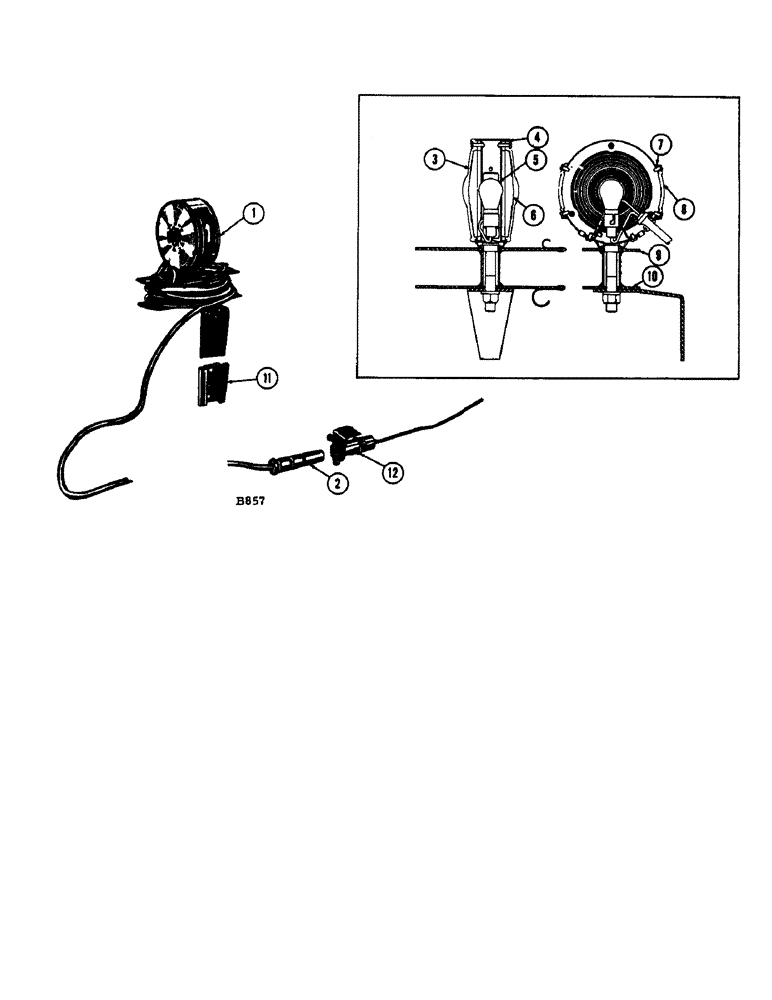

Запчасти Case IH 1060 (244[1]) - WARNING LAMP ATTACHMENT (55) - ELECTRICAL SYSTEMS

A11066M

ATTACHMENT - warning lamp

1шт.

1

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - warning 12 volt (Order A11066M)

1шт.

2

B50259

PLUG

- lamp

1шт.

3

B50337

LENS

- amber

1шт.

SCREW - #6 x 1/2" rhd. (173-203)

3шт.

4

B50317

GASKET - lens

2шт.

5

33685

BULB - lamp, 21 CP (6 volt) Mfg. #1129

1шт.

33686

BULB

- lamp, 21 CP (12 volt) Mfg. #1141

1шт.

6

B53962

LENS

- red

1шт.

SCREW - #6 x 1/2" rhd. (173-203)

3шт.

7

B50329

GASKET - outlook lens

2шт.

8

B50328

LENS - outlook

2шт.

SCREW - #6 x 5/16" pan hd. (182-43)

4шт.

9

B50330

SPOOL ASSEMBLY

1шт.

10

B50331

BRACKET - mounting

1шт.

NUT - 7/16" N.F. hex. (25-117) L.W. (92-7)

1шт.

11

A8179

SOCKET

BRACKET - warning lamp socket

2шт.

BOLT - 5/16" x 1" rhd. sq. nk. (111-203) nut (192-102)

2шт.

BOLT - 3/8" x 2" rhd. sq. nk. (111-326) nut (129-103)

1шт.

WASHER - 3/8" plain (195-525) L.W. (192-21)

1шт.

12

A8170

SOCKET

- electrical outlet

1шт.

SCREW - #10-32 x 3/4" N.F. mach. (173-240) nut (129-67)

2шт.

A27213

CONNECTOR - two wire line (Not shown)

1шт.

A27039

CLIP - (11/32" dia.) Wire (Not shown)

4шт.

A27033

CLIP - (5/16" dia.) Wire (Not shown)

1шт.

F8875

WIRE - light switch (Current side) To outlet socket, Not shown

1шт.
