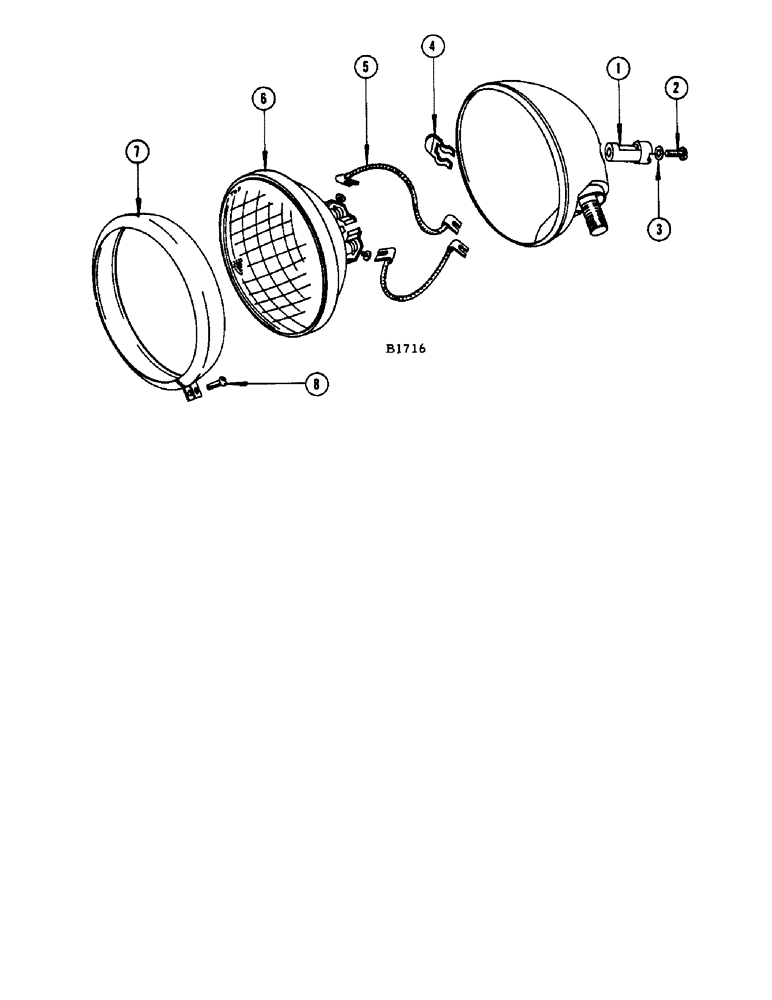

Запчасти Case IH 1060 (242) - F82077 HEAD LAMP (55) - ELECTRICAL SYSTEMS

F82077

LAMP BASE

LAMP - head

2шт.

1

B50293

TERMINAL CONNECTOR

TERMINAL ASSEMBLY - (Consists of 1-B50269, 1-B50269, 1-B922786, 2-B50212 and 2-B50216)

1шт.

2

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

- terminal

2шт.

3

193-4

LOCK WASHER,Ext Tooth, 0.145" ID x 0.318" OD, STL, PLN

WASHER, LOCK, , Terminal screw Ext Tooth, #6

2шт.

4

10927

SPRING

- terminal post

1шт.

5

A25252

WIRING ASSEMBLY

1шт.

6

A24572

LAMP

SEALED BEAM ASSEMBLY - (12 volt)

1шт.

7

B50255

MOLDING

ASSEMBLY

1шт.

8

B50230

SCREW - molding

1шт.
