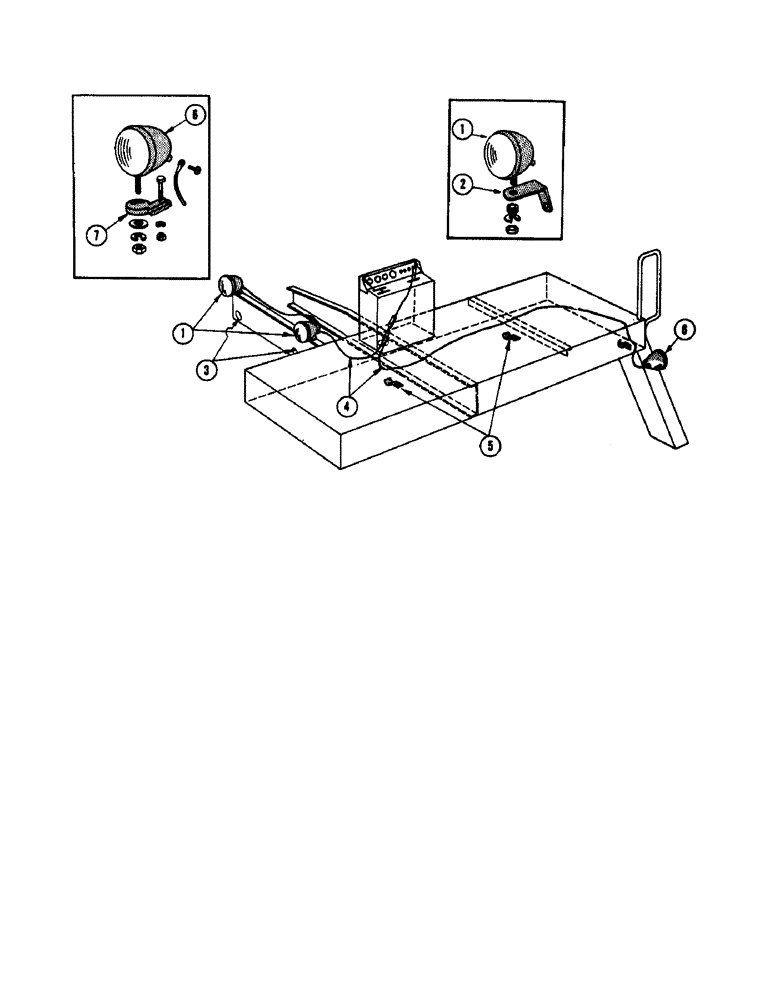

Запчасти Case IH 1060 (240[1]) - LIGHTING ATTACHMENT, SERIAL NUMBER 8311400 AND AFTER (55) - ELECTRICAL SYSTEMS

1

F82077

LAMP BASE

LAMP - head (12-16 volt)

2шт.

NUT - 1/2" N.C. hex. (129-105) L.W. (192-23) and plain washer (195-106)

2шт.

2

F11398

BRACKET - head lamp mounting

2шт.

BOLT - 1/4" x 3/4" N.F. hex. (114-5) nut (129-121)

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

1шт.

WASHER - 1/4" plain (195-518)

1шт.

3

O3692N

GROMMET - rubber, head lamp

2шт.

4

F14025

WIRE - (Pink to head lamps and dark blue to tail lamp)

1шт.

223-9

FUSE,9 Amp, Type SFE

- 9 amp.

1шт.

5

A27033

CLIP - wire, head and tail lamp

2шт.

SCREW - 1/4" x 1/2" N.C. mach. (173-201) nut (129-101)

2шт.

6

A20965

LAMP BASE

LAMP - combination, flood and tail

1шт.

NUT - 1/2" N.C. hex. (129-105) L.W. (192-23) and plain wshr. (195-106)

1шт.

7

A34046

BRACKET

- tail lamp

1шт.

BOLT - 3/8" x 1-1/4" N.F. hex. (114-201) nut (129-123)

1шт.

F14419

WIRE - (To be used with F14025 for combines, Serial Range: prior-#8311400)

1шт.
