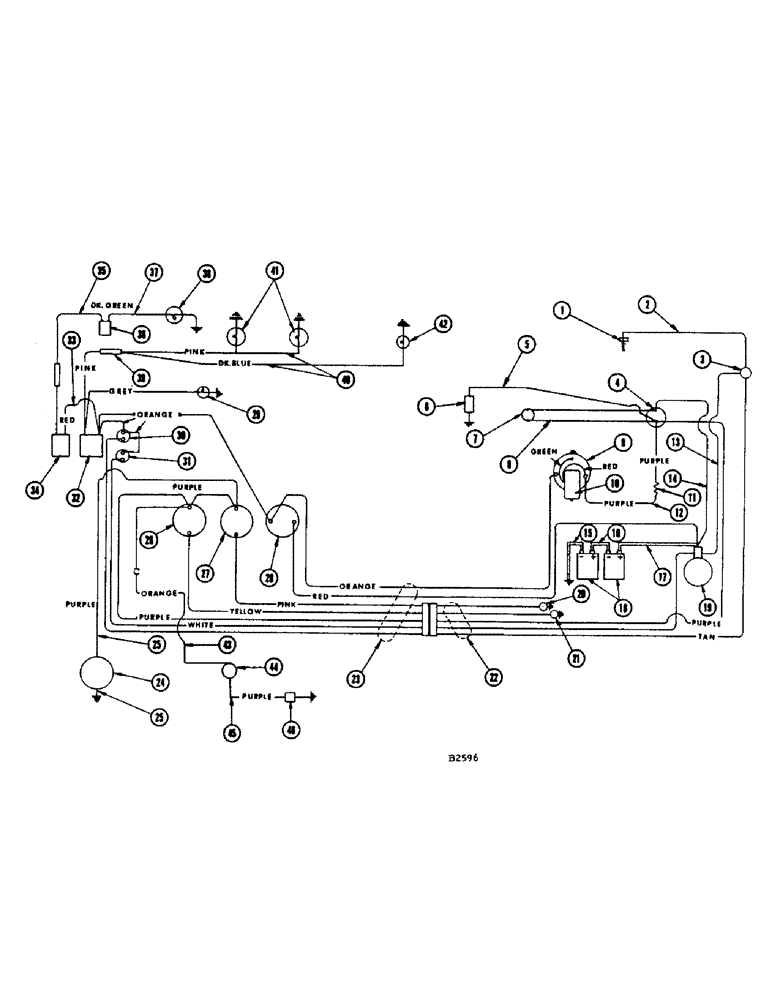

Запчасти Case IH 1060 (238) - ELECTRICAL SYSTEM, 301 DIESEL, SERIAL NUMBER 8311400 AND AFTER (55) - ELECTRICAL SYSTEMS

1

A20964

HEATER ASSY.

HEATER - manifold

1шт.

2

F10142

CABLE

- heater solenoid to manifold heater

1шт.

3

F10127

SOLENOID - heater

1шт.

4

A27312

SWITCH

- pressure

1шт.

5

F14438

CABLE - fuel pump to pressure switch

1шт.

6

AL11122

PUMP - fuel, electric

1шт.

7

A30858

SWITCH

STARTING SWITCH - fuel pump, push button

1шт.

8

O10226AB

WIRE - pressure switch to pump switch

2шт.

9

A41090

ALTERNATOR

- less pulley and regulator

1шт.

10

A41083

REGULATOR - voltage

1шт.

11

F22316

RESISTOR,75 Ohms 0.2 Amps DC

1шт.

12

F14518

WIRE - field resistor

1шт.

13

F10141

CABLE - starter solenoid to heater solenoid (32")

1шт.

14

F5640

CABLE - pressure, Serial Range: switch-starter

1шт.

15

A7441

CABLE

- battery to ground (21")

1шт.

16

A7440

CABLE

- battery to battery (8-7/8")

1шт.

17

A21363

CABLE

- battery to starter solenoid

1шт.

18

A8325

BATTERY - (6 volt D.C.) For repairs use M20396

2шт.

M20396

BATTERY - (6 volt D.C.)

2шт.

19

A21281

STARTING MOTOR

MOTOR - starting (12 volt) Delco-Remy #1113634

1шт.

20

F12033

X

UNIT - sending, temperature

1шт.

21

F12034

SENDER UNIT

UNIT - sending, oil pressure (60#)

1шт.

22

F14043

HARNESS - electric cable engine end

1шт.

PINK - temperature sending

1шт.

YELLOW - oil pressure sending

1шт.

PURPLE - pressure switch and alternator to pressure switch

1шт.

WHITE - starter solenoid

1шт.

TAN - heater solenoid

1шт.

23

F14045

HARNESS - electric cable, instrument panel end

1шт.

ORANGE - ammeter to alt., light switch to ammeter and heater switch, heater switch to starter switch

1шт.

RED - ammeter to starter solenoid

1шт.

PINK - temperature gauge

1шт.

YELLOW - oil pressure gauge

1шт.

PURPLE - oil press. ga. and oil press. ga. to temp. ga.

1шт.

WHITE - starter switch

1шт.

TAN - heater switch

1шт.

24

D39286

GAUGE

KIT - engine hour meter

1шт.

25

D39285

ELECTRICAL WIRE

WIRE - lead (36" long)

2шт.

26

F13116

SCREW

GAUGE - oil pressure

1шт.

27

F13117

GAUGE

- temperature

1шт.

28

F13118

AMMETER

1шт.

29

A24087

LAMP BASE

LIGHT - instrument panel, with wire

1шт.

A22349

BULB

- (#1445)

1шт.

30

A30858

SWITCH

- heater

1шт.

31

A30858

SWITCH

- starter

1шт.

32

A10942

KIT

SWITCH - light

1шт.

33

F87891

WIRE - light switch to flasher switch

1шт.

34

F91851

SWITCH - flasher

1шт.

35

F87890

WIRE - flasher to flasher switch (Includes fuse 223-9)

1шт.

36

A34867

FLASHER UNIT

FLASHER

1шт.

37

F22378

WIRE - flasher to flasher lamp

1шт.

38

A34853

LAMP

- flasher

1шт.

39

223-9

FUSE,9 Amp, Type SFE

- 9 amp. (See lighting attachment)

1шт.

40

F14025

WIRE - (See lighting attachment)

1шт.

41

F82077

LAMP BASE

LAMP - head (See lighting attachment)

2шт.

42

A20965

LAMP BASE

LAMP - combination flood and tail (See lighting attachment)

1шт.

43

F88356

WIRE - horn to oil press. ga. (Includes fuse 223-9)

1шт.

44

F88365

HORN

- (12 volt) Warning device

1шт.

45

F14832

WIRE -, Serial Range: horn-switch

1шт.

46

F14830

SWITCH - (12 volt) Horn

1шт.
