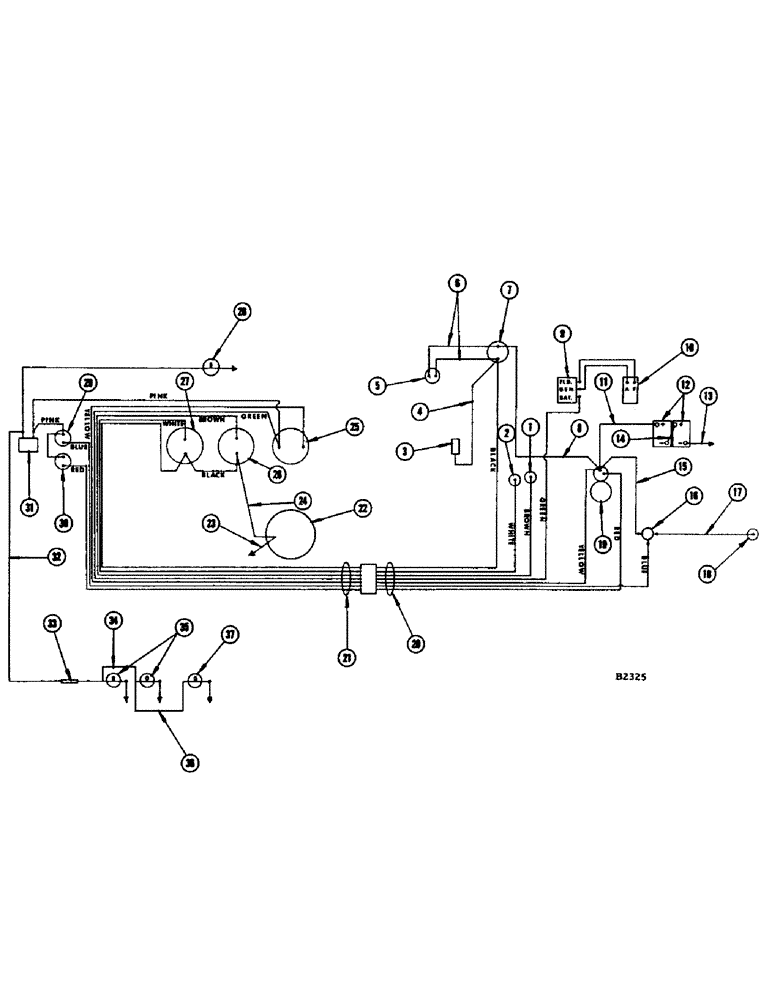

Запчасти Case IH 1060 (236) - ELECTRICAL SYSTEM, CASE A301D-F DIESEL ENGINE, BEFORE SERIAL NUMBER 8311400 (55) - ELECTRICAL SYSTEMS

1

F12033

X

UNIT - sending, temperature

1шт.

2

F12034

SENDER UNIT

UNIT - sending, oil pressure (60#)

1шт.

BUSHING - 3/8" x 1/8" NPT brass (#110B) (217-41)

1шт.

3

L11122

FUEL PUMP

PUMP - fuel, electric (Replaces F86588)

1шт.

4

F14438

WIRE - fuel pump to pressure switch (Replaces F12860)

1шт.

5

A30858

SWITCH

STARTING SWITCH - fuel pump, push button type

1шт.

6

O10226AB

WIRE - (28") Pressure switch to pump switch

2шт.

7

A27312

SWITCH

- pressure

1шт.

8

F5640

CABLE - pressure, Serial Range: switch-starter

1шт.

9

A20792

REGULATOR

- voltage

1шт.

10

A34126

GENERATOR ASSEMBLY - 12 volt (See P. 426 and 434)

1шт.

11

A21363

CABLE

- battery to starting motor solenoid

1шт.

12

A8325

BATTERY - (6 volt D.C.) For repairs use M20396

2шт.

M20396

BATTERY - (6 volt D.C.)

2шт.

13

A7441

CABLE

- battery to ground (21")

1шт.

14

A7440

CABLE

- battery to battery (8-7/8")

1шт.

15

F10141

CABLE - starter solenoid to heater solenoid (32")

1шт.

16

F10127

SOLENOID - heater

1шт.

17

F10142

CABLE

- heater solenoid to manifold heater (18")

1шт.

18

A20964

HEATER ASSY.

HEATER - manifold

1шт.

19

A21281

STARTING MOTOR

- (12 volt) Delco-Remy #1113634 diesel

1шт.

20

F13071

SCREW

HARNESS - electric cable engine end

1шт.

RED WIRE - starter solenoid

1шт.

BLUE WIRE - heater solenoid

1шт.

YELLOW WIRE - starter solenoid

1шт.

GREEN WIRE - voltage regulator

1шт.

BROWN WIRE - temperature sending unit

1шт.

WHITE WIRE - oil pressure sending unit

1шт.

BLACK WIRE - pressure switch

1шт.

21

F13120

HARNESS - electric cable instrument panel end

1шт.

RED WIRE - start switch

1шт.

BLUE WIRE - heater switch

1шт.

YELLOW WIRE - ammeter

1шт.

GREEN WIRE - ammeter

1шт.

BROWN WIRE - temperature gauge

1шт.

WHITE WIRE - oil pressure gauge

1шт.

BLACK WIRE - oil gauge, oil pressure gauge to temperature gauge

1шт.

PINK WIRE - ammeter to light switch, light switch to heater switch and heater switch to starter switch

1шт.

22

D39286

GAUGE

KIT - engine hour meter

1шт.

23

D39285

ELECTRICAL WIRE

WIRE - lead (36" long) Same as ref. 24

1шт.

24

D39285

ELECTRICAL WIRE

WIRE - (36" long) Same as ref. 23

1шт.

25

F13118

AMMETER

1шт.

26

F13117

GAUGE

- temperature

1шт.

27

F13116

SCREW

GAUGE - oil pressure

1шт.

28

A24087

LAMP BASE

LIGHT - instrument panel, with wire

1шт.

A22349

BULB

- (#1445)

1шт.

29

A30858

SWITCH

- heater

1шт.

30

A30858

SWITCH

- starter

1шт.

31

A10942

KIT

SWITCH - light

1шт.

32

F11396

WIRE - light switch to outlet socket (57-1/2") See lighting attachment

1шт.

33

223-9

FUSE,9 Amp, Type SFE

- 9 amp.

1шт.

34

F11397

CABLE - outlet socket to lamps (56") See lighting attachment

1шт.

35

F82077

LAMP BASE

HEAD LAMP - (12-16 volt) See lighting attachment

2шт.

36

F12193

WIRE - head lamp to tail lamp (See lighting attachment)

1шт.

37

A20965

LAMP BASE

LAMP - combination flood and tail (See lighting attachment)

1шт.
