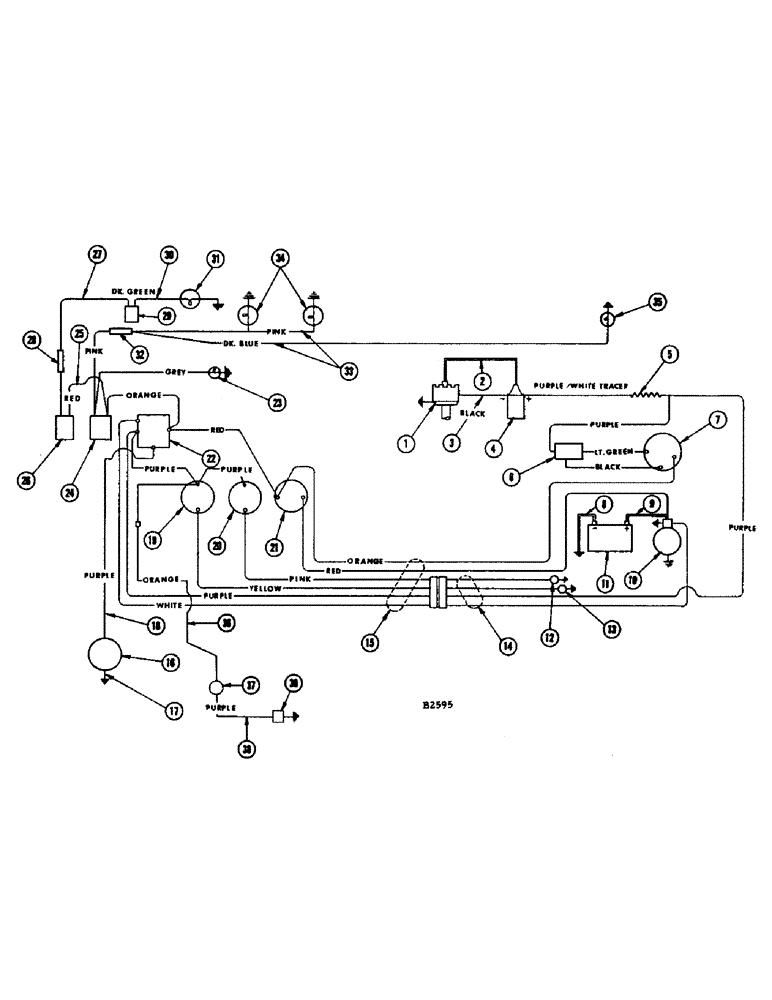

Запчасти Case IH 1060 (230) - ELECTRICAL SYSTEM, CHRYSLER LH-318, SERIAL NUMBER 8311400 AND AFTER (55) - ELECTRICAL SYSTEMS

1

F87908

DISTRIBUTOR - ignition

1шт.

2

F87910

CABLE - ignition coil, secondary

1шт.

3

F86922

CABLE - ignition coil, primary

1шт.

4

F86920

COIL - ignition

1шт.

5

F86921

RESISTOR - ignition coil, pkg.

1шт.

6

F12687

REGULATOR

- voltage

1шт.

7

F88070

ALTERNATOR

- w/pulley assembly

1шт.

8

A7441

CABLE

-, Serial Range: battery-ground

1шт.

9

A20634

CABLE -, Serial Range: battery-starter

1шт.

10

F86743

MOTOR - starter

1шт.

11

F14897

BATTERY

- 12 volt DC (For repairs use M20389)

1шт.

M20389

X

BATTERY - 12 volt DC

1шт.

12

F13156

SENDER UNIT

UNIT - sending, temperature

1шт.

13

F12034

SENDER UNIT

UNIT - sending, oil temperature

1шт.

14

F13860

HARNESS - electric cable, engine end

1шт.

PINK - temperature sending unit

1шт.

YELLOW - oil sending unit

1шт.

PURPLE - resistor to voltage regulator

1шт.

WHITE - starter solenoid

1шт.

BLACK - voltage regulator to alternator (Ground)

1шт.

LIGHT GREEN - voltage regulator to alternator (Field)

1шт.

PURPLE W/WHITE TRACER -, Serial Range: resistor-coil

1шт.

F13835

CLIP - for F13860 harness

1шт.

15

F13849

HARNESS - electric cable, instrument panel end

1шт.

ORANGE - ammeter to alternator, light switch to ignition switch

1шт.

RED - ammeter to starter, ignition, Serial Range: switch-ammeter

1шт.

PINK - temperature gauge

1шт.

YELLOW - oil gauge

1шт.

PURPLE - ignition switch, ignition switch to oil gauge, oil gauge to temperature gauge

1шт.

WHITE - starter switch

1шт.

16

D39286

GAUGE

KIT - engine hour meter

1шт.

17

D39285

ELECTRICAL WIRE

WIRE - lead (36" long) Same as ref. 18

1шт.

18

D39285

ELECTRICAL WIRE

WIRE - lead (36" long) Same as ref. 17

1шт.

19

F13116

SCREW

GAUGE - oil pressure

1шт.

20

F13117

GAUGE

- temperature

1шт.

21

F13118

AMMETER

1шт.

22

F91864

SWITCH

- ignition and starter

1шт.

23

A24087

LAMP BASE

LIGHT - instrument panel, with wire

1шт.

A22349

BULB

- (#1445)

1шт.

24

A10942

KIT

SWITCH - light

1шт.

25

F22240

WIRE - light switch to flasher switch

1шт.

26

F91851

SWITCH - flasher

1шт.

27

F87890

WIRE - flasher to flasher switch

1шт.

28

223-9

FUSE,9 Amp, Type SFE

- 9 amp.

1шт.

29

A34867

FLASHER UNIT

FLASHER

1шт.

30

F22378

WIRE - flasher to flasher light

1шт.

31

A34853

LAMP

- flasher

1шт.

32

223-9

FUSE,9 Amp, Type SFE

- 9 amp. (See lighting attachment)

1шт.

33

F14025

WIRE - (See lighting attachment)

1шт.

34

F82077

LAMP BASE

LAMP - head (12-16 volt) See lighting attachment

2шт.

35

A20965

LAMP BASE

LAMP - combination flood and tail (See lighting attachment)

1шт.

36

F88356

WIRE - horn to oil pressure gauge

1шт.

FUSE - 9 amp.

1шт.

37

F88365

HORN

- (12 volt) Warning device

1шт.

38

F14832

WIRE -, Serial Range: horn-switch

1шт.

39

F14830

SWITCH - (12 volt) Horn

1шт.
