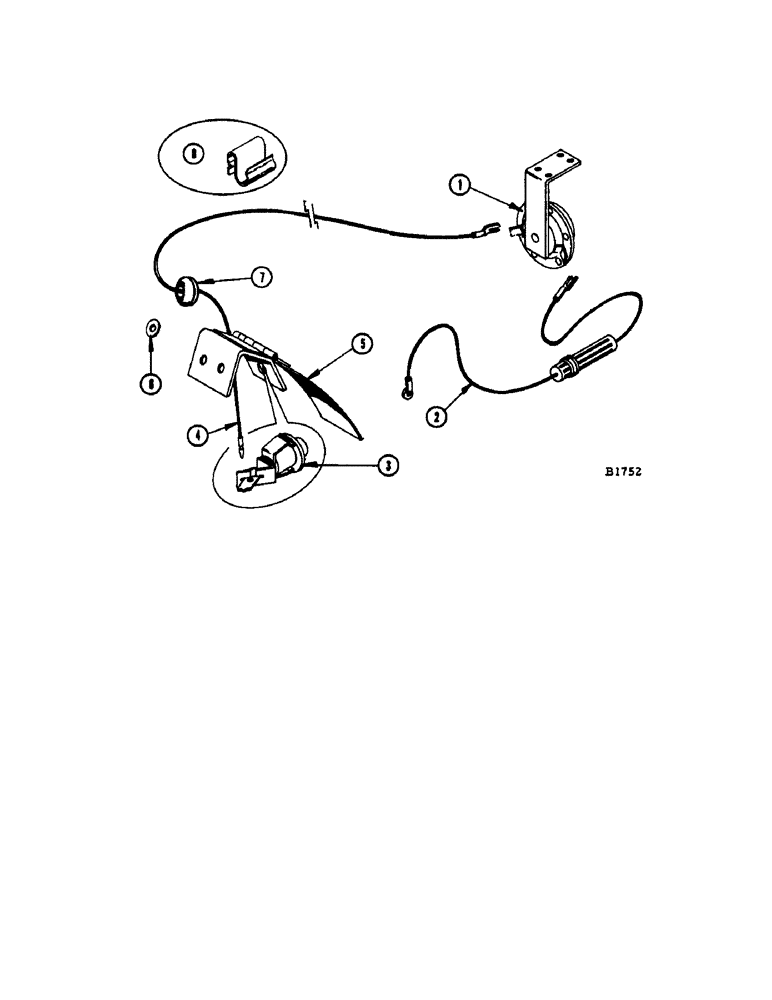

Запчасти Case IH 1060 (198[1]) - WARNING HORN ATTACHMENT (55) - ELECTRICAL SYSTEMS

1

F88365

HORN

- (12 volt) Warning device

1шт.

SCREW - #10 x 1/2" rhd. N.C. mach. (173-212) nut (129-17)

4шт.

2

F88356

WIRE - horn to oil pressure gauge

1шт.

223-9

FUSE,9 Amp, Type SFE

- 9 amp

1шт.

SCREW - #8-32 x 1/4" N.C. rhd. mach. (173-224) L.W. (192-16)

1шт.

3

F14830

SWITCH - (12 volt) Horn

1шт.

4

F14832

WIRE -, Serial Range: horn-switch

1шт.

SCREW - #8-32 x 1/4" N.C. rhd. mach. (173-224) L.W. (192-16)

1шт.

5

F88353

BRACKET - switch, with trip arm

1шт.

BOLT - 1/4" x 3/4" N.C. hex. (113-3) nut (129-101)

2шт.

6

F14831

WASHER - bracket bolt

2шт.

7

A27338

GROMMET

- rubber, for wire hole in rear hood

1шт.

8

F54095

CLIP - frame

8шт.

214-1102

CLIP

- Tinnerman (Not shown)

16шт.
