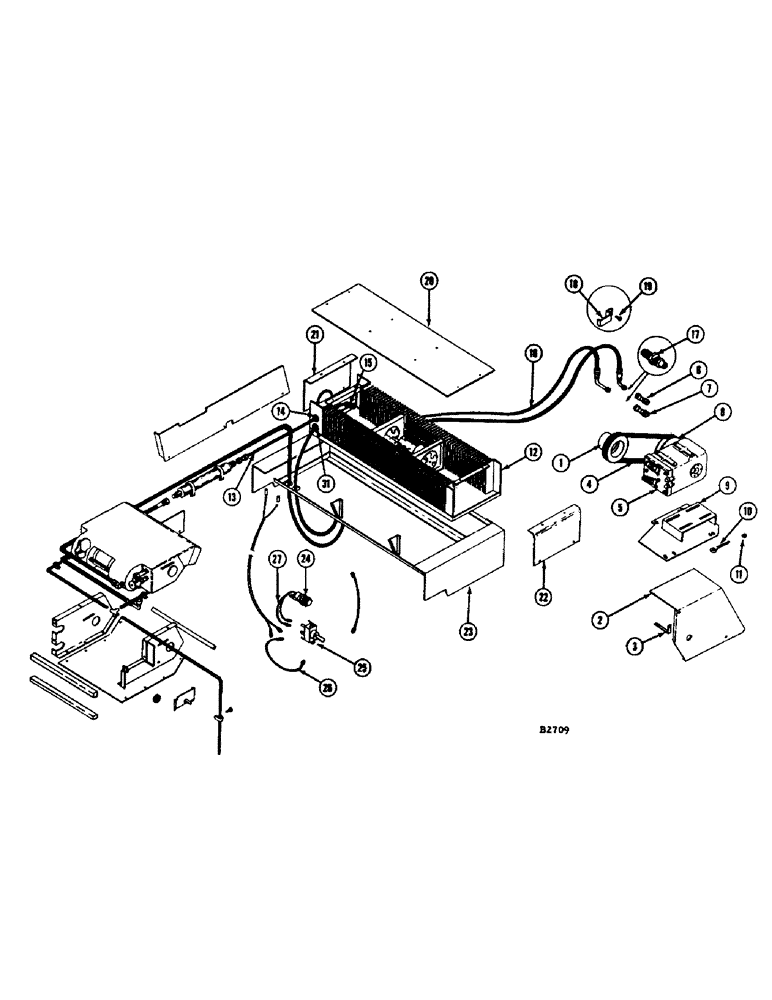

Запчасти Case IH 1060 (223A) - AIR CONDITIONER (50) - CAB CLIMATE CONTROL

1

F87932

PULLEY - compressor drive

1шт.

2

F87958

SHIELD - drive

1шт.

3

F87960

SUPPORT - shield

1шт.

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

3шт.

195-518

WASHER,1/4", SAE

1шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

3шт.

F50657

SPACER - (Before #8334601)

1шт.

114-10

BOLT,Hex, 1/4" - 28 x 2-1/4", Gr 5

- 1/4" x 2-1/4" N.F. hex.

1шт.

129-121

NUT,1/4"-28, G5

1шт.

F14856

SPACER - (#8334601 and after)

1шт.

F14903

BOLT - 3/8" x 12-1/2" (For F14856 spacer)

1шт.

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

4

F14287

BELT - compressor drive

1шт.

5

COMPRESSOR

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

6

COUPLER - female (5/8" tube)

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

7

COUPLER - female (1/2" tube)

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

195-525

WASHER,3/8", SAE

- 3/8" flat

4шт.

8

CLUTCH - 7" magnetic

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

9

F87963

BRACKET - compressor mounting

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

10

F14286

EYEBOLT - belt take-up

2шт.

11

9635082

NUT,5/16" - 18, Gr 5

4шт.

12

CONDENSER

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

13

HOSE - condenser to receiver (33")

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

14

F14499

GROMMET

2шт.

15

COUPLER - male (3/8" tube)

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

16

HOSE - compressor to condenser (150")

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

17

COUPLER - male (1/4" tube)

1шт.

Not stocked by J. I. Case Co. Order from Cummins distributor.

1шт.

111-108

CARRIAGE BOLT,Short NK, 1/4"-20 x 3/4", G2

BOLT - 1/4" x 3/4" rhd. sq. nk.

4шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

4шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

195-104

WASHER,3/8"

- flat 3/8"

4шт.

195-2012

WASHER

- 5/16" flat

4шт.

18

F17487

CLAMP - hose

3шт.

F14784

PAD - clamp

3шт.

19

187-456

SCREW - #10 x 1/2" self tap type A

1шт.

113-3

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

2шт.

20

F14288

COVER - top, condenser

1шт.

21

F14273

COVER - R.H. condenser

1шт.

22

F14272

COVER - L.H. condenser

1шт.

187-1016

SCREW,Cross Truss Hd, #8 x 5/8"

- #8 x 1/2" self tap type A

12шт.

23

F87951

MOUNT - condenser

1шт.

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

3шт.

175-402

SCREW,Sl Truss Hd, 1/4" - 20 x 5/8"

- 1/4" x 5/8" N.C. truss hd.

8шт.

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

11шт.

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

11шт.

24

F87939

LAMP - indicator

1шт.

F21950

BULB - red (Mfg. #431R)

1шт.

25

F87934

SWITCH - toggle

1шт.

26

F87938

WIRE - jumper, fuse block to switch (4")

1шт.

27

A13751

WIRE - jumper (3")

2шт.
