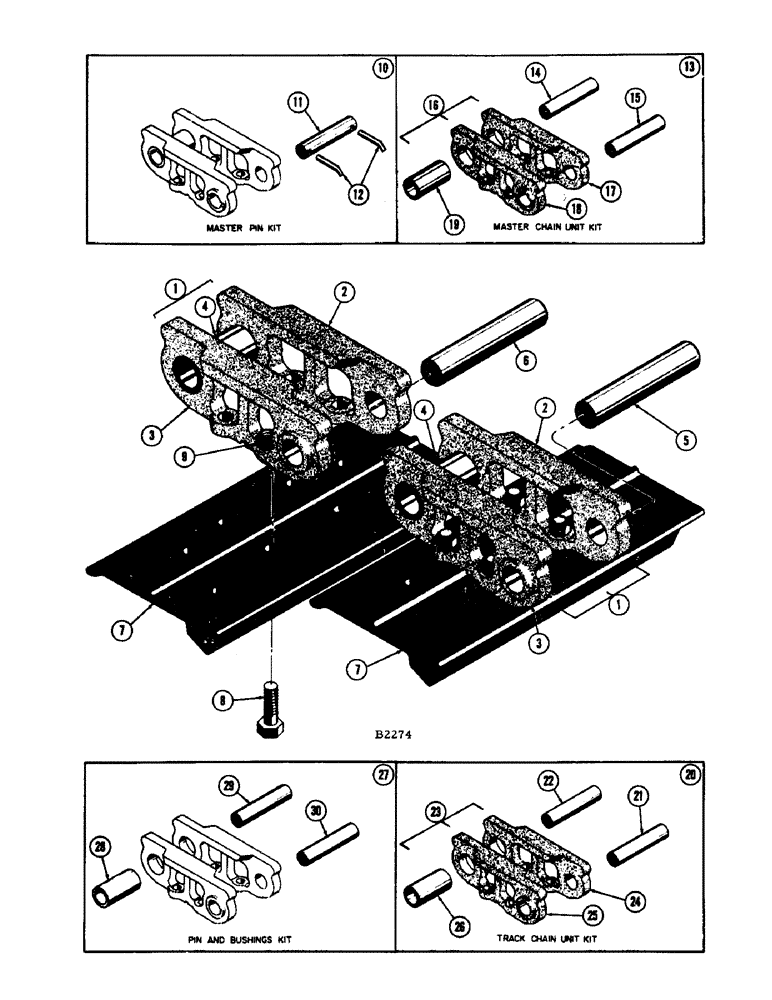

Запчасти Case IH 1060 (302) - TRACK CHAIN (48) - TRACKS & TRACK SUSPENSION
№
Артикул
Название
Примечание
Количество
5481
CHAIN
4шт.
1
34571
KIT
UNIT - track chain (See D21014)
15шт.
2
D43909
DRAG LINK
LINK - track chain, R.H. (See D21014)
1шт.
3
D43908
LINK
- track chain, L.H. (See D21014)
1шт.
5
32831
PIN
- track, standard (See 32836)
14шт.
6
D41582
AXLE PIN,25.2mm OD x 132.56mm L
PIN - master (See ref. 10, 15 and 30)
1шт.
7
D39978
GROUSER - track (20 inch)
60шт.
8
D41490
BOLT
- (7/16" x 1-1/2" N.F.) Track shoe
240шт.
9
D29712
SPECIAL NUT
- 7/16" - 20 hi
240шт.
10
D21012
PIN
KIT - master pin, (for service of old chain)
1шт.
11
NSS
NOT SOLD SEPARAT
PIN - master, kit (for service of old chain)
1шт.
12
CASCAS32995
PIN - lock, master pin, kit (for service of old chain)
2шт.
13
D21013
KIT
- track chain master unit, pin (for service of old chain)
1шт.
14
32836
PIN
- track, service (.003 oversize), master kit (for service of old chain)
1шт.
15
D41582
AXLE PIN,25.2mm OD x 132.56mm L
PIN - master (See D21015), kit (service of old chain)
1шт.
16
34571
KIT
UNIT - track chain, master pin kit (for service of old chain)
1шт.
17
D43909
DRAG LINK
LINK - track chain, R.H., master pin kit (for service of old chain)
1шт.
18
D43908
LINK
- track chain, L.H., master pin kit (for service of old chain)
1шт.
19
NLS
NO LONGER SERVICED
- track chain, master pin kit (for service of old chain)
1шт.
20
D21014
KIT
- track chain unit
1шт.
21
32831
PIN
- track standard, chain unit kit
1шт.
22
32836
PIN
- track, service (.003 oversize), chain unit kit
1шт.
23
34571
KIT
UNIT - track chain, unit kit
1шт.
24
D43909
DRAG LINK
LINK - track chain, R.H., unit kit
1шт.
25
D43908
LINK
- track chain L.H., unit kit
1шт.
27
D21015
KIT - pins and bushings
1шт.
28
NLS
NO LONGER SERVICED
- track chain, pins kit
60шт.
29
32836
PIN
- track, service (.003 oversize), bushings kit
56шт.
30
D43542
AXLE PIN
PIN - master (.003 oversize), bushings kit
4шт.
Выбрано товаров: 31
