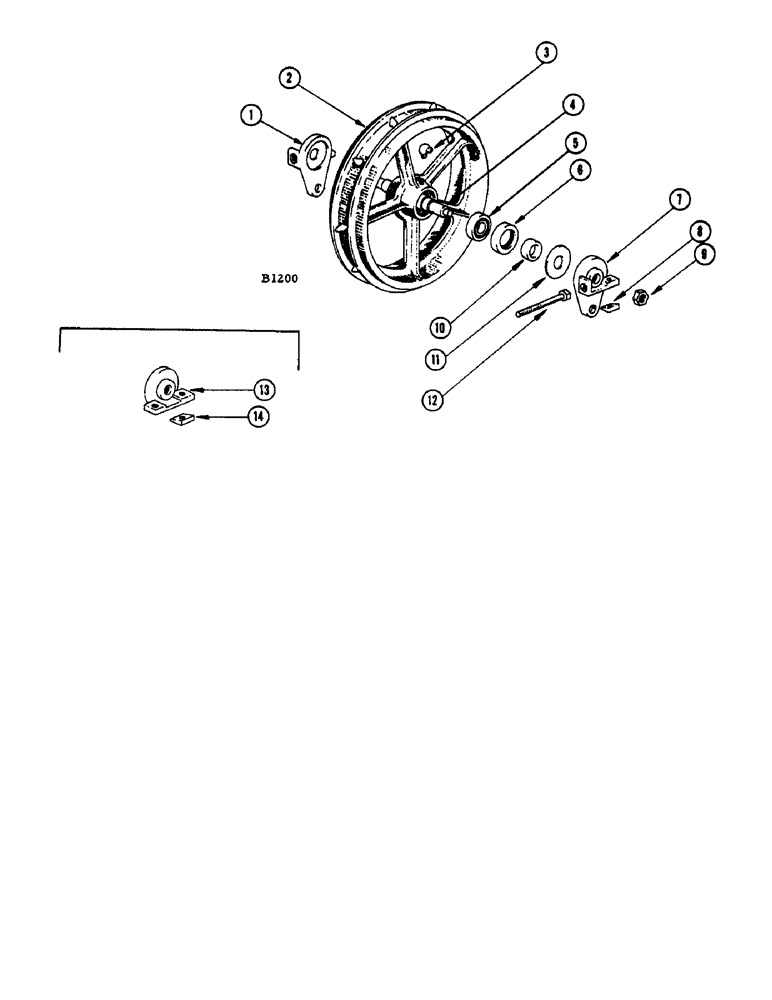

Запчасти Case IH 1060 (300) - IDLER ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

1

F1172

BRACKET - bearing, rear L.H., rear idler

2шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118)

2шт.

WASHER - 1/2" plain (195-33)

2шт.

BOLT - 1/2" x 2" N.F. hex. (14-832) nut (25-118)

2шт.

WASHER - 1-1/4" sq. bevel (195-902)

2шт.

2

D29967

WHEEL

IDLER - front and rear

4шт.

3

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - 1/4" str.

4шт.

4

32068

SHAFT

- front and rear idlers

4шт.

5

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING

8шт.

6

D29133

SPACER

8шт.

7

F1173

BRACKET - bearing, rear R.H., rear idler

2шт.

BOLT - 1/2" x 1-3/4" N.F. hex. (14-828) nut (25-118)

2шт.

WASHER - 1/2" plain (195-33)

2шт.

BOLT - 1/2" x 2" N.F. hex. (14-832) nut (25-118)

2шт.

8

195-902

WASHER

- 1-1/4" sq. bevel

2шт.

9

131-370

LOCK NUT

LOCKNUT - for ref. 4

8шт.

10

D29138

OIL SEAL

SEAL - oil, front and rear idlers

8шт.

11

D29134

SHIELD

- oil seal

8шт.

12

O3062CS

BOLT - track tightener

4шт.

NUT - 7/8" N.C. hex. jam (25-1414)

8шт.

13

F1174

BRACKET - bearing, front idler, R.H. and L.H.

4шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) nut (25-1110)

4шт.

14

195-903

WASHER

- 1-1/2" sq. bevel

8шт.
