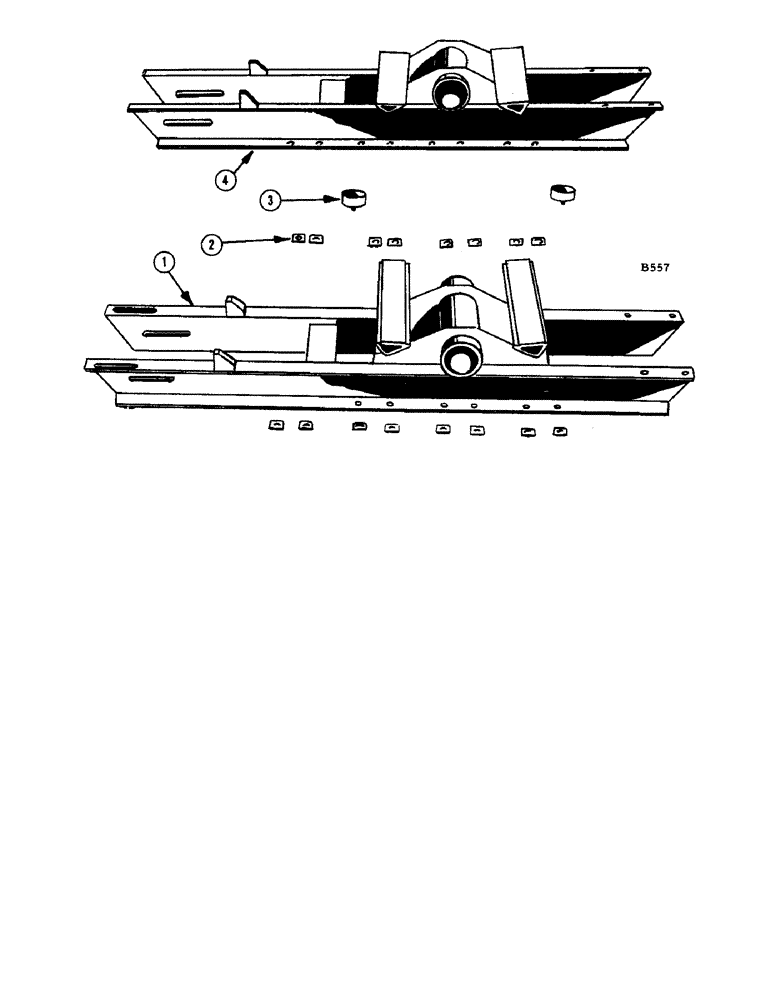

Запчасти Case IH 1060 (298) - BOGIE RAIL ASSEMBLY (48) - TRACKS & TRACK SUSPENSION

1

F76628

FRAME - bogie, R.H.

1шт.

FITTING - 1/4" x 45 degrees (219-37)

1шт.

BOLT - 1/2" x 2" N.F. hex. (14-832) nut (25-118) L.W. (92-8)

16шт.

2

195-902

WASHER

- 1-1/4" sq. bevel

16шт.

3

1874CSA

BUMPER - rubber

4шт.

NUT - 3/8" N.C. hex. (25-106) L.W. (92-6)

4шт.

4

F76634

FRAME - bogie, L.H.

1шт.

FITTING - 1/4" x 45 degrees (219-37)

1шт.

WASHER - 1-1/4" sq. bevel (195-902)

16шт.

BOLT - 1/2" x 2" N.F. hex. (14-832) nut (25-118)

16шт.
