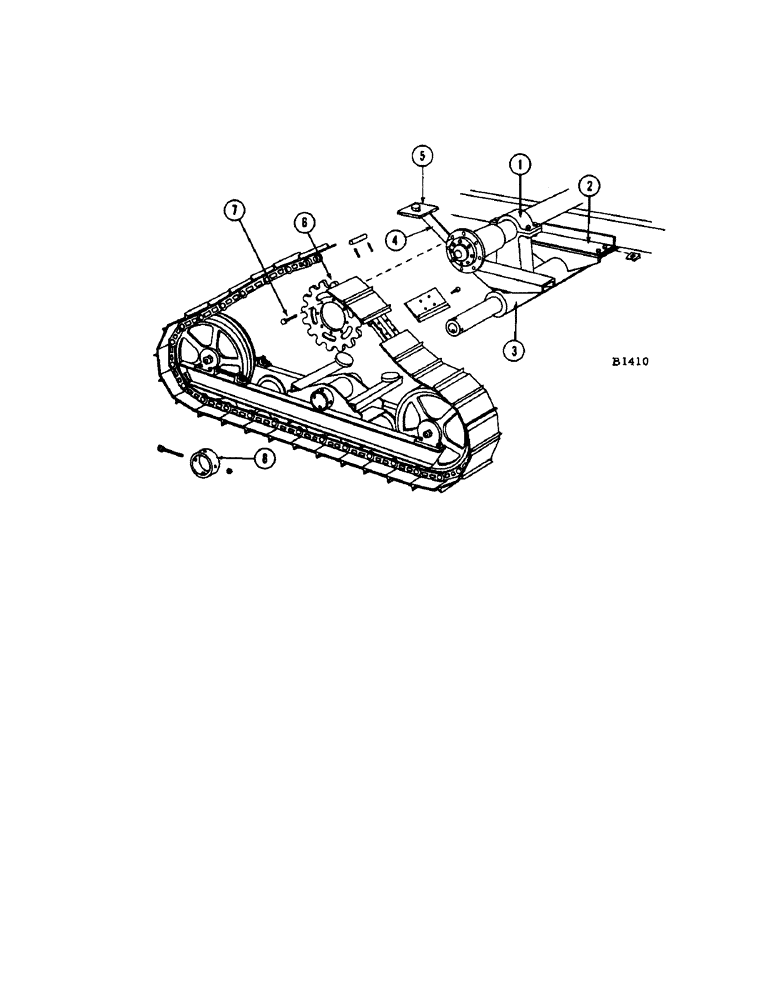

Запчасти Case IH 1060 (298[1]) - BOGIE AXLE (48) - TRACKS & TRACK SUSPENSION

1

F1248

CLAMP - axle (Welded after assembly)

2шт.

BOLT - 1/2" x 2-1/4" N.F. hex. (14-836) nut (25-118)

8шт.

2

F9217

ANGLE - axle mounting (Welds to frame arter assembly)

2шт.

BOLT - 1/2" x 1-1/4" N.F. hex. (14-820) nut (25-118)

8шт.

3

F77510

AXLE - bogie, R.H.

1шт.

F77511

AXLE - bogie, L.H.

1шт.

BOLT - 5/8" x 1-3/4" N.F. hex. (14-1028) nut (25-1110)

2шт.

WASHER - 1-1/2" sq. bevel (195-903)

2шт.

4

F87764

STRUT

2шт.

BOLT - 5/8" x 2" N.F. hex. (14-1032) nut (25-1110)

4шт.

5

F14113

PERCH - strut, rear

2шт.

6

F1249

SPROCKET - (19T) Track drive

2шт.

7

F11384

BOLT - for ref. 6

16шт.

NUT - 5/8" N.F. hex. (129-27)

16шт.

8

O3046CS

COLLAR - axle tube

2шт.

BOLT - 7/16" x 1-1/2" N.F. hex. (14-724) nut (25-117)

8шт.
