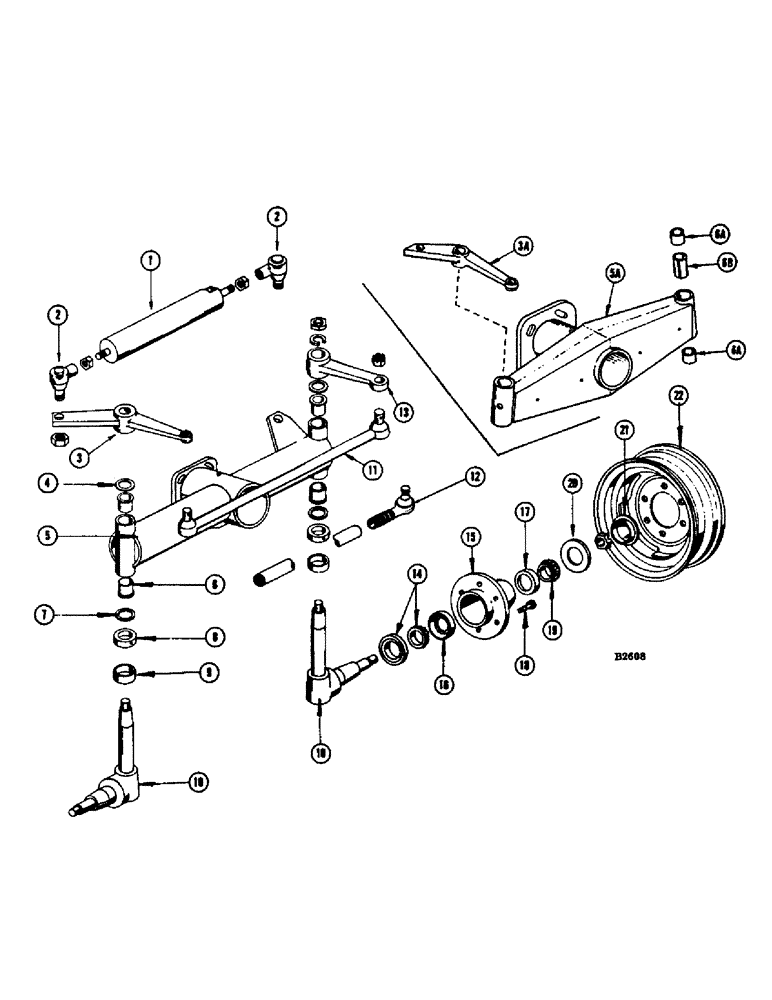

Запчасти Case IH 1060 (296) - STEERING ARMS AND AXLE (41) - STEERING

1

F87848

CYLINDER - power steering (Replaces F86540)

1шт.

2

F87308

SOCKET - cylinder (Replaces F86541)

2шт.

NUT - 5/8" N.F. slotted hex. (25-1310)

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

NUT - 5/8" N.F. hex. jam (25-1510)

2шт.

3

F86779

CRANK - control arm (Wide axle grain and rice axle) (Before #8311400)

1шт.

F86780

CRANK - control arm (Narrow axle grain) (Before #8311400)

1шт.

3a

F87343

CRANK - control arm (Wide axle grain and rice axle) #8311400 and after

1шт.

F87420

CRANK - control arm (Narrow axle grain) #8311400 and after

1шт.

4

O168CB

WASHER - shim

1шт.

V20203

PLATE

WASHER

1шт.

5

F86531

AXLE - rear (Narrow axle grain 34") With bushings (Before #8311400)

1шт.

F86535

AXLE - rear (Rice 34") w/bushings (Before #8311400)

1шт.

F86998

AXLE - rear (Wide axle grain 66") With bushings (Before #8311400)

1шт.

5a

F87402

AXLE - rear (Narrow axle grain 34") With bushings (#8311400 and after)

1шт.

F87418

AXLE - rear (Rice 34") w/bushings (#8311400 and after)

1шт.

F87415

AXLE - rear (Wide axle grain 66") With bushings (#8311400 and after)

1шт.

F88491

AXLE - rear (Wide axle grain 78") With bushings

1шт.

6

F10298

BUSHING - for all rear axles (Before #8334601)

4шт.

6a

F14817

BUSHING - for all rear axles (#8334601 and after)

4шт.

6b

F14818

SPACER - bushing (Rice axles, #8334601 and after)

2шт.

6b

F14819

SPACER - bushing (Grain axles, #8334601 and after)

2шт.

FITTING - 1/8" x 45 degrees (219-36)

2шт.

FITTING - 1/8" x 67-1/2 degrees (219-40)

1шт.

7

F10300

WASHER

2шт.

8

A27602

THRUST BEARING,2.041" ID x 2.9475" OD x 0.635"

BEARING

2шт.

9

F10299

SLEEVE - for A27602 bearing

2шт.

10

F86312

SPINDLE - steering, R.H. and L.H. (Rice)

2шт.

F86417

SPINDLE - R.H. and L.H. (Grain)

2шт.

KEY - "G" Woodruff (126-40)

2шт.

NUT - 1" N.F. hex. jam (25-1516) L.W. (92-16)

2шт.

NUT - 1" N.F. hex. slotted (25-1316)

2шт.

PIN - 3/16" x 1-3/4" cotter (132-97)

2шт.

11

F12739

HOUSING

ROD - tie (Wide axle 66")

1шт.

F12740

ROD - tie (Narrow axle 34")

1шт.

F14937

ROD - tie (Wide axle 78")

1шт.

12

F86782

END - tie rod, R.H. thread (For F12739, F12740 or F14937)

1шт.

NUT - 1" - 8 N.C. jam R.H. thd. (25-1416)

1шт.

NUT - 9/16" - 18 N.F. slotted (25-139)

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

F86783

END - tie rod, L.H. thread (For F12739, F12740 or F14937)

1шт.

NUT - 1" - 8 N.C. jam L.H. thd. (129-350)

1шт.

NUT - 9/16" - 18 N.F. slotted (25-139)

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

13

F3150

ARM - spindle R.H.

1шт.

14

F86364

BEARING CONE

CONE AND SEAL - wheel bearing, inner

2шт.

15

F79241

HUB - wheel (Early production) Contains ref. 16 and 17

2шт.

F87265

HUB - wheel (Late production)

1шт.

16

F62097

CUP ASSY.

CUP - wheel bearing, inner

1шт.

17

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - wheel bearing, outer

1шт.

18

F14769

BOLT - wheel to hub (Replaces A31040)

12шт.

19

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - wheel bearing, outer

2шт.

20

A31148

WASHER

- spindle

2шт.

21

G57436

CYLINDER END CAP

CAP - hub

2шт.

22

F8873

WHEEL - for 6.50 x 16 4 ply imp. tire (Early production)

2шт.

F87877

X

WHEEL - for 6.50 x 16 4 ply imp. tire (Late production)

2шт.

O9930HT

WHEEL - for 7.50 x 18 4 ply imp. tire (Early production)

2шт.

F87191

WHEEL - for 7/50 x 18 4 ply imp. tire (Late production)

2шт.
