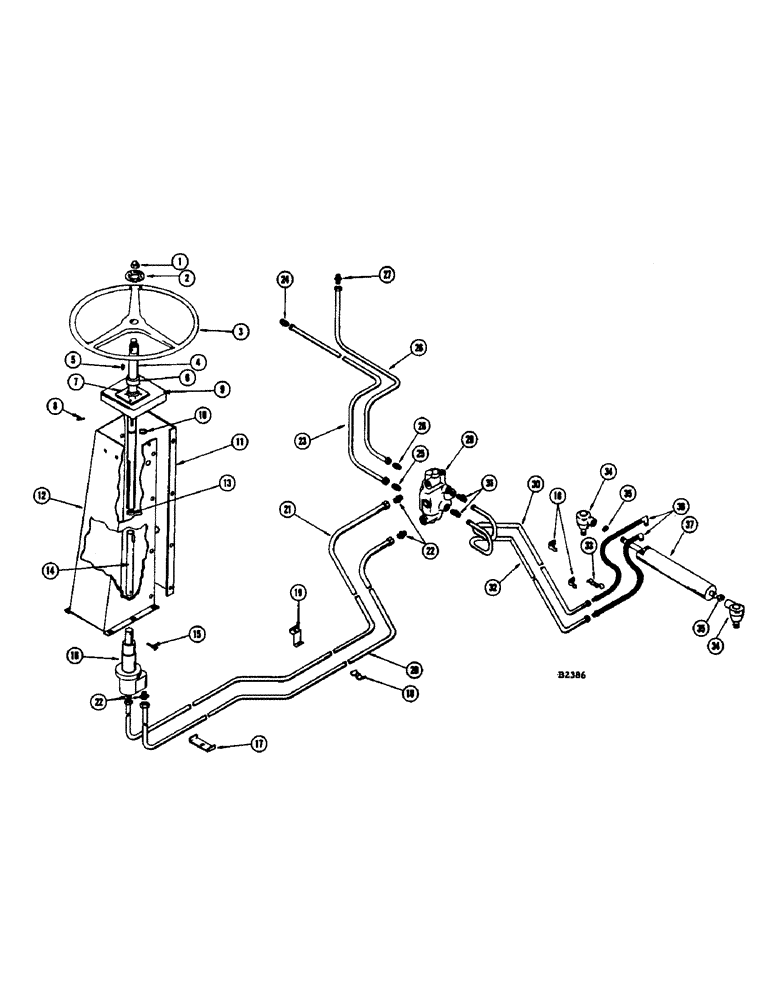

Запчасти Case IH 1060 (292) - HYDROSTATIC STEERING SYSTEM (41) - STEERING

1

A8744

NUT

- cap

1шт.

2

A8248

PLATE - steering wheel

1шт.

3

A7668

WHEEL

- steering

1шт.

4

F13049

SHAFT - steering

1шт.

5

126-216

WOODRUFF KEY,Hi-Pro, 1" Dia x 1/4" x 1 1/16"

KEY - hi-pro #808

1шт.

6

F12987

NUT - adjusting

1шт.

211-7

BALL,1/4" Dia

- steel, for Ref 6, F12987 1/4" Dia

6шт.

7

F86988

BEARING - steering shaft

1шт.

BOLT - 5/16" x 3/4" rhd. sq. nk. (11-512) nut (25-105)

2шт.

8

138-50

LOCK PIN,1/8" x 5/16", Slotted

PIN, , For ref. 7, F86988 1/8" x 5/16", Slotted

1шт.

9

F1955

CAP - steering column

1шт.

SCREW - 1/4" x 1" truss hd. mach. (175-417) nut (129-101)

4шт.

WASHER - 1/4" (195-518) L.W. (192-19)

4шт.

10

F62205

RING, SNAP

SNAP RING - for ref. 4, F13049

1шт.

11

F87024

PANEL - rear steering column

1шт.

12

F13031

COLUMN - steering

1шт.

13

F10666

CUSHION - rubber, between ref. 4 and ref. 16

1шт.

14

F86989

COLLAR - steering shaft

1шт.

FITTING - grease (219-20) For ref. 14, F86989

1шт.

15

F12502

PIN - clevis, steering shaft coupling

1шт.

PIN - 3/32" x 3/4" cotter (132-26)

1шт.

16

F86570

PUMP - hydrostatic hand

1шт.

BOLT - 5/16" x 5/8" N.C. hex. (13-510) L.W. (92-5)

4шт.

17

F12441

CLAMP - hydraulic line (Bagger machines)

1шт.

BOLT - 5/16" x 1-1/4" N.F. hex. (14-520) nut (25-115)

1шт.

18

F12067

CLIP - hydraulic line

4шт.

19

F13061

SCREW

HANGER - hydraulic line (Grain bin machines)

1шт.

BOLT - 1/4" x 1/2" N.F. hex. (14-48) nut (25-114)

1шт.

20

F87041

LINE - hydraulic, hand pump to valve, outer (Grain bin machines)

1шт.

CONNECTOR - #8-F50X-S Parker flared (218-5059)

2шт.

F87028

LINE - hydraulic, hand pump to valve, outer (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661)

1шт.

CONNECTOR - #8-50X-S Parker flared (218-5059)

1шт.

21

F87040

LINE - hydraulic, hand pump to valve, inner (Grain bin machines)

1шт.

CONNECTOR - #8-F50X-S Parker flared (218-5059)

2шт.

F87029

LINE - hydraulic, hand pump to valve, inner (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661)

1шт.

22

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - #8-50X-S Parker flared

1шт.

23

F86555

LINE - hydraulic, pump to valve (Grain bin machines)

1шт.

F86566

LINE - hydraulic, valve to pump (Bagger machines)

1шт.

24

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6-FTS-S Parker flared

1шт.

25

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - #6-F50X-S Parker flared

1шт.

26

F86556

LINE - hydraulic, valve to reservoir (Grain bin machines)

1шт.

F86567

LINE - hydraulic, valve to reservoir (Bagger machines)

1шт.

27

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6-FTS-S Parker flared

1шт.

28

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - #6-8F50X-S Parker flared

1шт.

29

A37980

VALVE

- hydrostatic, power steering (Replaces F82739)

1шт.

F82739

VALVE

- hydrostatic, power steering (Replaced by A37980 when stocks are exhausted)

1шт.

BOLT - 3/8" x 1" N.C. hex. (13-616) nut (25-106)

3шт.

30

F86559

LINE - hydraulic, valve to cylinder hose, front (Grain bin machines)

1шт.

CONNECTOR - #6-F50X-S Parker flared (218-5057)

1шт.

F86565

LINE - hydraulic, valve to cylinder, lower (Bagger machines)

1шт.

UNION - #6-HTX-S Parker flared (218-734)

1шт.

F86564

LINE - hydraulic, valve to cylinder, inner (Bagger machines)

1шт.

31

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - #6-F50X-S Parker flared

1шт.

32

F86560

LINE - hydraulic, valve to cylinder hose, rear (Grain bin machines)

1шт.

CONNECTOR - #6-F50X-S Parker flared (218-5057)

1шт.

F86563

LINE - hydraulic, valve to cylinder, lower (Bagger machines)

1шт.

UNION - #6-HTX-S Parker flared (218-734)

1шт.

F86562

LINE - hydraulic, valve to cylinder, outer (Bagger machines)

1шт.

CONNECTOR - #6-F50X-S Parker flared (218-5057)

1шт.

33

F8807

CLIP - hose

1шт.

BOLT - 1/4" x 7/8" N.F. hex. (14-414) nut (25-114)

1шт.

34

F87308

SOCKET - steering cylinder (Replaces F86541)

2шт.

NUT - 5/8" N.F. slotted hs. (25-1310)

2шт.

PIN - 1/8" x 1" cotter (132-48)

2шт.

35

86637932

JAM NUT,Jam, 5/8"-18, G5

NUT - 5/8" N.F. hex. jam

2шт.

36

F12430

HOSE - hydraulic, steering cylinder

2шт.

37

F87848

CYLINDER - power steering (Replaces F86540)

1шт.

F86540

CYLINDER - power steering (Replaced by F87848)

1шт.
