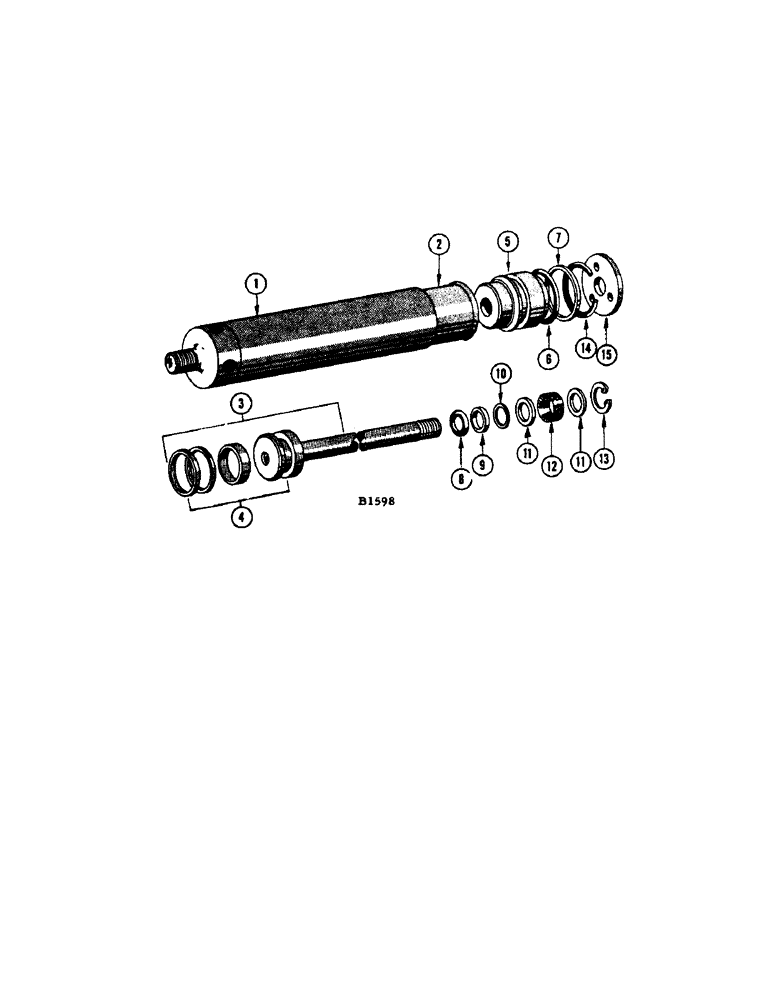

Запчасти Case IH 1060 (290[2]) - F86540 POWER STEERING CYLINDER (41) - STEERING

1

NSS

NOT SOLD SEPARAT

CYLINDER AND HEAD ASSEMBLY

1шт.

2

NSS

NOT SOLD SEPARAT

TUBE - piston, inner cylinder

1шт.

3

F91833

PISTON

AND ROD ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

PISTON

1шт.

NSS

NOT SOLD SEPARAT

ROD - piston

1шт.

4

A56226

PISTON ASSY.

PISTON AND RING ASSEMBLY

1шт.

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F. hex.

1шт.

5

F79038

CYLINDER BEARING ASSEMBLY

1шт.

NSS

NOT SOLD SEPARAT

BEARING - cylinder

1шт.

6

A7156

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

"O" RING

1шт.

7

A35884

WASHER

RING - backup

1шт.

8

F62114

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

"O" RING - inner

1шт.

9

A35879

RING

- backup, inner

1шт.

10

F9886

WASHER

RING - retaining

1шт.

11

F9887

WASHER

RING - retaining, oil seal

2шт.

12

A11061

SEAL

OIL SEAL

1шт.

13

A35882

X

SNAP RING - seal

1шт.

14

A35885

RING

SNAP RING

1шт.

15

A35887

PLATE ASSY.

PLATE - end, cylinder

1шт.

SCREW - #10-24 x 1/2" rhd. mach. (173-97) L.W. (92-3)

3шт.
