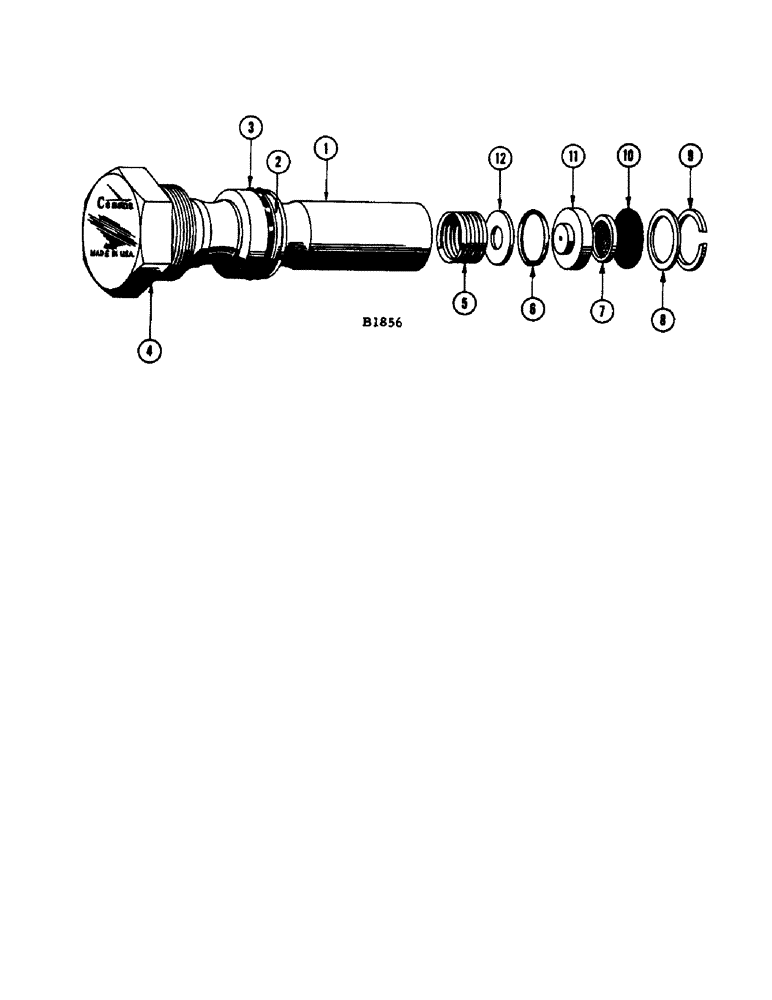

Запчасти Case IH 1060 (256[1]) - RELIEF VALVE ASSEMBLY (35) - HYDRAULIC SYSTEMS

1

F84829

VALVE

- relief (For F87262 control valve)

1шт.

F87195

LOCK VALVE

VALVE - relief (For F87181 control valve)

1шт.

2

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 5/8" I.D.)

1шт.

3

NSS

NOT SOLD SEPARAT

WASHER - (3/32" x 5/8") Backup rubber

1шт.

4

NSS

NOT SOLD SEPARAT

"O" RING - (3/32" x 3/4" I.D.)

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

6

NSS

NOT SOLD SEPARAT

"O" RING - (1/16" x 3/8" I.D.)

1шт.

7

NSS

NOT SOLD SEPARAT

SCREEN - reinforcing

1шт.

8

NSS

NOT SOLD SEPARAT

WASHER - (.020" thick) For filter screen

1шт.

9

NSS

NOT SOLD SEPARAT

SNAP RING - for filter screen washer

1шт.

10

NSS

NOT SOLD SEPARAT

SCREEN - filter

1шт.

11

NSS

NOT SOLD SEPARAT

PLATE - orifice

1шт.

12

NSS

NOT SOLD SEPARAT

WASHER - (.030" thick) Spring

1шт.

F84831

SEAL

KIT - repair, port plate (Contains ref. 2, 3 and 4)

1шт.
