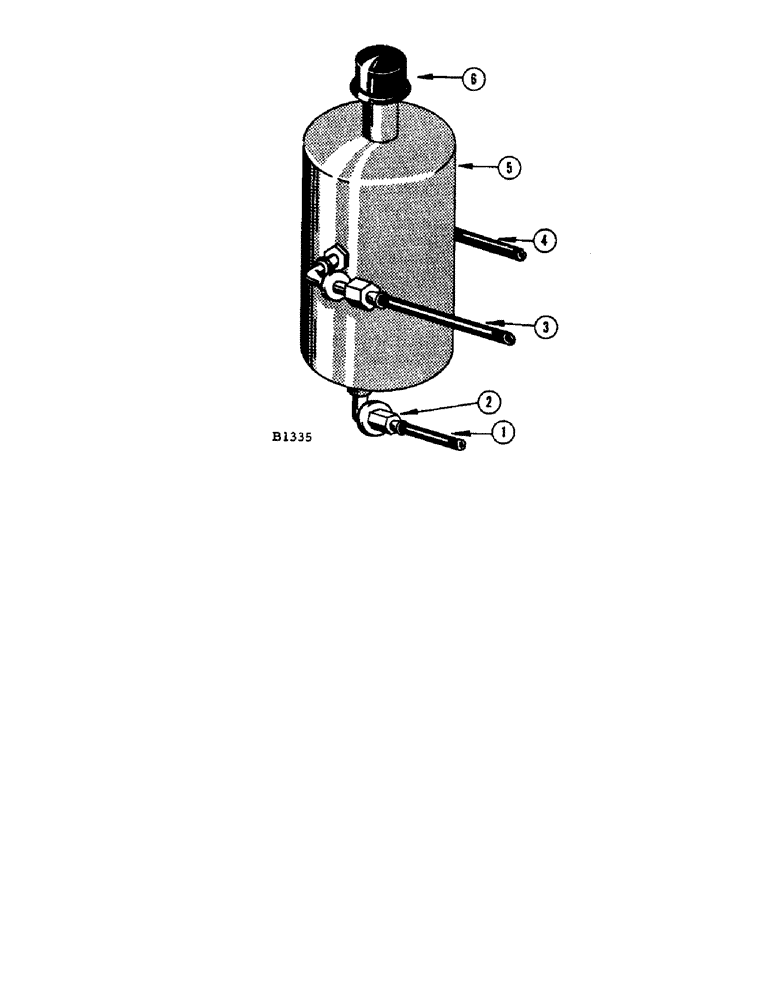

Запчасти Case IH 1060 (254) - OIL RESERVOIR FOR HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

F8050

HOSE - (28-1/4" braid) Intake, from, Serial Range: reservoir-pump

1шт.

CLAMP - #11-1/2" hose (214-11)

1шт.

2

F8049

COUPLING - for F8050 intake hose

1шт.

3

F86556

LINE - power steering valve to reservoir (See hydraulic system) Grain bin

1шт.

F86567

LINE - power steering valve to reservoir (See hydraulic system) Bagger

1шт.

4

F87038

LINE - from valve to reservoir (See hydraulic system)

1шт.

5

F77978

RESERVOIR - oil, hydraulic

1шт.

6

F77662

DIPSTICK - oil reservoir gauge

1шт.

BOLT - 3/8" x 3/4" N.C. hex. (13-612) L.W. (92-6)

4шт.
