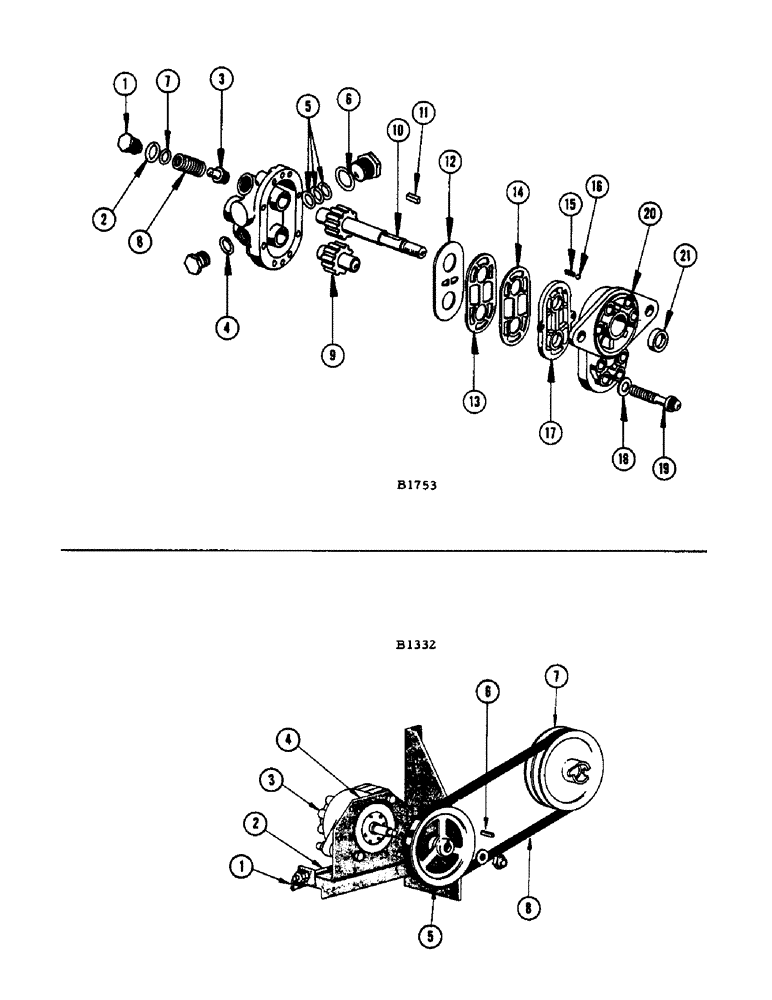

Запчасти Case IH 1060 (252) - F86819 HYDRAULIC PUMP (35) - HYDRAULIC SYSTEMS

F86871

LARGE PLATE

KIT - back plate (Includes seat valve)

1шт.

1

F10890

PLUG

- (9/16" N.F.) For F86259 poppet

1шт.

2

F59121

O-RING

"O" RING - (7/16" I.D. x 3/32" thick) Poppet

1шт.

3

F86259

VALVE POPPET

POPPET ASSEMBLY - (Replaced by FH732180 when exh.)

1шт.

FH732180

VALVE POPPET

POPPET ASSEMBLY - (Replaced F86259)

1шт.

4

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - (5/8" I.D. x 3/32" thick) Spool

1шт.

5

F10894

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

"O" RING - (11/16" I.D. x 1/16" thick) Back plate

3шт.

6

F10895

X

"O" RING - (7/8" I.D. x 3/32" thick) Back plate

1шт.

NSS

NOT SOLD SEPARAT

BACK PLATE

1шт.

7

F12267

WASHER

SHIM - relief valve

1шт.

F21353

SPRING

- sleeve (Not shown)

1шт.

8

F12862

SPRING - relief valve

1шт.

9

F79200

GEAR

- idler (Includes shaft)

1шт.

10

F79201

GEAR

- drive (Includes shaft)

1шт.

11

F9856

KEY

1шт.

12

F11404

DIAPHRAGM

- front plate

1шт.

13

F11405

GASKET

- backup, front plate

1шт.

14

F10896

GASKET

- protector

1шт.

15

F9883

SPRING

- steel ball

2шт.

16

211-6

BALL,7/32" Dia

steel 7/32" Dia

2шт.

17

F11409

SEAL

- diaphragm

1шт.

18

F10897

WASHER

- (9/16" O.D. x 21/64" I.D. x 1/32" thick-copper) Body cap screws

8шт.

19

F11407

X

CAP SCREW - (5/16" x 2-1/2" N.F. body)

8шт.

20

F79198

PLATE ASSY.

PLATE - front

1шт.

21

F11406

SEAL

- drive gear shaft

1шт.

F79661

PACKAGE, REPAIR

BODY - pump, with dowel pins (Not shown)

1шт.

1

F77615

BRACKET - support, engine and hydraulic pump drive

1шт.

2

F9348

BOLT - adjustment, hydraulic pump drive

1шт.

BOLT - 3/8" x 1-1/4" N.C. hex. (13-620) nut (25-106), hydraulic pump drive

1шт.

WASHER - 3/8" plain (195-25) L.W. (92-6), hydraulic pump drive

1шт.

NUT - 3/8" plain N.C. hex. (25-106), hydraulic pump drive

2шт.

3

F86819

PUMP - hydraulic, pump drive

1шт.

BOLT - 7/16" x 1-3/8" N.F. hex. (14-722) nut (25-117), hydraulic pump drive

2шт.

4

F79196

SUPPORT - plate, adjusting, hydraulic pump drive

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106), hydraulic pump drive

3шт.

WASHER - 3/8" plain (195-25) L.W. (92-6), hydraulic pump drive

3шт.

5

F1256

SHEAVE - (7-7/16" O.D. 3 spokes) Hydraulic pump drive, driven

1шт.

WASHER - 1/2" plain (195-33), hydraulic pump drive

1шт.

NUT - 1/2" N.F. elastic stop (131-9), hydraulic pump drive

1шт.

6

F9856

KEY

- for F1256 sheave, hydraulic pump drive

1шт.

7

A57511

SHEAVE - double, drives fan and hydraulic pump (Case)

1шт.

F1935

SHEAVE - triple, drives fan, hydraulic pump and governor (Chrysler)

1шт.

8

F8047

BELT

Hydraulic Pump Drive

1шт.
