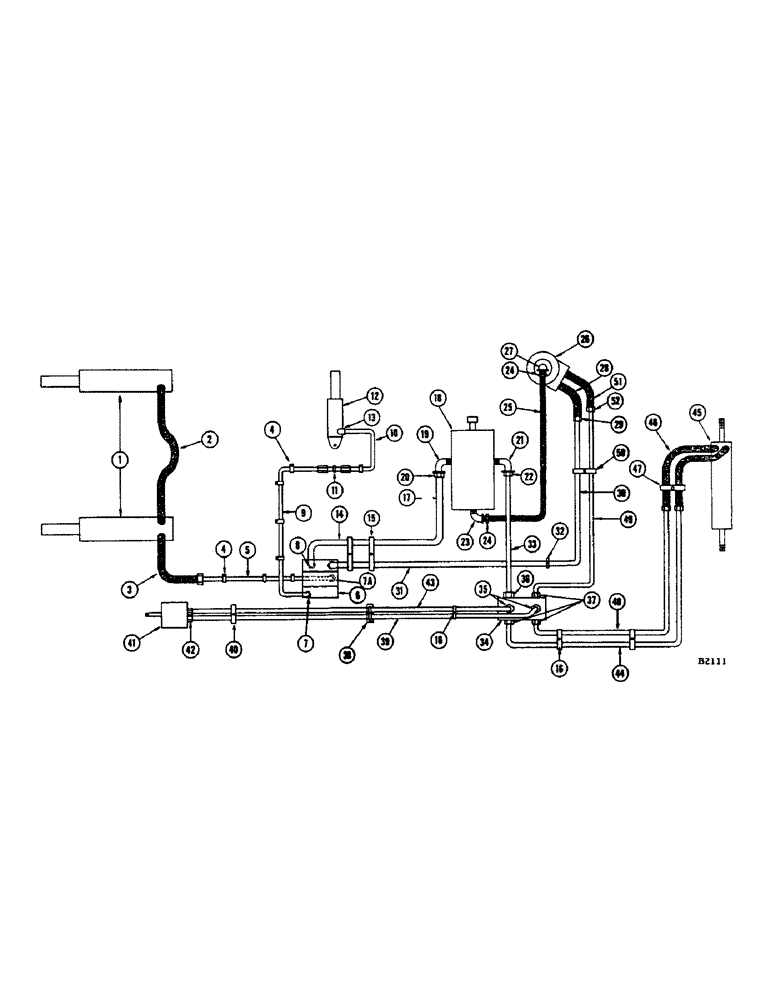

Запчасти Case IH 1060 (248) - HYDRAULIC SYSTEM (35) - HYDRAULIC SYSTEMS

1

F87112

CYLINDER - header lift (Before #8334601)

2шт.

F88199

CYLINDER - header lift (#8334601 and after)

2шт.

2

F14139

HOSE - hydraulic (Replaces F10835) Before #8334601

1шт.

F14214

HOSE - hydraulic (#8334601 and after)

1шт.

3

F14141

HOSE - hydraulic, header lift ram to F87013 line (Replaces F10834) Before #8334601

1шт.

F14212

HOSE - hydraulic, header lift ram to F87874 line (#8334601 and after)

1шт.

4

F9263

CLIP - hydraulic line (For F87013 and F86930)

8шт.

F14213

CLIP - hydraulic line (For F87874)

3шт.

5

F87013

LINE - hydraulic, from header lift hose F14141 to valve F87181 (Before #8334601)

1шт.

F87874

LINE - hydraulic, from header lift hose F14212 to valve F87181 (#8334601 and after)

1шт.

6

F87181

VALVE

- control, header lift and variable speed control (Replaces F87262)

1шт.

7

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF (#6-6FTX Parker) (Valve to V.S. ram)

1шт.

7a

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

CONNECTOR - #8FTX-S Parker (For valve and F87874)

1шт.

7a

218-1024

HYD CONNECTOR,9/16"-18, 37 Degree x 3/8"-18, NPTF

CONNECTOR, HYD., 9/16"-18, 37° x 3/8"-18, NPTF (#6-6FTX Parker) (For valve and F87013)

1шт.

8

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

FITTING - #8-8FTX-S Parker (Valve to reservoir, valve to pump)

2шт.

9

F86930

LINE - hydraulic, valve to V.S. upper ram

1шт.

10

F86087

LINE - hydraulic, from variable speed ram F76962 to F86930 line

1шт.

11

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

- #6HTX-S Parker flared (F86087 to F86930)

1шт.

12

F76962

RAM - variable speed control

1шт.

13

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6FTX-S Parker, flared

1шт.

14

F87038

LINE - hydraulic, control valve to reservoir (Grain bin machines)

1шт.

15

F12067

CLIP - hydraulic line

6шт.

16

F12067

CLIP - hydraulic line (Steering valve to cylinder lines)

2шт.

17

F86561

LINE - hydraulic, reservoir to control valve (Bagger machines)

1шт.

18

F77978

RESERVOIR - hydraulic oil

1шт.

19

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 1/2" NPT x 90 degrees street (Control valve to reservoir line)

1шт.

20

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - #8-8FTX-S Parker, flared (Control valve to reservoir line)

1шт.

21

221-412

ELBOW,90 Degree, 1/4"-27, NPT

- 1/4" NPT x 90 degrees street (Steering valve to reservoir line)

1шт.

22

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6FTX-S Parker, flared (Steering valve to reservoir line)

1шт.

23

221-1405

ELBOW,45 Degree, 3/4"-14, NPT

- 3/4" x 45 degrees street (Intake hose pump to reservoir)

1шт.

24

F8049

COUPLING - intake hose, hydraulic pump and reservoir

2шт.

25

F8050

HOSE - hydraulic, intake, Serial Range: reservoir-pump

1шт.

CLAMP - #11-1/2" hose (214-11)

2шт.

26

F86819

PUMP - hydraulic

1шт.

27

221-415

ELBOW,90 Degree, 3/4"-14, NPT

Street (Intake hose coupling) 90º, 3/4"-14, NPT

1шт.

28

F12682

HOSE - hydraulic (1/2" I.D.) Pressure line to control valve (Chrysler engine only)

1шт.

F7878

HOSE - hydraulic (1/2" I.D.) Pressure line to control valve

1шт.

29

218-456

HYD CONNECTOR,3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

CONNECTOR - #8-8FTX-S Parker flared (Hose to control valve pressure line)

1шт.

30

F87034

LINE - hydraulic, hydraulic pump to control valve (Bagger machines)

1шт.

31

F87037

LINE - hydraulic, control valve to pump (Grain bin machines)

1шт.

32

F12067

CLIP - for F87034, ref. 30 (Bagger)

1шт.

F13084

SUPPORT - for F12067, ref. 32 (Bagger)

1шт.

33

F86556

LINE - hydraulic, valve to reservoir (Grain bin machines)

1шт.

F86567

LINE - hydraulic, valve to reservoir (Bagger machines)

1шт.

34

A37980

VALVE

- power steering, hydrostatic (Replaces F82739)

1шт.

35

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - #8-F50X-S Parker, flared

2шт.

36

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

CONNECTOR - #6-8F50X-S Parker, flared

1шт.

37

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR - #6-F50X-S Parker, flared

3шт.

38

F13061

SCREW

HANGER - hydraulic line (Grain bin machines)

1шт.

39

F87041

LINE - hydraulic hand pump to valve outer (Grain bin machines)

1шт.

F87028

LINE - hydraulic, hand pump to valve outer (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661), Serial Range: (F87028-A37980)

1шт.

40

F12441

CLAMP - hydraulic line hand pump to power steering valve (Bagger machines)

1шт.

BOLT - 5/16" x 1" N.F. hex. (14-516) nut (25-115)

1шт.

41

F86570

PUMP - hand, hydrostatic

1шт.

42

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR - #8-50FX-S Parker flared

2шт.

43

F87040

LINE - hydraulic, hand pump to valve inner (Grain bin machines)

1шт.

F87029

LINE - hydraulic pump to valve inner (Bagger machines)

1шт.

ELBOW - #8-C50X-S Parker flared (222-1661), Serial Range: (F87029-A37980)

1шт.

44

F86559

LINE - hydraulic, valve to cylinder hose front (Grain bin machines)

1шт.

F86564

LINE - hydraulic, valve to cylinder inner (Bagger machines)

1шт.

UNION - #6HTX-S Parker flared (218-734), Serial Range: (F86564-F86565)

1шт.

F86565

LINE - hydraulic, valve to cylinder lower (Bagger machines)

1шт.

45

F87848

CYLINDER - power steering (Replaces F86540)

1шт.

46

F12430

HOSE - hydraulic, steering cylinder

2шт.

47

F8807

CLIP - hose (F12430 power steering cylinder, Serial Range: hose-frame)

1шт.

48

F86560

LINE - hydraulic, valve to cylinder hose rear (Grain bin machines)

1шт.

F86562

LINE - hydraulic, valve to cylinder outer (Bagger machines)

1шт.

UNION - #6HTX-S Parker flared (218-734), Serial Range: (F86562-F86563)

1шт.

F86563

LINE - hydraulic, valve to cylinder lower (Bagger machines)

1шт.

49

F86555

LINE - hydraulic, pump to valve (Grain bin machines)

1шт.

F86566

LINE - hydraulic, valve to pump (Bagger machines)

1шт.

50

F12137

CLAMP - hydraulic line (Pressure lines to top deck)

1шт.

BOLT - 3/8" x 1" rhd. sq. nk. (11-616) nut (25-106)

1шт.

51

F12681

HOSE - hydraulic (1/4" I.D.) Pressure line to steering valve (Chrysler engine only)

1шт.

F7875

HOSE - hydraulic (1/4" I.D.) Pressure line to steering valve

1шт.

52

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - #6FTX-S Parker flared (Hose to P.S. control valve line)

1шт.

F10143

PAD - protection, hydraulic line (Not shown)

1шт.
