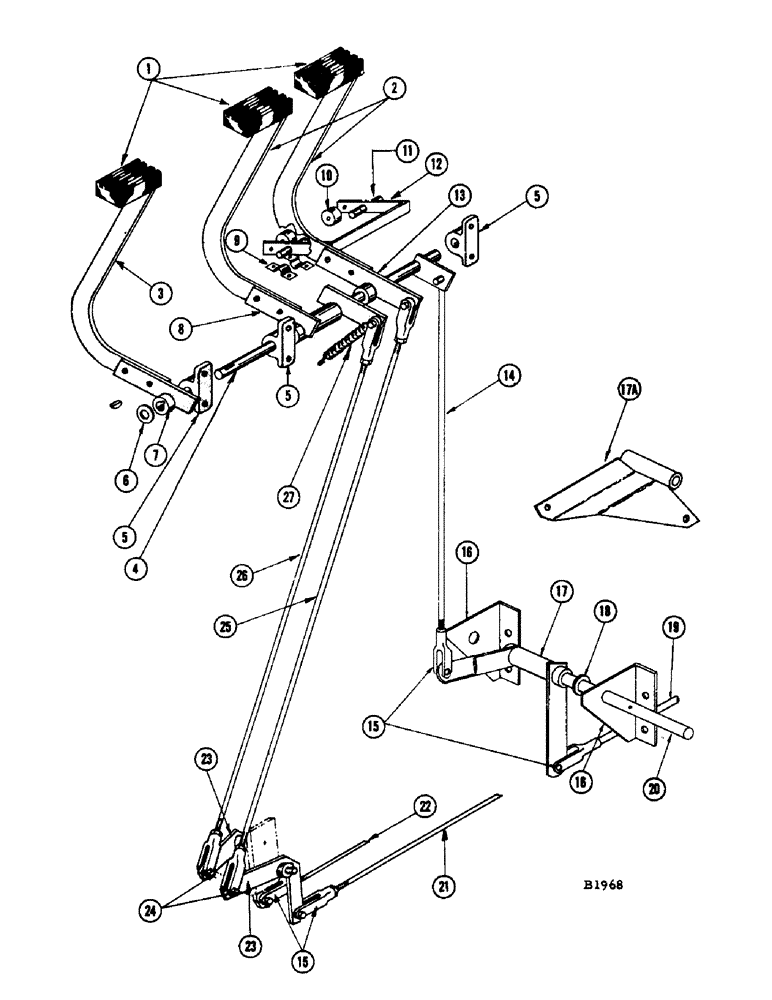

Запчасти Case IH 1060 (278) - BRAKE AND CLUTCH PEDALS (33) - BRAKES & CONTROLS

1

F9197

PAD

COVER - pedal, clutch and brake

3шт.

2

F77503

PEDAL - brake

2шт.

BOLT - 3/8" x 1-1/8" N.F. hex. (14-618) nut (25-116)

4шт.

3

F77503

PEDAL - clutch

1шт.

BOLT - 3/8" x 1-1/8" N.F. hex. (14-618) nut (25-116)

2шт.

4

F86093

SHAFT - pivot, clutch and brake pedal

1шт.

PIN - 1/8" x 1-1/2" cotter (132-52)

1шт.

KEY - "A" Woodruff (126-21)

1шт.

5

F1227

BEARING - pivot, clutch and brake pedal

3шт.

BOLT - 3/8" x 7/8" N.F. hex. (14-614) nut (25-116)

6шт.

FITTING - grease (219-8)

3шт.

6

F62102

WASHER - for F86093 shaft

1шт.

7

F87017

HUB - clutch pedal

1шт.

8

F77499

HUB - for L.H. brake pedal

1шт.

FITTING - grease (219-33)

1шт.

9

F8161

CLIP - anchor, for ref. 11

4шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)

8шт.

10

F8159

CAM - parking brake

2шт.

11

F8160

SHAFT - pivot, parking brake

2шт.

12

F8158

LEVER - parking brake

1шт.

BOLT - 3/8" x 1-1/8" N.F. hex. (14-618) nut (25-116)

2шт.

13

F77498

HUB - for R.H. brake pedal

1шт.

FITTING - grease (219-33)

1шт.

14

F11971

ROD - clutch, upper

1шт.

15

213-3

ADJUSTABLE CLEVIS,5/16"-24

CLEVIS - for ref. 14, 19, 21, 22, 25 and 26

1шт.

16

F11830

BRACKET - brake and clutch pivot

2шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105)

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.

17

F86099

BELLCRANK - clutch pivot (Replaced by F88051 when stocks are exhausted)

1шт.

F88051

CRANK

BELLCRANK - clutch pivot (Replaces F86099; Also replaced by F88510 when stocks are exhausted)

1шт.

17a

F88510

ARM ASSY.

BELLCRANK - clutch pivot (#8357001 and after) Replaces F88051 when stock is exhausted)

1шт.

18

O2736AB

WASHER - clutch bellcrank pivot

2шт.

19

F12418

ROD - clutch, lower (Before #8311400)

1шт.

F87553

ROD - clutch, lower w/clevis (#8311400 and after)

1шт.

NUT - 5/16" N.F. hex. jam (25-155)

1шт.

20

F11968

PIN - pivot (5/8" x 9-1/4") For ref. 16

1шт.

PIN - 3/16" x 1" cotter (132-91)

2шт.

21

F9286

STAY

ROD - brake, lower R.H. (Before #8311400)

1шт.

F87557

ROD - brake, lower R.H. w/clevis (#8311400 and after)

1шт.

NUT - 5/16" N.F. hex. (25-155)

1шт.

22

F9287

ROD - brake L.H. (Before #8311400)

1шт.

F87555

ROD - brake, lower L.H. w/clevis (#8311400 and after)

1шт.

NUT - 5/16" N.F. hex. (25-155)

1шт.

23

F77540

BELLCRANK - brake pivot

2шт.

24

O5341CS

PIN - clevis, for 213-3

11шт.

PIN - 1/8" x 5/8" cotter (132-45)

9шт.

PIN - 3/32" x 1/2" cotter (132-24)

2шт.

25

F11970

ROD - brake, upper R.H. (Before #8311400)

1шт.

F87540

ROD - brake, upper R.H. w/clevis (#8311400 and after)

1шт.

NUT - 5/16" N.F. hex. jam (25-155)

1шт.

26

F11969

ROD - brake, upper L.H. (Before #8311400)

1шт.

F87538

ROD - brake, upper L.H. w/clevis (#8311400 and after)

1шт.

NUT - 5/16" N.F. hex. jam (25-155)

1шт.

27

O2533AB

SPRING - pedal return

3шт.
