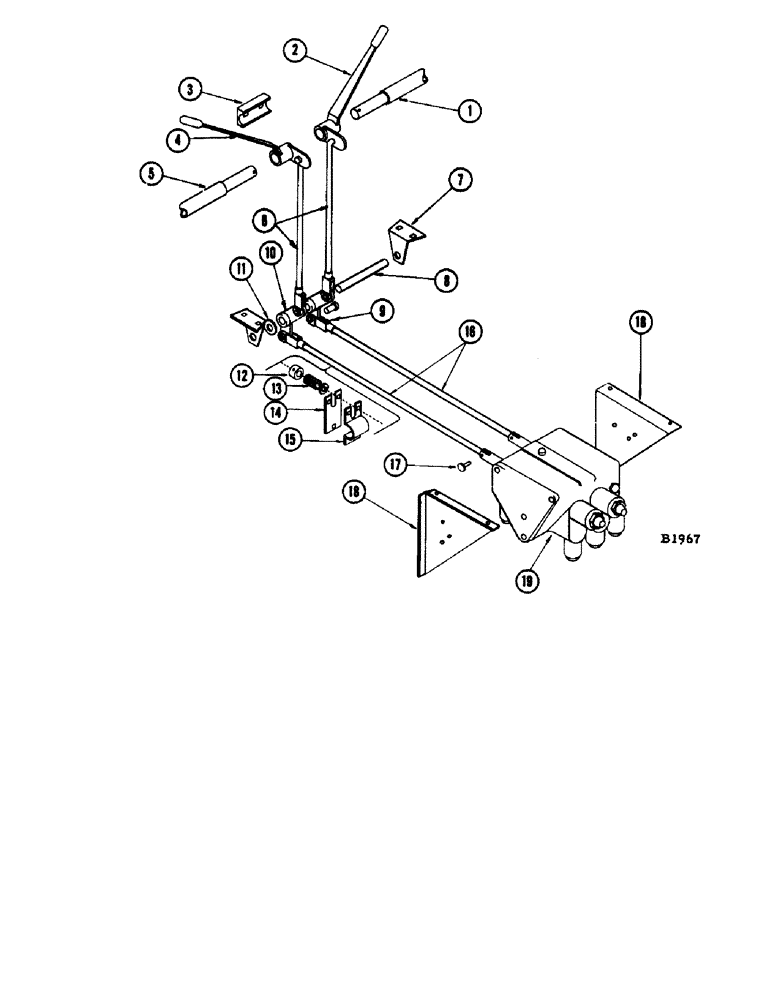

Запчасти Case IH 1060 (256) - HEADER LIFT AND VARIABLE SPEED CONTROL LINKAGE (33) - BRAKES & CONTROLS

1

F87022

HANDRAIL - front R.H. (See operator's platform)

1шт.

2

F1211

LEVER - R.H. control

1шт.

3

F1078

JOINT

BLOCK - spacer, front handrail

1шт.

BOLT - 3/8" x 2" rhd. sq. nk. (11-632) nut (25-106)

2шт.

4

F1213

LEVER - L.H. control

1шт.

5

F87021

HANDRAIL - front L.H. (See operator's platform)

1шт.

6

F13030

ROD - upper control

2шт.

PIN - 1/8" x 3/4" cotter (132-46)

2шт.

7

F11948

BRACKET - pivot, bellcrank

2шт.

BOLT - 5/16" x 5/8" rhd. sq. nk. (11-510) nut (25-105)

4шт.

8

F11947

SHAFT - pivot, bellcrank

1шт.

PIN - 1/8" x 1-1/4" cotter (132-50)

2шт.

9

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS - upper and lower control rods (Both ends of F1082)

4шт.

10

F1082

BELLCRANK

2шт.

11

O4413N

WASHER - for F11947 shaft (Ref. 8)

3шт.

12

F10117

COLLAR

1шт.

BOLT - 1/4" x 1" N.F. hex. (14-416) Jam nut (25-154)

1шт.

13

230EB

SPRING

1шт.

14

F10910

CLAMP - V.S. clutch toggle arm

1шт.

15

F10909

ARM - toggle, V.S. clutch

1шт.

BOLT - 1/4" x 1/2" rhd. sq. nk. (11-48) nut (25-104)

3шт.

16

F11952

ROD - lower control

2шт.

NUT - 3/8" N.F. hex. jam (25-156)

2шт.

WASHER - 1/2" U.S. std. (95-8)

1шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

4шт.

PIN - 3/32" x 3/4" cotter (132-26)

4шт.

18

F8167

BRACKET - mounting, control valve

2шт.

19

F87262

VALVE

- hydraulic, variable speed control (Before #8311400)

1шт.

F87181

VALVE

- hydraulic (#8311400 and after)

1шт.

F9629

GROMMET - rubber (Not shown)

2шт.
