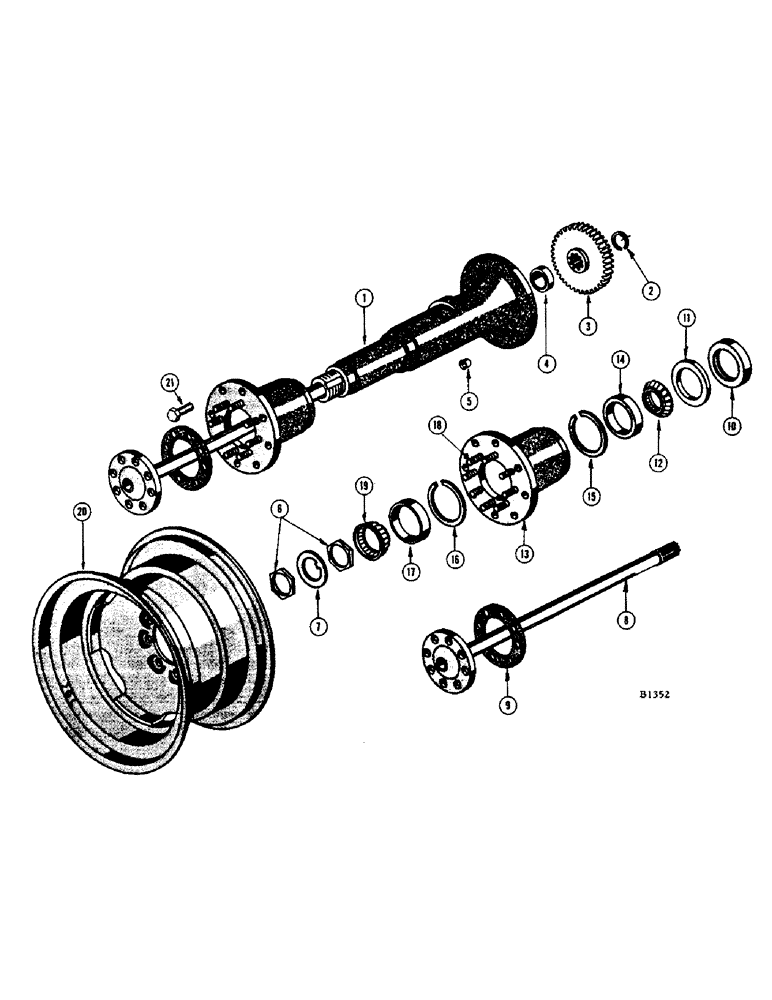

Запчасти Case IH 1060 (284) - MAIN AXLE AND HOUSING, GRAIN AND RICE TRACK COMBINES (25) - FRONT AXLE SYSTEM

1

F79923

HOUSING - axle, R.H.

1шт.

F79924

HOUSING - axle, L.H.

1шт.

2

F9815

RING - snap, axle shaft

2шт.

3

F1282

GEAR - (79T) Axle shaft and final drive

2шт.

4

F9812

BEARING

- final drive gear

2шт.

5

F9810

DOWEL - for F9806 stud

4шт.

6

F9811

NUT

- axle housing

4шт.

7

F9814

WASHER

- (4" O.D. x 2-29/32" I.D. #14 ga.) lock, axle housing nut

2шт.

8

F3106

SHAFT - axle (40-13/16" long)

2шт.

F9817

GASKET - axle housing to case (F1366) See transmission case (Not shown)

2шт.

9

F9816

GASKET

- for ref. 13, drive wheels and hubs, grain and rice track combines

2шт.

10

F9802

SEAL - oil, inner hub, drive wheels and hubs, grain and rice track combines

2шт.

11

F9813

SPACER - between F9802 and O7069AB, drive wheels and hubs, grain and rice track combines

2шт.

12

A27196

BEARING CONE,83.34mm ID x 25.4mm W

CONE - inner hub, drive wheels, grain and rice track combines

2шт.

13

F77796

HUB - wheel, drive, grain and rice track combines

2шт.

14

A27146

BEARING, CUP,125.41mm OD x 19.84mm W

CUP - inner, hub, drive wheels, grain and rice track combines

2шт.

15

F9808

RING - snap, inner bearing cone (A27196), drive wheels and hubs, grain and rice track combines

2шт.

16

F9807

RING - snap, outer bearing cone (F9804), drive wheels and hubs, grain and rice track combines

2шт.

17

F9803

BEARING CUP

CUP - outer hub, drive wheels , grain and rice track combines

2шт.

18

F9805

STUD

- wheel hub, drive, grain andrice tracks combine

16шт.

LOCKWASHER - 7/16" Shakeproof #1122 (193-11), drive wheels and hubs, grain and rice track combines

16шт.

F9809

COLLAR

- for F9805 stud (Not shown), drive wheels and hubs, grain and rice track combines

16шт.

F11591

NUT

- for F9805 wheel stud (Not shown), drive and hubs, grain and rice track combines

16шт.

19

F9804

ROLLER BEARING

CONE - outer hub, drive wheels, grain and rice track combines

2шт.

20

O3540CK

WHEEL - disc, for 15 x 26 6 ply tire, drive and hubs, grain and rice track combines

1шт.

O4094CS

WHEEL - disc, for 14 x 26 6 ply tire, drive and hubs, grain and rice track combines

2шт.

O4604CS

WHEEL - disc, for 14 x 26 6 ply tire, drive and hubs, grain and rice track combines

1шт.

21

F11384

BOLT - wheel to hub, drive, grain and rice track combines

16шт.

NUT - 5/8" N.F. hex. (129-127), drive wheels and hubs, grain and rice track combines

16шт.
