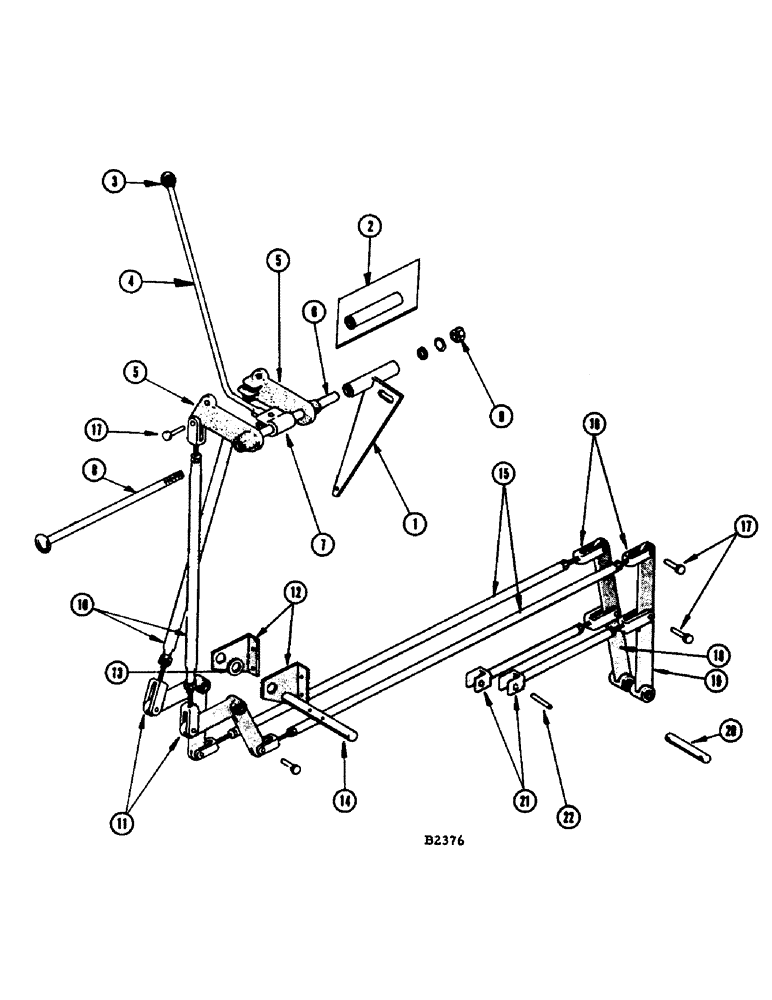

Запчасти Case IH 1060 (282) - GEAR SHIFT LINKAGE (21) - TRANSMISSION

1

F87027

ARM - lower throttle (Case engines)

1шт.

2

F13055

SCREW

SPACER - pivot shaft (Chrysler engine)

1шт.

3

A23885

KNOB

- gear shift

1шт.

4

F13057

SCREW

LEVER - shift

1шт.

5

F1956

ARM - selector

2шт.

6

F13059

SCREW

SHAFT - pivot

1шт.

7

F8171

CLAMP - shift lever

1шт.

BOLT - 3/8" x 1" N.F. hex. (13-616) #29 E 1066 elastic stop nut (131-6)

1шт.

8

111-352

BOLT - 3/8" x 8" rhd. sq. nk.

1шт.

195-25

WASHER,3/8"

- flat 3/8"

1шт.

9

131-5

LOCK NUT,3/8"-16, GB

NUT - 3/8" - 24 elastic stop

1шт.

10

F11958

ROD - gear shift, upper (55-1/2")

2шт.

11

F77542

BELLCRANK - gear shift pivot

2шт.

12

F11830

BRACKET - pivot, shift and clutch

2шт.

BOLT - 5/16" x 7/8" N.F. hex. (14-514) nut (25-115)

2шт.

BOLT - 5/16" x 1" rhd. sq. nk. (11-516) nut (25-105)

2шт.

13

O2736AB

WASHER

2шт.

14

F11968

PIN - pivot (5/8" x 9-1/4") For F11830 bracket

1шт.

PIN - 3/16" x 1" cotter (132-91)

2шт.

15

F9283

ROD - gear shift, lower

2шт.

16

VR2694

CLEVIS - male

10шт.

17

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, , for ref. 16 3/8" x 1.060"

10шт.

PIN - 3/32" x 3/4" cotter (132-26)

10шт.

18

F77543

ARM - shift control (1st and reverse) (Replaced by F88654 when stocks are exhausted)

1шт.

F88654

ARM - shift control (1st and reverse) (Replaces F77543)

1шт.

19

F77544

ARM - shift control (2nd and 3rd) (Replaced by F88654 when stocks are exhausted)

1шт.

F88654

ARM - shift control (2nd and 3rd) (Replaces F77544)

1шт.

20

F9279

PIN - pivot (Attaches ref. 18 and 19 to main frame)

1шт.

PIN - 3/16" x 1" cotter (132-91)

2шт.

21

F77545

ROD - selector gear w/welded yoke

2шт.

22

F9282

PIN - clevis

2шт.

PIN - 3/32" x 5/8" cotter (132-25)

4шт.
