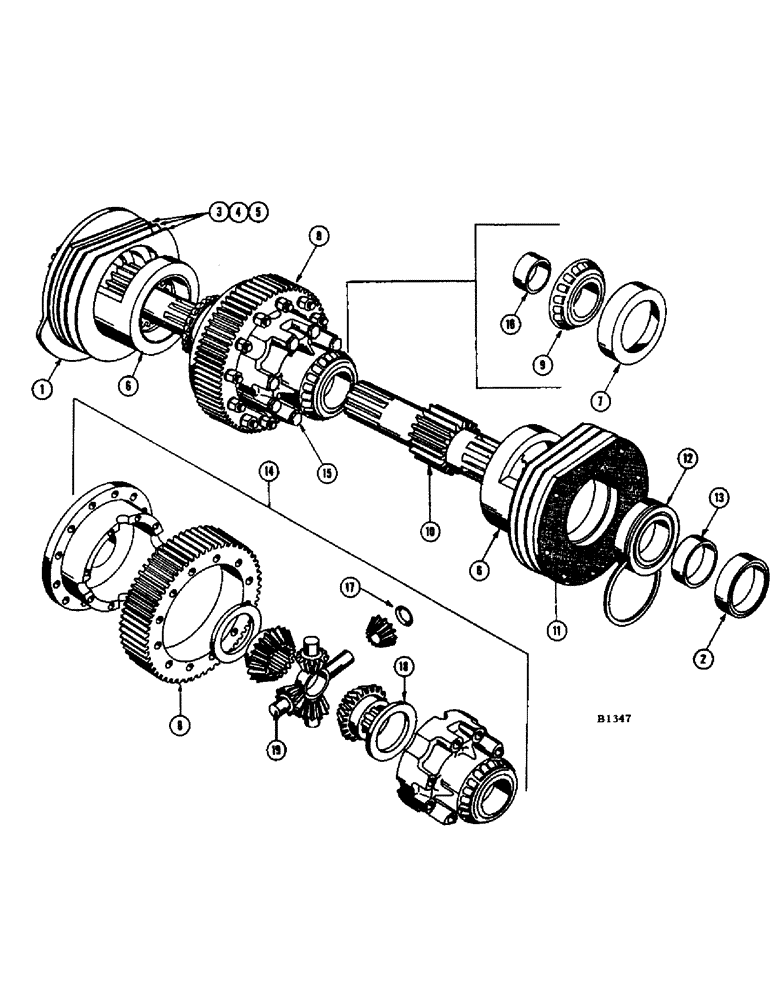

Запчасти Case IH 1060 (274) - DIFFERENTIAL (21) - TRANSMISSION

1

F77792

ADAPTER - brake housing plate (See differential brake assembly)

2шт.

2

F9744

OIL SEAL

SEAL - oil, differential shaft

1шт.

3

F9762

SHIM - (.003" thick) Final drive pinion bearing

4шт.

4

F9763

SHIM - (.005" thick) Final drive pinion bearing

4шт.

5

F9779

SHIM - (.010" thick) Final drive pinion bearing

2шт.

6

F77782

HOUSING - final drive pinion

2шт.

BOLT - 7/16" x 2-7/8" N.F. hex. gr. 7-8 stl. (114-300) and nut (129-530) L.W. (92-7)

12шт.

7

G15208

BEARING CUP,110mm OD x 18.82mm W

CUP

1шт.

8

F3101

GEAR - ring (61T) Differential

1шт.

9

A26847

ROLLER BEARING,2.5" ID x 0.866"

CONE - differential and pinion

2шт.

10

F3096

SHAFT - differential (Drives final drive gear)

2шт.

11

F9785

GASKET - final drive pinion bearing

4шт.

12

F9748

BEARING - differential shaft (w/snap ring)

2шт.

13

F9758

SLEEVE - (2-7/8" O.D. x 1-1/16" long) Differential shaft

2шт.

14

F77783

DIFFERENTIAL - complete

1шт.

15

F9737

SCREW - cap, differential case

8шт.

16

F9746

BUSHING - (1-3/4" O.D. x 1-1/4" long) Differential case

2шт.

17

F9741

WASHER - thrust, differential pinion

4шт.

18

F9740

WASHER,60.68mm ID x 90.42mm OD x 1.58mm Thk

- thrust, differential side gear

2шт.

19

F3094

SPIDER - differential

1шт.
