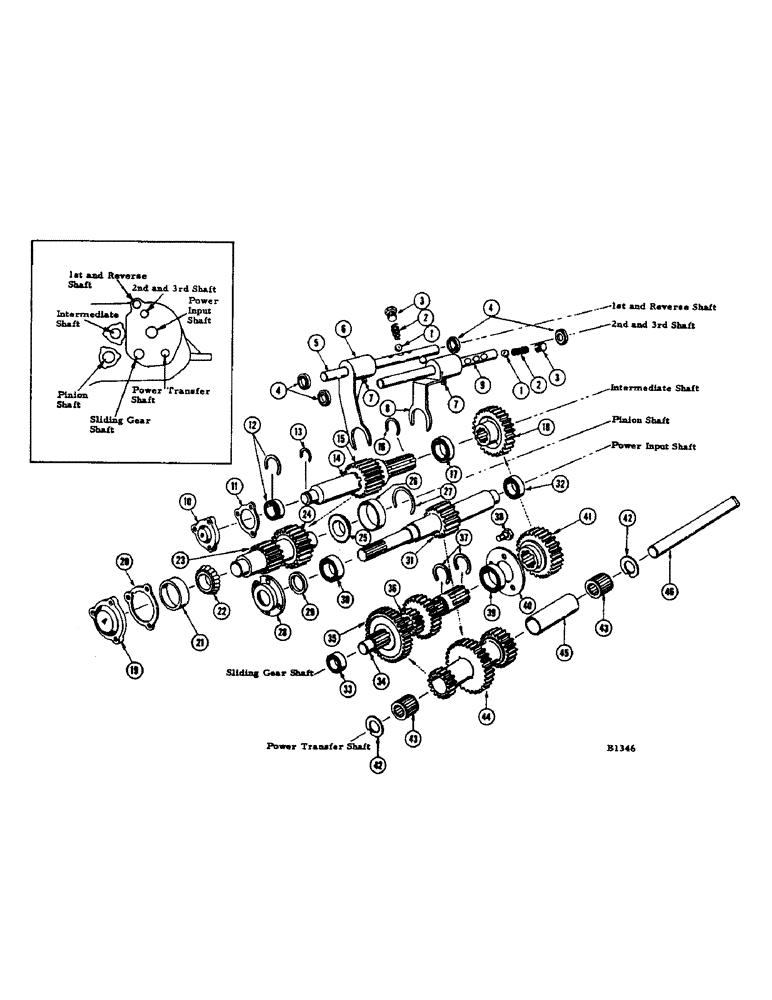

Запчасти Case IH 1060 (270) - TRANSMISSION, SHIFTER FORK AND SHAFTS (21) - TRANSMISSION

1

211-12

BALL,7/16 Dia

- (7/16" dia.) gear shift lock, shifter fork shafts

4шт.

2

F9793

SPRING - gear shift lock ball

2шт.

3

F9736

SCREW - gear shift lock ball spring

2шт.

4

F9742

OIL SEAL

SEAL - oil, shifter shaft

4шт.

5

F9789

SHAFT - (11-13/16" long) shifter, 1st and reverse

1шт.

6

F3092

FORK - shift, 1st and reverse

1шт.

7

F9739

SCREW - shift fork lock

2шт.

8

F3093

FORK

- shift, 2nd and 3rd

1шт.

9

F9788

SHAFT - (11-13/16" long) shifter, 2nd and 3rd speed

1шт.

10

F1270

CAP - for intermediate shaft bearing

1шт.

BOLT - 3/8" x 1" N.C. hex. gr. 7-8 stl. (113-215) L.W. (92-6), intermediate shaft

3шт.

11

F9783

GASKET - for F1270 bearing cap, intermediate shaft

1шт.

12

F9747

BEARING - intermediate shaft, L.H.

1шт.

13

A19904

RING, SNAP

RING - snap, for F9747 bearing, intermediate shaft

1шт.

14

F9798

SHAFT - (10-1/4") transmission intermediate

1шт.

15

F3099

GEAR - (19T) 2nd intermediate drive, shaft

1шт.

16

F9752

RING, SNAP

RING - snap, for F3105 gear, intermediate shaft

1шт.

17

O7286A

BEARING - intermediate shaft, R.H.

1шт.

18

F3105

GEAR - (35T) mating shaft F9798 (Grain and rice track) See F3140 for rice wheel, intermediate

1шт.

F3140

GEAR - (22T) mating shaft F9798 (Rice wheel) See F3105 grain and rice track, intermediate

1шт.

19

F1271

CAP - differential pinion bearing, shaft

1шт.

BOLT - 3/8" x 1" N.C. hex. gr. 7-8 stl. (113-215) L.W. (92-6), differential pinion shaft

3шт.

20

F9780

SHIM - (.008" thick) differential pinion bearing cap, shaft

2шт.

F9781

SHIM - (.005" thick) differential pinion bearing cap, shaft

2шт.

F9782

SHIM - (.010" thick) differential pinion bearing cap, shaft

4шт.

21

G57451

BEARING, CUP

CUP - differential drive pinion, L.H., shaft

1шт.

22

G57452

ROLLER BEARING

CONE - differential pinion drive, L.H., shaft

1шт.

23

F3095

SHAFT - w/16T pinion (7-23/32") differential drive

1шт.

24

F3100

GEAR - (29T) differential intermediate, pinion shaft

1шт.

25

B12409

BEARING, ROLLER,31.763 mm ID x 16.84 mm

CONE - differential intermediate gear, R.H., pinion shaft

1шт.

26

B12408

BEARING CUP,59.156 mm OD x 11.862 mm

CUP - differential intermediate gear, R.H., pinion shaft

1шт.

27

F9756

RING - snap, for B12408 cup, power input drive shaft

1шт.

28

F77789

CAP - input drive bearing, L.H., shaft

1шт.

29

F9743

SEAL - oil, power input drive shaft

1шт.

30

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

BEARING - input drive shaft, L.H., power

1шт.

31

F3151

SHAFT - w/19T gear, input drive, power

1шт.

32

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - input drive shaft, R.H., power

1шт.

33

O7285A

BALL BEARING,0.9843" ID x 2.0472" OD x 0.5906"

BEARING - shifter gear shaft

1шт.

34

F9799

SHAFT - (9-43/64") Shifter gear

1шт.

35

F3098

GEAR - (41T) Low and reverse sliding

1шт.

36

F3103

GEAR - (29T-17T) 2nd and 3rd sliding

1шт.

37

F9753

RING - snap, for F3104 gear A26581 bearing

2шт.

38

A30342

SPECIAL BOLT

SCREW - cap, drilled head (3/8" x 3/4" N.C. for F9794 cap)

3шт.

39

F53477

BEARING - shifter gear shaft, R.H.

1шт.

40

F9794

CAP - for A26581 bearing

1шт.

41

F3104

GEAR - (28T) mating shaft F9799 (Grain and rice track) See F3141 for rice wheel

1шт.

F3141

GEAR - (41T) mating shaft F9799 (Rice wheel) See F3104 for grain and rice track

1шт.

F3104

GEAR - (28T) driver-std. gears 1060 grain and 1060 rice track

1шт.

F3105

GEAR - (35T) driven-std. gears 1060 grain and 1060 rice track

1шт.

F3141

GEAR - (41T) driver-std. gear 1060 rice wheel

1шт.

F3140

GEAR - (22T) driven-std. gear 1060 rice wheel

1шт.

F3111

GEAR - (35T) driver-slow speed 1060 rice wheel

1шт.

F3110

GEAR - (28T) driven-slow speed 1060 rice wheel

1шт.

F3135

GEAR - (31T) driver-hi speed 1060 grain (Kansas City Special)

1шт.

F3134

GEAR - (32T) driven hi-speed 1060 grain (Kansas City Special)

1шт.

F3118

GEAR - (24T) driver-slow speed standard 1060 grain (Oregon Special)

1шт.

F3119

GEAR - (39T) driven-slow speed standard 1060 grain (Oregon Special)

1шт.

42

F9749

WASHER - (1-7/8" O.D. x 29/32" I.D. x 1/16" thick) cluster shaft

2шт.

43

F9735

BEARING, ROLLER

BEARING - cluster shaft

2шт.

44

F3102

GEAR CLUSTER - (17T - 41T - 28T)

1шт.

45

F9760

SPACER - (1-1/8" O.D. x 3-1/2" long) for F3102 cluster gear

1шт.

46

F9797

SHAFT - (8-1/16" long) cluster

1шт.
