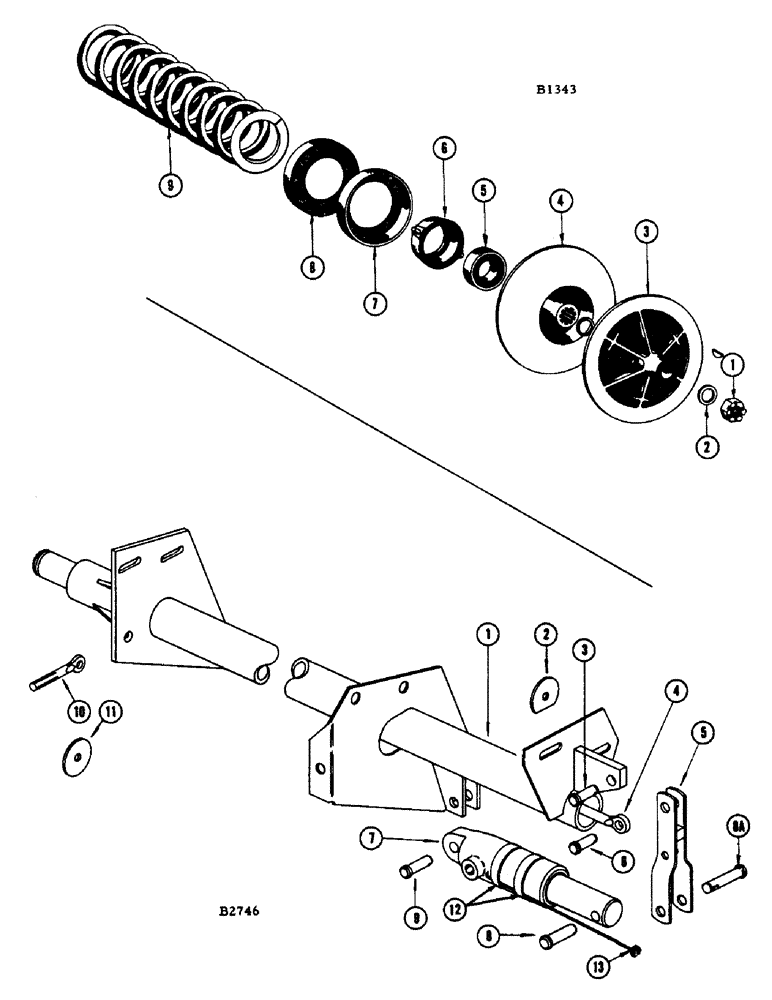

Запчасти Case IH 1060 (266) - VARIABLE SPEED TRACTION DRIVE (16) - TRACTION VARIATOR

1

F9830

NUT

- (1" N.F. slotted L.H. thread)

1шт.

PIN - 1/8" x 1-3/4" cotter (132-54)

1шт.

2

F10886

WASHER - hardened (2" O.D. x 1-1/32" I.D. x 1/4")

1шт.

3

F86991

SHEAVE - half

1шт.

F12994

BUSHING

- for F1950 sheave (Not shown)

3шт.

KEY - #28 Woodruff (126-47)

1шт.

4

F86990

SHEAVE

1шт.

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

1шт.

5

F10898

BALL BEARING

BEARING

1шт.

6

F3045

CARRIER - bearing housing (F10898)

1шт.

7

F6044

PLATE

1шт.

8

F75779

PLATE - spring retaining

1шт.

9

F6043

SPRING

1шт.

F12985

SHAFT - (See clutch shaft and housing) Replaced by F14811 when stock is exhausted

1шт.

F14811

SHAFT - (See clutch shaft and housing) Replaces F12985

1шт.

1

F88328

SHAFT - V.S. upper (Replaces F86723)

1шт.

F86723

SHAFT - V.S. upper (Replaced by F88328 when stock is exh.)

1шт.

2

F12214

WASHER - sheared

1шт.

BOLT - 3/8" x 1-1/2" rhd. sq. nk. gr. 5 stl. (111-307) and nut (25-116) Lockwasher (92-6)

1шт.

3

141-6

CLEVIS PIN,1/2" x 1.360"

PIN - 1/2" clevis

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

4

F12617

ROD - adjusting

1шт.

JAM NUT - 1/2" N.F. hex. (25-158)

1шт.

5

F79285

LINK - adjusting (Before #8334601)

1шт.

F88237

LINK - adjusting (#8334601 and after)

1шт.

6

141-5

CLEVIS PIN,7/16" x 1.190"

PIN - clevis, center ref. 4 to ref. 5

1шт.

PIN - 3/32" x 1" cotter (132-28)

1шт.

7

F76962

CYLINDER - variable speed control

1шт.

8

MT2854S

PIN - clevis, F76962 cylinder to F79285 link

1шт.

PIN - 3/16" x 1" cotter (132-91)

1шт.

8a

F14561

PIN - clevis, cylinder to F88237 link (Use with F14590)

1шт.

PIN - 3/16" x 1" cotter (132-91)

2шт.

9

O5891HT

PIN - clevis, cylinder F76962 to ref. 1, shaft

1шт.

PIN - 1/8" x 1" cotter (132-48)

1шт.

10

F12216

EYEBOLT

1шт.

WASHER - 3/8" std. (95-6) ESNA nut #29NEO 66 (131-6)

1шт.

BOLT - 5/16" x 1" #3 plow (18-516) nut (25-104)

1шт.

11

F12215

WASHER

4шт.

BOLT - 3/8" x 1-1/2" N.F. rhd. sq. nk. (111-307)

2шт.

BOLT - 3/8" x 1-3/4" N.F. rhd. sq. nk. (111-308)

2шт.

NUT - 3/8" N.F. hex. (25-116) lockwasher (92-6)

4шт.

12

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

for F14590 cable #36, 1.81/2.75 Type F Worm

2шт.

13

F14590

CABLE - speed indicator, flexible

1шт.

A26673

CLIP

- for F14590 cable

2шт.

SCREW - #10 x 1/2" hex. hd. self-tapping type "A" (187-487)

2шт.
