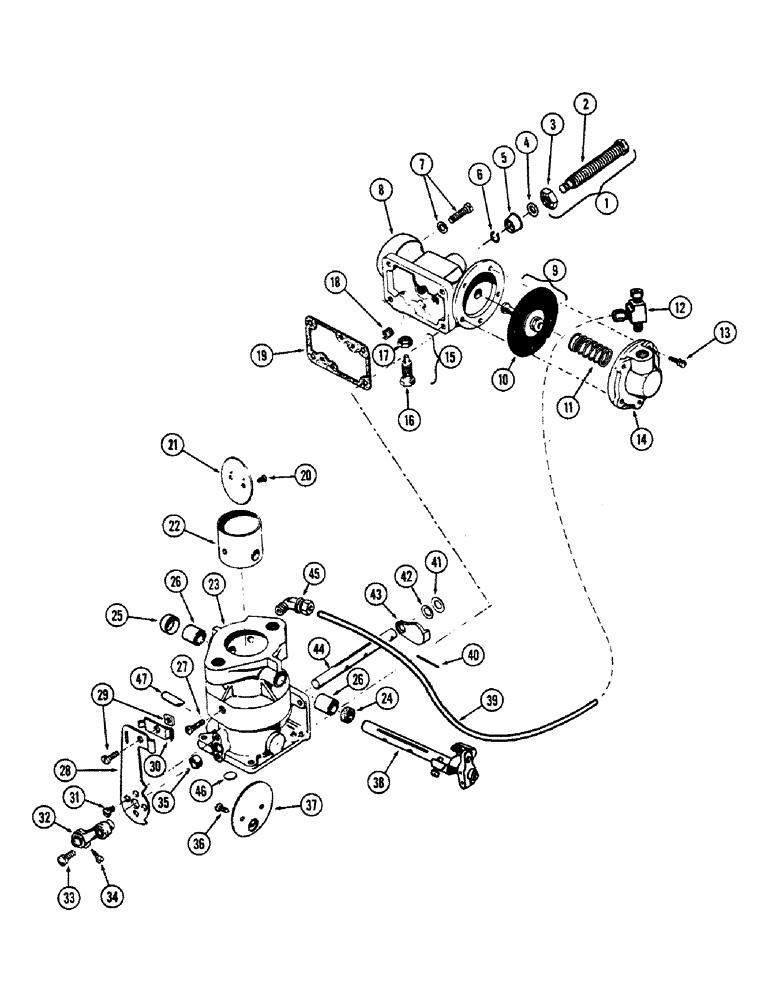

Запчасти Case IH 1010 (428) - A21229 CARBURETOR, 284 L.P. GAS ENGINE (10) - ENGINE

A21229

STIFFENER

CARBURETOR ASSY. - fuel, LP

1шт.

1

A25250

SCREW ASSY. - fuel adjusting

1шт.

2

B50089

SCREW - adjusting, fuel

1шт.

3

B50074

LOCK NUT - adjusting, screw

1шт.

4

B50075

WASHER - spring, adj. screw

1шт.

5

B50088

VALVE - adjusting screw

1шт.

6

B50073

X

RING - grip, adj. screw

1шт.

7

B50043

SCREW ASSY. - mtg., inlet housing

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

8

A25249

HOUSING - inlet, gas & economizer

1шт.

9

B50077

DIAPHRAGM ASSY. - economizer

1шт.

10

B50147

DIAPHRAGM - economizer

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

11

B50146

SPRING - economizer

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

12

B50044

TEE - compression

1шт.

13

B50030

SCREW ASSY. - mtg., cover

5шт.

Part of REPAIR KIT, P/N B50203

1шт.

14

B50158

COVER - economizer

1шт.

15

A25252

SCREW ASSY. - dist. starting

1шт.

16

B50162

SCREW - adj., starting

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

17

B50148

LOCK NUT - starting screw

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

18

B50157

ORIFICE - economizer

1шт.

19

B50163

GASKET - inlet, Serial Range: hsg.-body

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

20

B50143

SCREW - disc., throttle

2шт.

Part of REPAIR KIT, P/N B50203

1шт.

21

B50192

DISC - throttle

1шт.

22

B50171

VENTURI - throat

1шт.

23

A25253

BODY ASSY. - carburetor

1шт.

24

B50145

SEAL - dust, throttle shaft

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

25

B50020

PLUG - welch, 1/2" brass

1шт.

26

B50202

BUSHING - bearing, throttle

1шт.

27

B50042

SCREW ASSY. - set, body

1шт.

28

B50193

SUPPORT ASSY. - choke tube

1шт.

29

B50194

SCREW ASSY. - choke tube clip

1шт.

30

B50204

CLIP - choke tube

1шт.

31

B50032

SCREW - support, choke

2шт.

32

B50195

LEVER ASSY. - choke

1шт.

33

B50033

SCREW - swivel, choke lever

1шт.

34

B50014

SCREW - set "B", choke lever

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

35

B50144

SEAL - dust, choke shaft

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

36

B50142

SCREW - disc, choke

2шт.

Part of REPAIR KIT, P/N B50203

1шт.

37

B50054

DISC - choke

1шт.

38

B50200

SHAFT & LEVER ASSY. - choke

1шт.

39

B50109

TUBE - body to inlet cover (Copper)

1шт.

40

B50161

PIN - lever, valve

1шт.

41

B50136

WASHER - lever, valve

1шт.

Part of REPAIR KIT, P/N B50203

1шт.

42

B50046

WASHER - spring, valve lever

1шт.

43

B50160

LEVER - valve

1шт.

44

B50055

SHAFT - choke

1шт.

45

B50107

X

ELBOW - compression

1шт.

46

B50023

PLUG - 1/2" welch

1шт.

47

A25251

NOZZLE - balance tube

1шт.

B50203

REPAIR KIT - carb., Includes Refs., 7, 10, 11, 13, 16, 17, 19, 20, 24, 34, 35, 36 and 41

1шт.
