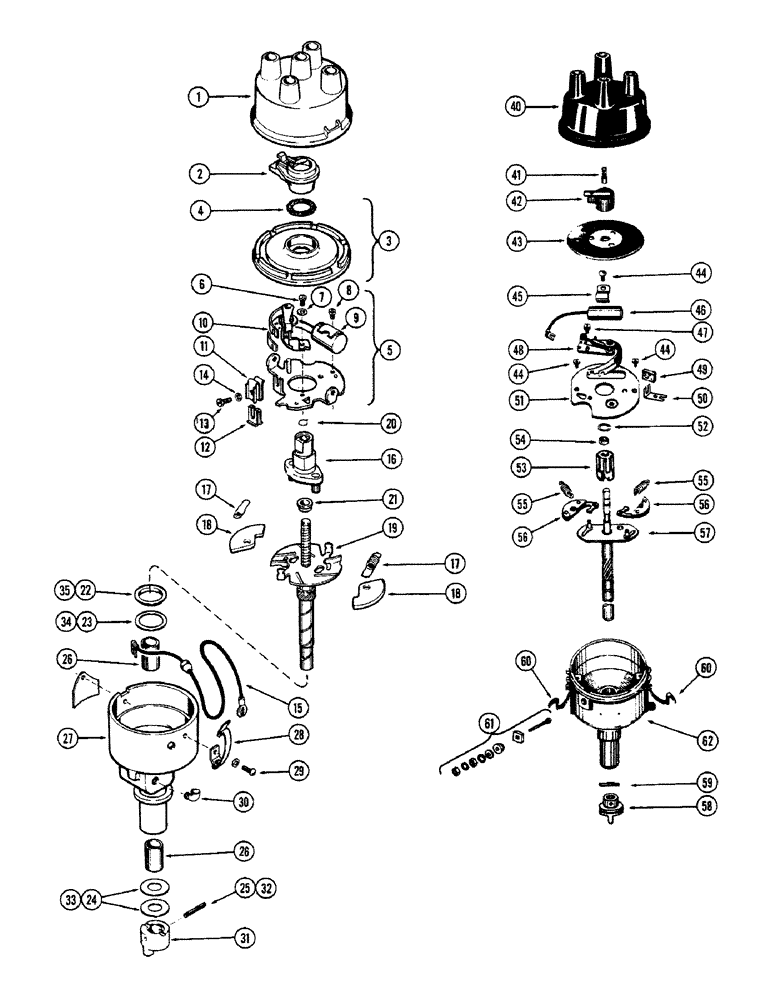

Запчасти Case IH 1010 (426) - A24507 DISTRIBUTOR, 284 SPARK IGNITION ENGINE (10) - ENGINE

A24507

X

DISTRIBUTOR ASSY. - ignition (Auto-Lite #IBT-4801)

1шт.

1

A24564

CAP

- distributor

1шт.

2

A24566

ROTOR

ASSY. - distributor

1шт.

3

A24763

PLATE

ASSY. - seal

1шт.

4

A24764

WASHER

SEAL - plate, felt

1шт.

5

A40330

PLATE

ASSY. - breaker

1шт.

6

A24776

SCREW,Locking, #8 - 32 x 3/16"

- breaker contact

1шт.

7

195-509

WASHER,3/16"

- plain #8 SAE

1шт.

8

164-56

SCREW - #6 x 3/16 N.C., fill. hd.

1шт.

9

A8370

PACKAGE

CONDENSER - distributor

1шт.

10

A24771

PACKAGE, REPAIR

BREAKER - contact

1шт.

11

A24774

CLIP

- retaining

1шт.

12

A24773

INSULATOR

- distributor breaker

1шт.

13

A24775

SCREW,0.138"-32 x 1/32"

- breaker clip

1шт.

14

195-506

WASHER,#6

- plain, SAE #6

1шт.

15

A24772

HARNESS

WIRE - primary lead

1шт.

16

A24762

CAM & STOP - distributor

1шт.

17

A24778

SPRING KIT

SPRING SET - governor weight

1шт.

18

A24754

WEIGHT SET - governor, distributor

1шт.

19

A24780

SHAFT - drive, distributor

1шт.

A40328

SHAFT KIT - distributor

1шт.

20

NSS

NOT SOLD SEPARAT

RING - snap, cam retaining

1шт.

21

NSS

NOT SOLD SEPARAT

SPACER - cam

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER - thrust, outer

1шт.

23

NSS

NOT SOLD SEPARAT

WASHER - thrust, inner

1шт.

24

NSS

NOT SOLD SEPARAT

WASHER - thrust, lower

2шт.

25

138-58

LOCK PIN,1/8" x 13/16", Slotted

Pin, 1/8" x 13/16", Slotted

1шт.

26

NSS

NOT SOLD SEPARAT

BEARING - shaft, (Bronze)

2шт.

27

NSS

NOT SOLD SEPARAT

BODY - distributor (Order A24507)

1шт.

28

A40329

SPRING

CLAMP KIT - dist. cap

1шт.

29

A24779

SCREW - dist. cap clamps

2шт.

30

A24887

OILER - distributor

1шт.

A40324

SHAFT COLLAR KIT - distributor

1шт.

31

NSS

NOT SOLD SEPARAT

COUPLER - shaft

1шт.

32

NSS

NOT SOLD SEPARAT

PIN - coupler pin

1шт.

33

NSS

NOT SOLD SEPARAT

WASHER - thrust, lower

2шт.

34

NSS

NOT SOLD SEPARAT

WASHER - thrust, inner

1шт.

35

NSS

NOT SOLD SEPARAT

WASHER - thrust, outer

1шт.

A20992

X

DISTRIBUTOR ASSY. - ign. (Wico #X30230C)

1шт.

40

A20785

CAP

- distributor, A20992

1шт.

41

A19802

BRUSH ASSY. - rotor, A20992 distributor

1шт.

42

A20784

ROTOR

- distributor, A20992

1шт.

43

A20783

SEAL

- dust, A20992 distributor

1шт.

44

A19805

SCREW - condenser clamp, A20992 distributor

3шт.

45

A19804

CLAMP - condenser, A20992 distributor

1шт.

46

A21540

CONDENSER

- distributor, A20992

1шт.

47

A19806

SCREW - contact set, A20992 distributor

1шт.

48

A20780

CONTACT

SET - breaker, A20992 distributor

1шт.

49

A22137

WIPER - cam (Felt), A20992 distributor

1шт.

50

A19808

BRACKET - wiper, cam, A20992 distributor

1шт.

51

A19809

PLATE - breaker, A20992 distributor

1шт.

52

A19811

CIRCLIP,#43, .375" Dia, E-Type

Ring, Retaining, , cam, A20992 distributor #43, .375" Dia, E-Type

1шт.

53

A19812

CAM - breaker & stop, A20992 distributor

1шт.

54

A25111

FELT - lube, breaker arm, A20992 distributor

1шт.

55

A19813

SPRING SET - advance, A20992 distributor

1шт.

56

A19814

WEIGHT

SET - advance stop (Set of 2), A20992 distributor

1шт.

57

A25242

X

SHAFT - drive distributor, A20992

1шт.

58

A24925

COUPLING - drive, A20992 distributor

1шт.

59

138-57

LOCK PIN,1/8" x 3/4", Slotted

PIN, , A20992 distributor 1/8" x 3/4", Slotted

1шт.

60

A19818

CLIP

CLAMP - spring, dist. cap, A20992

2шт.

61

A19822

CONNECTOR SET - battery, dist., A20992

1шт.

62

A19819

OILER - distributor housing, A20992

1шт.
