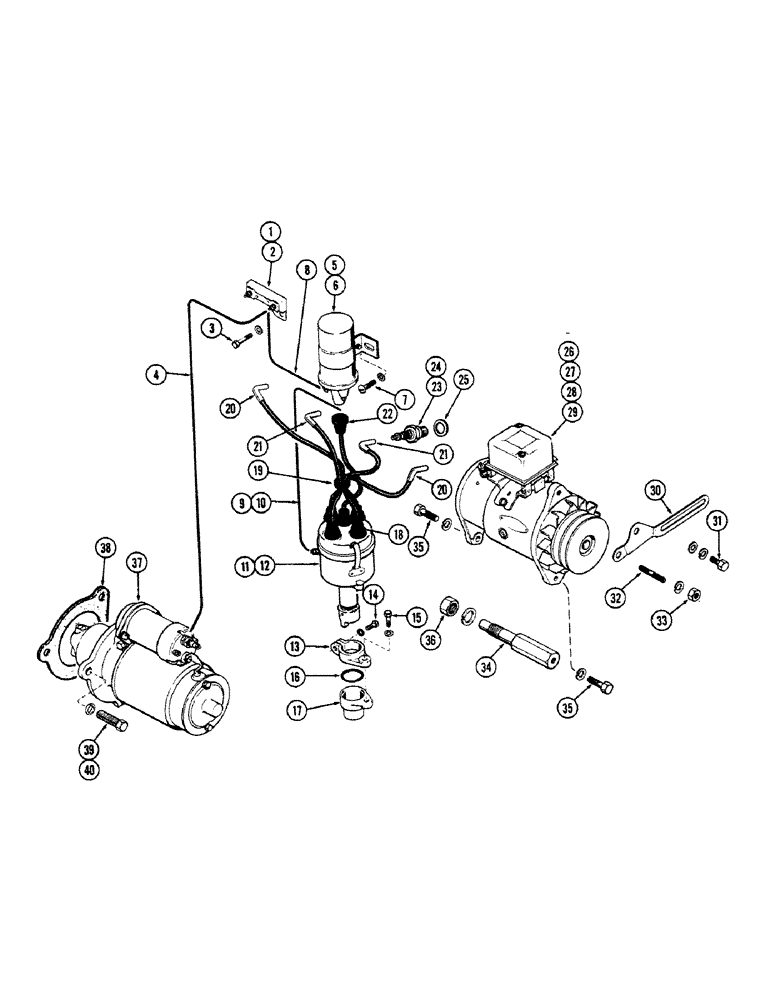

Запчасти Case IH 1010 (418) - IGNITION SYSTEM, 284 SPARK IGNITION ENGINE (10) - ENGINE

1

A24504

RESISTOR

- elec. ballast (Auto-Lite #201020)

1шт.

See Figure Note.

1шт.

2

A20934

X

RESISTOR - elec. ballast (Wico #X20061B)

1шт.

See Figure Note.

1шт.

3

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

4

A8743

WIRE - starter, Serial Range: solenoid-resistor

1шт.

5

G44817

COIL

ASSY. - ignition (Auto-Lite #200576)

1шт.

See Figure Note.

1шт.

6

A20949

X

COIL ASSY. - ignition (Wico #X30081B)

1шт.

See Figure Note.

1шт.

7

75-510

HANDBOOK

SCREW - mach., 5/16" x 5/8" N.C., rd. hd.

2шт.

8

O10224AB

WIRE -, Serial Range: resistor-coil

1шт.

9

A24772

HARNESS

WIRE - primary lead (Auto-Lite)

1шт.

10

O10224AB

WIRE - primary lead (Wico)

1шт.

11

A24507

X

DISTRIBUTOR ASSY. - ignition (Auto-Lite #IBT-4801) (Repairs, page 426)

1шт.

See Figure Note.

1шт.

12

A20992

X

DISTRIBUTOR ASSY. - ignition (Wico #X30230C) (Repairs, page 426) (Order A24507)

1шт.

See Figure Note.

1шт.

13

A7622

CLAMP - distributor

1шт.

14

75-520

SCREW - mach., 5/16" x 1-1/4" N.C., rd. hd.

1шт.

15

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

16

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" RING - distributor mounting

1шт.

17

A7621

INSERT - support, distributor

1шт.

18

VT3561

X

NIPPLE - dist. ignition wires

5шт.

19

A23258

RING - tie, ignition wires

1шт.

20

A20143

ELECTRICAL WIRE

WIRE - ignition (15") (Cyl. #1 & $)

2шт.

21

A20144

ELECTRICAL WIRE

WIRE - ignition (11") (Cyl. #2 & #3)

2шт.

22

G46803

BOOT

NIPPLE - coil wire

1шт.

23

G44840

SPARK PLUG

PLUG - spark, ignition (Gasoline)

4шт.

24

A20905

SPARK PLUG

PLUG - spark, ignition (LP-gas)

4шт.

25

G46839

GASKET

- spark plug seat

1шт.

26

A34126

GENERATOR ASSY. - engine (Repairs, p. 424)

1шт.

27

A33983

GENERATOR

ASSY. - eng. (Order A34126) (Rep. p. 424)

1шт.

28

A22684

GENERATOR - eng. (Order A34126) (Repair, p. 424)

1шт.

29

A20632

X

GENERATOR ASSY. - eng. (Order A34126) (Repairs, p. 424)

1шт.

30

A20386

STRAP - adjusting, generator

1шт.

31

193-514

SCREW,SEMS, Hex Hd, 5/16"-18 x 3/4"

BOLT - sems, 5/16" x 3/4" N.C., indent hex. hd.

1шт.

32

A7391

STUD

- adjusting strap mtg.

1шт.

33

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

1шт.

34

A20818

CARRIER - generator

1шт.

35

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

36

25-1112

NUT,3/4"-16, G5

- 3/4" N.F., hex

1шт.

37

A20873

MOTOR ASSY. - starting (Repairs, p. 422)

1шт.

38

O9866AB

X

GASKET - mtg. starter

1шт.

39

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

2шт.

40

13-844

BOLT,Hex, 1/2" - 13 x 2-3/4", Gr 5

Hex, 1/2"-13 x 2 3/4", G5

1шт.
