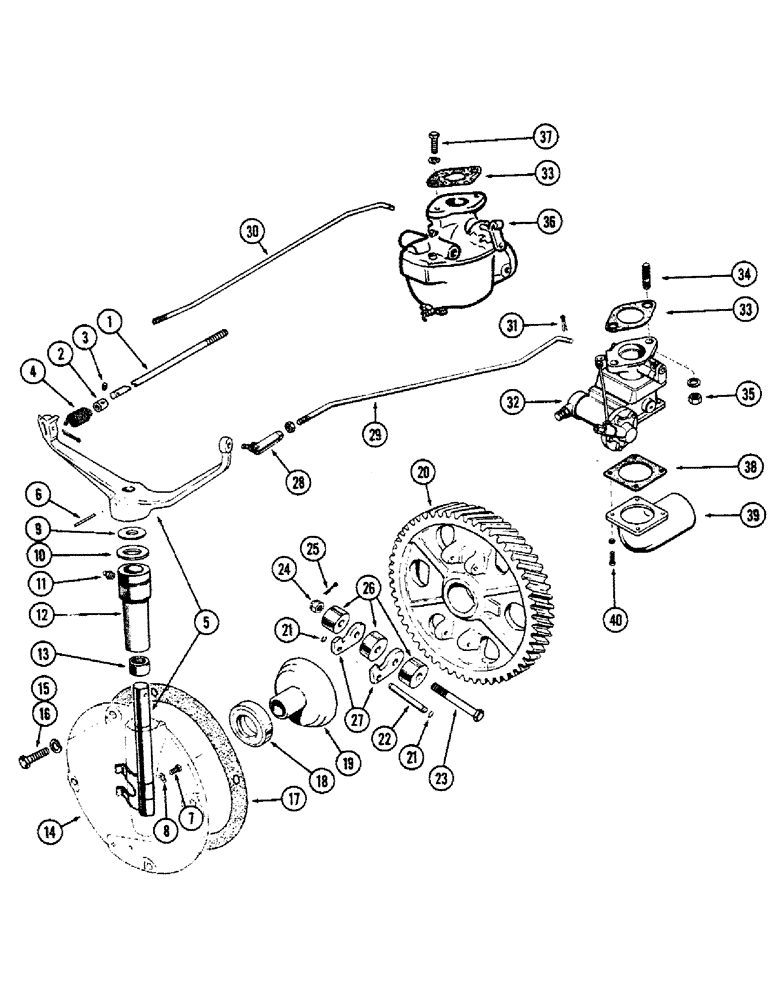

Запчасти Case IH 1010 (414) - GOVERNOR AND THROTTLE, 284 SPARK IGNITION ENGINE (10) - ENGINE

1

A22185

ROD - throttle, front

1шт.

2

A20846

COLLAR

- stop, throttle rod

1шт.

3

84-44

SET SCREW,Hex Soc, 1/4"-28 x 1/4"

SCREW - collar, 1/4" x 1/4" N.C. sckt. hd.

1шт.

4

A20840

SPRING - governor

1шт.

5

A20838

SHAFT

LEVER ASSY. - governor

1шт.

6

138-101

LOCK PIN,3/16" x 1 5/8", Slotted

PIN, LOCK, , Shaft retaining 3/16" x 1 5/8", Slotted

1шт.

7

174-99

SCREW,Sl Rnd Hd, #10 - 32 x 5/8"

- finger ret., #10-32 x 5/8" rd. hd.

2шт.

8

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

9

A7293

WASHER

- thrust, copper

1шт.

10

A7292

SEAL

- oil, 29/32" x 1-23/64" x 1/16" rubber

1шт.

11

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" str.

1шт.

12

A20835

SLEEVE - bearing

1шт.

13

A7290

NEEDLE BEARING,Needle, 14.29mm ID x 19.05mm OD x 12.7mm W

BEARING - needle, sleeve (Tong. #B-98)

2шт.

14

A20833

CAP ASSY. - governor

1шт.

15

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

16

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

17

O9752AB

X

GASKET - cap to timing cover

1шт.

18

A7285

THRUST BEARING,1.0675" ID x 40574" OD x 5"

BEARING - thrust, bell

1шт.

19

A7284

SLEEVE - governor bell

1шт.

20

6451A

X

GEAR - camshaft

1шт.

21

A7111

SNAP RING,#25, Ext

Ring, Snap, , bell sleeve pins #25, Ext

4шт.

22

A7282

PIN,6.31mm OD x 47.63mm L

- bell, Serial Range: sleeve-fingers

2шт.

23

A11693

BOLT - finger & weight pivot

2шт.

24

25-235

SLOTTED NUT

NUT - 5/16" N.F., hex., sltd.

2шт.

25

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

26

A7277

WEIGHT

- governor

6шт.

27

A33471

KIT

FINGER KIT - governor (Set of 4)

1шт.

28

A10326

BALL JOINT

JOINT ASSY. - ball, Serial Range: rod-lever

1шт.

29

A21230

ROD

- gov. to carburetor (LP-gas)

1шт.

30

A21775

ROD

- gov. to carburetor (Gasoline)

1шт.

31

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

1шт.

32

A21229

STIFFENER

CARBURETOR - fuel, LP-gas (Repairs, p. 428)

1шт.

33

O889AB1

X

GASKET -, Serial Range: carb.-manifold

1шт.

34

A10029

STUD -, Serial Range: carb.-manifold

2шт.

35

25-116

NUT,Hex, 3/8"-24, G5

- 3/8" N.F., hex.

2шт.

36

A20813

CARBURETOR

ASSY. - fuel, gasoline (Repairs, p. 430)

1шт.

37

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

38

O8950AB

X

GASKET - air elbow, carb. (LP-gas)

1шт.

39

A21240

ELBOW - carburetor air (LP-gas)

1шт.

40

173-118

SCREW,Sl Rnd Hd, #12 - 24 x 5/8"

- mach., 1/2" x 5/8" N.C. rd. hd.

4шт.
