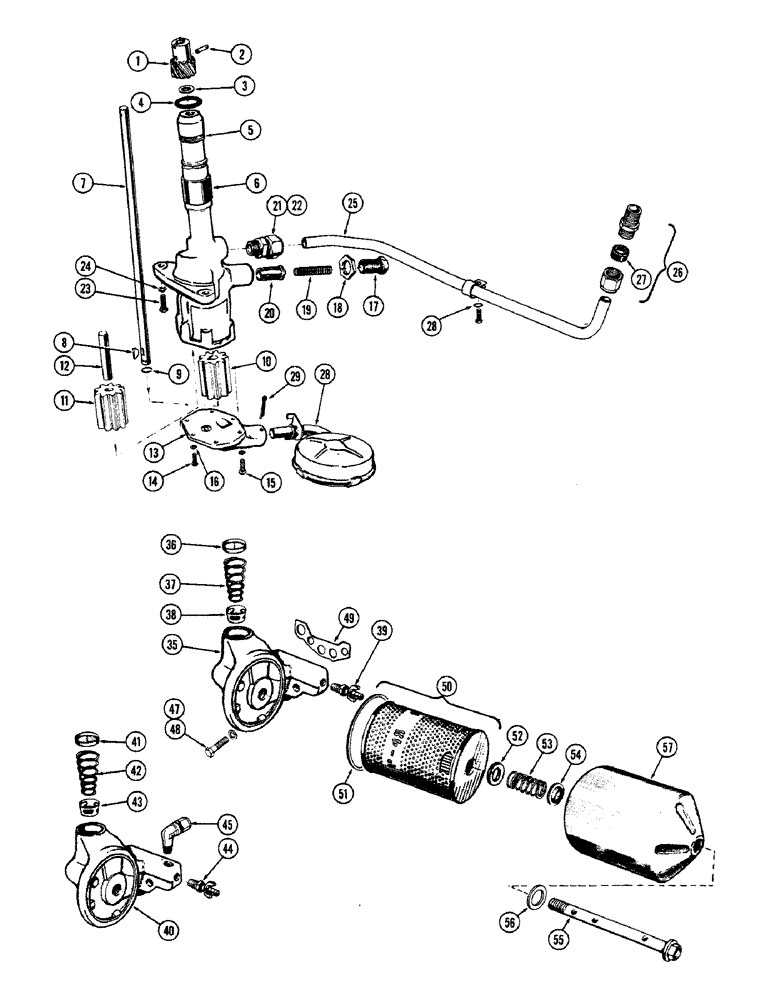

Запчасти Case IH 1010 (410) - ENGINE OIL PUMP, 284 SPARK IGNITION ENGINE (10) - ENGINE

A33443

PUMP

ASSY. - oil, engine

1шт.

1

6453A

X

GEAR - drive, pump

1шт.

2

135-133

GROOVED PIN,3/16" x 1", Type A, Hardened

PIN, GROOVED, 3/16" x 1", Type A, Hardened

1шт.

3

O9732AB

X

WASHER - thrust, drive gear

1шт.

4

O8380AB

X

"O" RING - pump body

2шт.

5

A21094

BODY

ASSY. - oil pump

1шт.

6

A21079

SLEEVE

- pump body

1шт.

7

A21102

SHAFT

- drive, pump

1шт.

8

126-11

WOODRUFF KEY,#5, 1/8" x 5/8"

Shaft to gear #5, 1/8" x 5/8"

1шт.

9

A10916

RING, SNAP

RING - snap, drive shaft

1шт.

10

O9730AB

X

GEAR - driven, w/keyway

1шт.

11

O9731AB

X

GEAR - idler w/o keyway

1шт.

12

O9729AB

SHAFT - stub, pump gear

1шт.

13

A33442

COVER - pump body

1шт.

14

75-412

SCREW,Rd, 1/4" x 3/4"

- mach. 1/4" x 3/4" N.C. rd. hd.

5шт.

15

75-424

SCREW

- mach., 1/4" x 1-1/2" N.F., rd. hd.

1шт.

16

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

6шт.

17

A8902

ADJUSTMENT SCREW,7/8" x 1 5/8"

SCREW - adjusting, oil relief

1шт.

18

O9735AB

NUT - adjusting screw

1шт.

19

A23598

VALVE SPRING

SPRING - relief plunger

1шт.

20

A22566

PLUNGER

- oil relief

1шт.

21

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - tube, 5/8" tube x 1/2" P.T.

1шт.

22

222-106

SLEEVE,5/8" Tube

- connector, 5/8" Tube

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

A21098

TUBE

- oil, Serial Range: pump-filter

1шт.

26

222-31

HYD CONNECTOR,1"-18 x 1/2" NPTF w/Nut

CONNECTOR ASSY. - tube, 5/8" tube x 1/2" P.T.

1шт.

27

222-106

SLEEVE,5/8" Tube

- connector, 5/8" Tube

1шт.

28

O10710AB

SCREEN ASSY. - oil pump

1шт.

29

132-32

COTTER PIN,3/32" x 1 1/2"

Pin, Split (Cotter), 3/32" x 1 1/2"

1шт.

35

A23469

BASE

ASSY. - oil filter (Gasoline), engine

1шт.

36

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, oil, engine filter

1шт.

37

A21091

VALVE SPRING

SPRING - relief valve, engine oil filter

1шт.

38

A21090

VALVE

- oil relief, engine filter

1шт.

39

A23656

COCK, DRAIN

VALVE - drain, base, engine oil filter

1шт.

40

A23471

BASE ASSY. - oil filter (LP-gas), engine

1шт.

41

41-1620

PLUG,Cup, 1 1/4", Stainless

- relief valve, engine oil filter

1шт.

42

A21091

VALVE SPRING

SPRING - relief valve, engine oil filter

1шт.

43

A21090

VALVE

- relief, oil, engine filter

1шт.

44

A23656

COCK, DRAIN

VALVE - drain, base, engine oil filter

1шт.

45

222-442

ELBOW ASSY. - tube, 1/2" tube x 3/8" P.T., engine oil filter 90º x 3/8" NPT x 11/16"-16

1шт.

46

222-506

TUBE NUT,11/16"-16

NUT - elbow, 1/2" tube, engine oil filter

1шт.

47

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

Engine oil filter Hex, 1/2"-13 x 1 1/2", G5, Full Thd

1шт.

48

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- 1/2" x 1-3/4" N.C., hex., engine oil filter

1шт.

49

A21084

GASKET

- mtg., filter base, engine oil

1шт.

50

A21475

ENGINE OIL FILTER

ELEMENT KIT - oil filter, engine

1шт.

51

A21473

GASKET

- mtg. filter shell, engine oil

1шт.

52

A21474

GASKET

- bolt, inner, engine oil filter

1шт.

53

A21478

SPRING

- tension, element, engine oil filter

1шт.

54

A21477

RETAINER

SEAT - tension spring, engine oil filter

1шт.

55

A21476

BOLT

- filter shell & element, engine oil

1шт.

56

A21479

GASKET

- bolt, outer, engine oil filter

1шт.

57

A21471

SHELL

- element housing, filter, engine oil

1шт.
