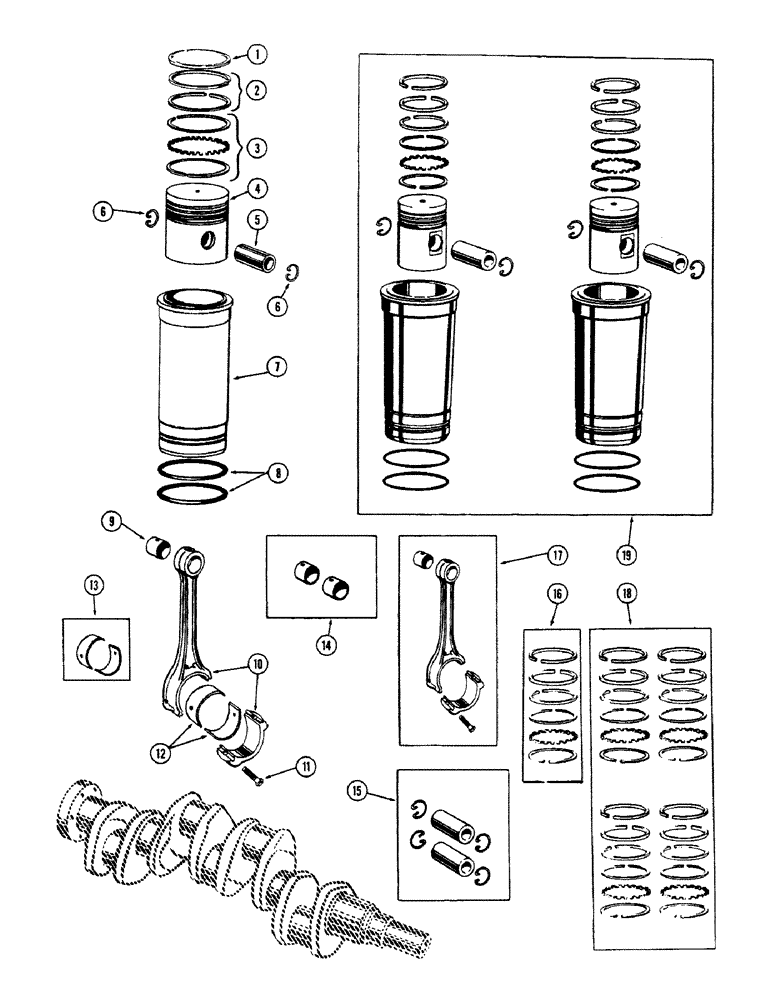

Запчасти Case IH 1010 (408) - PISTONS, SLEEVES AND CONNECTING RODS, 284 SPARK IGNITION ENGINE (10) - ENGINE

1

NSS

NOT SOLD SEPARAT

RING - piston, top (Order ref. #16 or 18)

4шт.

2

NSS

NOT SOLD SEPARAT

RING - piston, 2nd & 3rd (Order ref. #16 or 18)

8шт.

3

NSS

NOT SOLD SEPARAT

RING SET - piston, oil (Order ref. #16 or 18)

4шт.

4

A20800

PISTON ASSY.

PISTON - cylinder 4-1/4" bore

4шт.

5

NSS

NOT SOLD SEPARAT

PIN - piston (Order ref. #15)

4шт.

6

O9714AB

X

RING - retaining, piston pin

8шт.

7

A23659

PLUG,Cup, 1 5/8"

SLEEVE - cylinder (See ref. 19)

4шт.

8

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - cylinder sleeve

8шт.

9

NSS

NOT SOLD SEPARAT

BUSHING - conn. rod (Order ref. #14)

4шт.

10

NSS

NOT SOLD SEPARAT

ROD - connecting (Order ref. #17)

4шт.

11

O9718AB

X

SCREW - cap, connecting rod

8шт.

12

NSS

NOT SOLD SEPARAT

LINERS - brg., connecting rod (Order ref. #13)

8шт.

13

A20393

LINING

LINER KIT - brg., conn. rod (Set of 2) (Std. size)

4шт.

13

A20569

JOURNAL

LINER KIT - brg., conn. rod (Set of 2) (-.002")

4шт.

13

A20582

LINING

LINER KIT - brg., conn. rod (Set of 2) (-.010")

4шт.

13

A20573

KIT

LINER KIT - brg., conn. rod (Set of 2) (-.020")

4шт.

13

A20576

LINING

LINER KIT - brg., conn. rod (Set of 2) (-.030")

4шт.

14

A21721

BUSHING

- conn. rod (Set of 2)

2шт.

15

A21724

KIT

PIN KIT - piston (Set of 2 pins & 4 retainers)

2шт.

16

A40367

PISTON RING SET

RING KIT - piston (Re-ring single piston)

4шт.

17

4603AA

X

ROD ASSY. - connecting (Incl. rod, cap, bushing and cap screws)

4шт.

18

A21582

RING, SET

RING KIT - piston (Re-ring 4 pistons)

1шт.

19

A23667

SET

SLEEVE KIT - cylinder (Set of 2) (Incl. sleeves, pistons & rings, pins & ret. rings, and sleeve "O" rings)

2шт.
