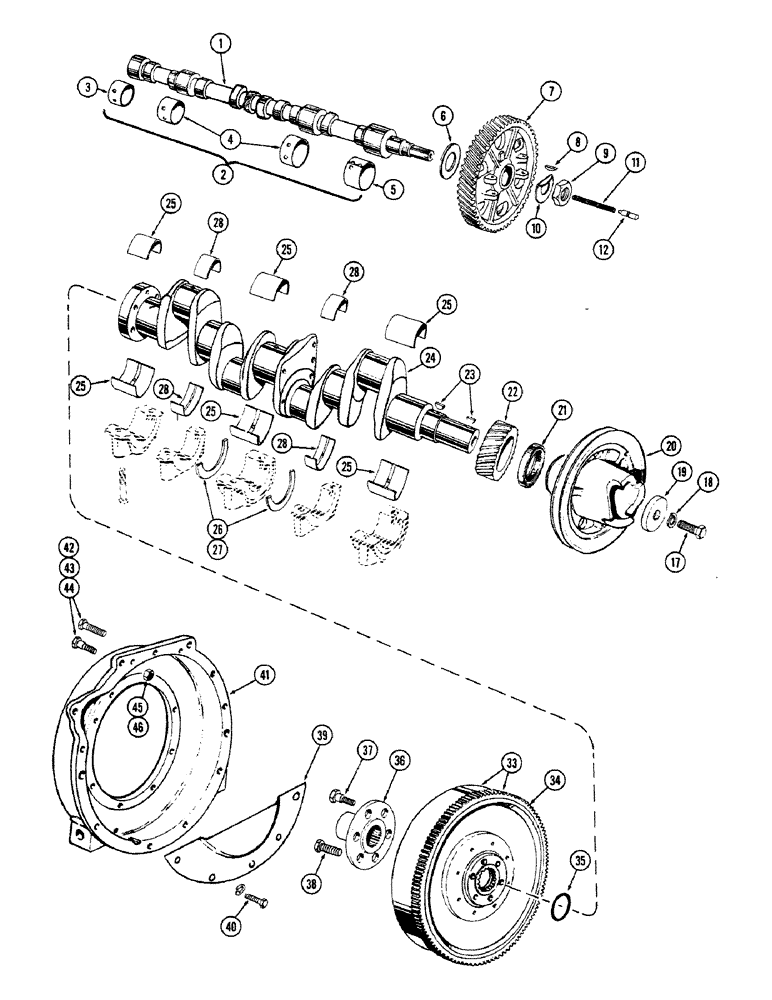

Запчасти Case IH 1010 (406) - CAMSHAFT, 284 SPARK IGNITION ENGINE (10) - ENGINE

1

A23501

CAMSHAFT

- engine

1шт.

2

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

3

NSS

NOT SOLD SEPARAT

BUSHING - rear, cam (Order A23577)

1шт.

4

NSS

NOT SOLD SEPARAT

BUSHING - 2nd. & 3rd., cam (Order A23577)

2шт.

5

NSS

NOT SOLD SEPARAT

BUSHING - front, cam. (Order A23577)

1шт.

6

O9705AB

X

WASHER - thrust, camshaft

1шт.

7

6451A

X

GEAR - camshaft

1шт.

8

126-28

WOODRUFF KEY,#18, 1/4" x 1 1/8"

Gear to cam #18, 1/4" x 1 1/8"

1шт.

9

O971AB

X

NUT - camshaft gear retaining

1шт.

10

O970AB

X

LOCKWASHER - cam, gear nut

1шт.

11

O9726AB

X

SPRING - thrust plunger

1шт.

12

O9725AB

X

PLUNGER - thrust

1шт.

17

O10282AB

X

SCREW - cap, drive pulley, crankshaft

1шт.

18

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , Crankshaft 5/8"

1шт.

19

A23229

WASHER

- fan drive pulley, crankshaft

1шт.

20

F1215

PULLEY - fan and generator drive, crankshaft

1шт.

21

A23433

OIL SEAL

- oil, crankshaft front

1шт.

22

O9707AB

X

GEAR - crankshfat front

1шт.

23

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Crank gear & pulley to crankshaft #C, 5/16" x 1 1/8", HT

2шт.

24

A22578

CRANKSHAFT - engine

1шт.

25

4706AA

X

LINER KIT - brg., c'shft. (Set of 2) (Wide, std. size)

3шт.

25

A7182

KIT

LINER KIT - brg., c'shft. (Set of 2) (Wide, -.002")

3шт.

25

A7188

BEARING LINER

LINER KIT - brg., c'shft. (Set of 2) (Wide, -.010")

3шт.

25

A7194

KIT

LINER KIT - brg., c'shft. (Set of 2) (Wide, -.020")

3шт.

25

A7200

KIT

LINER KIT - brg., c'shft. (Set of 2) (Wide, -.030")

3шт.

26

O9705AB

X

WASHER - thrust, crankshaft (Std. size)

2шт.

27

A7204

WASHER

- thrust, crankshaft (+.006")

2шт.

28

A20394

LINING

LINER KIT - brg., c'shft. (Set of 2) (Narrow, std. size)

2шт.

28

A20579

LINING

LINER KIT - brg., c'shft. (Set of 2) (Narrow, -.002")

2шт.

28

A20582

LINING

LINER KIT - brg., c'shft. (Set of 2) (Narrow, -.010")

2шт.

28

A20585

KIT

LINER KIT - brg., c'shft. (Set of 2) (Narrow, -.020")

2шт.

28

A20588

KIT

LINER KIT - brg., c'shft. (Set of 2) (Narrow, -.030")

2шт.

33

A20876

FLYWHEEL ASSY. - engine, housing

1шт.

34

A20875

GEAR, RING

GEAR - ring, flywheel, housing

1шт.

35

O10035AB

X

"O" RING - flywheel to crankshaft, housing

1шт.

36

F3088

HUB - engine output, flywheel and housing

1шт.

37

F7662

BOLT - dowel, flywheel to c'shft., housing

2шт.

38

F7663

BOLT - flywheel to crankshaft, housing

4шт.

39

A7081

BEARING

SHIELD - dust, flywheel, housing

1шт.

40

14-820

BOLT,Hex, 1/2" - 20 x 1-1/4", Gr 5

- 1/2" x 1-1/4" N.F., hex., flywheel and housing

4шт.

41

A8670

HOUSING - flywheel

1шт.

42

A20108

BOLT - housing to cyl. block, flywheel

2шт.

43

A32607

STEP BOLT

- long, hsg. to cyl. block, flywheel

1шт.

44

A32608

STEP BOLT

BOLT - short, hsg. to cyl. block, flywheel

1шт.

45

25-108

NUT,1/2"-13, G5

- 1/2" N.C., hex., flywheel and housing

2шт.

46

25-1012

NUT,3/4"-10, G5

Flywheel and housing 3/4"-10, G5

2шт.
