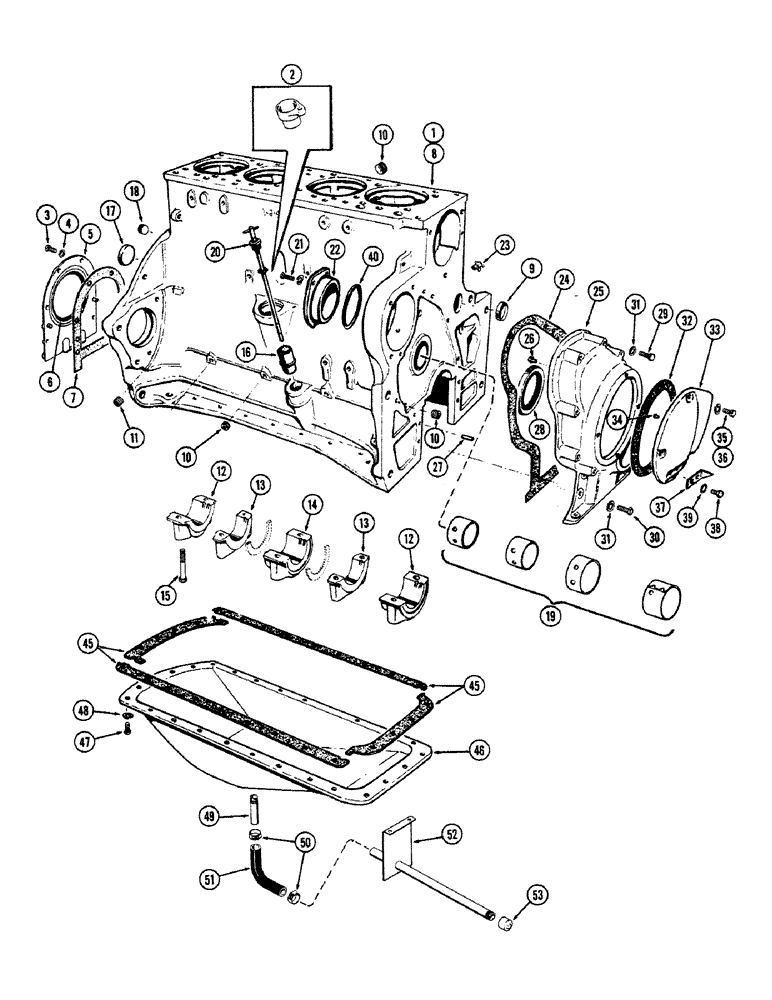

Запчасти Case IH 1010 (404) - CYLINDER BLOCK ASSEMBLY, 284 SPARK IGNITION ENGINE (10) - ENGINE

1

A40360

BLOCK ASSY. - cyl., short (Incl. stripped block, pistons, connecting rods, crankshaft rear seal retainer, camshaft, sleeves, cam gear, brg. liners and dist. insert)

1шт.

2

A7621

INSERT - distributor

1шт.

3

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

4

92-6

LOCK WASHER,3/8"

6шт.

5

A32182

RETAINER

ASSY. - rear crank seal

1шт.

6

A23085

OIL SEAL

- oil, rear crank retainer

1шт.

7

A32830

GASKET

- rear crankshaft retainer

1шт.

8

A23510

X

BLOCK ASSY. - cyl., stripped

1шт.

9

41-1628

PLUG,Cup, 1 3/4", Stainless

- cup, front water gallery

1шт.

10

221-1843

PLUG

- pipe, 3/8" hex. socket hd.

5шт.

11

221-41

PLUG

- pipe, 1/8" slotted headless

2шт.

12

A24941

CAP

- brg., crankshaft (Wide)

2шт.

13

A24942

CYLINDER END CAP

CAP - brg., crankshaft (Narrow)

2шт.

14

A24943

CAP

- brg., crankshaft (Thrust)

1шт.

15

O9707AB

X

SCREW - cap, crank brg. cap

10шт.

16

A20714

X

SOCKET - oil level gauge

1шт.

17

A24361

PLUG

- cup, rear camshaft

1шт.

18

221-26

DRAIN PLUG,Sq Soc, 1"-11 1/2, NTPF

PLUG - pipe, 1" sq. socket hd.

1шт.

19

A23577

KIT

BUSHING KIT - camshaft (Set of 4)

1шт.

20

A20739

GAUGE

- oil level, (Dipstick)

1шт.

21

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

22

A7625

COVER - magneto opening

1шт.

23

A23656

COCK, DRAIN

VALVE - drain, cylinder block

1шт.

24

A33018

GASKET

- timing gear cover

1шт.

25

A23334

COVER ASSY. - timing gear

1шт.

26

O9754AB

BUTTON - thrust, timing cover

1шт.

27

O9710AB

PIN - dowel, timing cover

2шт.

28

A23433

OIL SEAL

- oil, front crankshaft

1шт.

29

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

- 3/8" x 2-1/2" N.C., hex.

8шт.

30

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

31

92-6

LOCK WASHER,3/8"

10шт.

32

O9752AB

X

GASKET - cap, timing cover

1шт.

33

A20833

CAP ASSY. - timing cover

1шт.

34

O9754AB

BUTTON - thrust, cover cap

1шт.

35

13-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

3шт.

36

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

37

O10853AB

POINTER - timing

1шт.

38

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

39

193-44

LOCK WASHER,Ext-Int Tooth, 1/4"

LOCKWASHER - 1/4" int.-ext. Shakeproof

2шт.

40

A23316

O-RING,0.139" Thk x 4.484" ID, -246, Cl 5, 75 Duro

"O" RING - magneto opening cover

1шт.

45

A7616

GASKET KIT

- oil pan

1шт.

46

A23023

PAN - oil, engine

1шт.

47

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

Oil pan Hex, 3/8"-16 x 7/8", G5, Full Thd

26шт.

48

92-6

LOCK WASHER,3/8"

oil pan 3/8"

26шт.

49

221-193

PIPE,Nipple, 1/2" NPT x 3 1/2"

NIPPLE - pipe, 1/2" T.P.T. x 3-1/2", oil pan

1шт.

50

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose (1-3/16" to 1-3/4"), oil pan

2шт.

51

F9984

HOSE - drain, oil pan

1шт.

52

F79826

PIPE AND SUPPORT - oil drain, pan

1шт.

53

221-525

CAP,1/2" NPT

- pipe, 1/2" P.T. std., oil pan

1шт.
