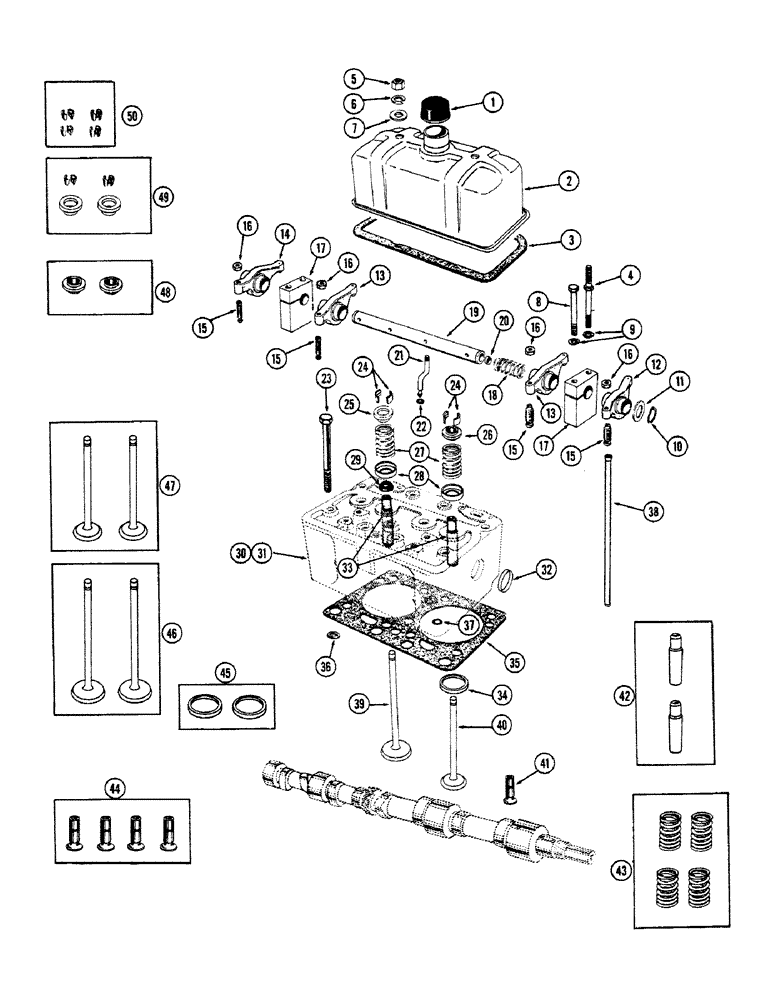

Запчасти Case IH 1010 (402) - CYLINDER HEAD ASSEMBLY, 284 SPARK IGNITION ENGINE (10) - ENGINE

1

O9960AB

X

BREATHER - cyl. head cover

2шт.

2

A20345

COVER - cylinder head

2шт.

3

O9959AB

X

GASKET - cylinder head cover

2шт.

4

O10732AB

STUD - cyl. hd. cover & rocker brkt.

4шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.F., hex.

4шт.

6

A23683

WASHER

- bevel, cover stud

4шт.

7

A23684

GASKET

GASKET - head cover stud

4шт.

8

13-760

BOLT,Hex, 7/16" - 14 x 3-3/4", Gr 5

4шт.

9

92-7

LOCK WASHER,7/16"

8шт.

10

O3658CH

X

RING - snap, rocker shaft

4шт.

11

O9770AB

X

WASHER - rocker shaft

1шт.

12

A22324

ROCKER

ARM ASSY. - rocker, exh. (#1 & 3 cyl.)

2шт.

13

A22322

ROCKER

ARM ASSY. - rocker, intake

4шт.

14

A22326

ROCKER

ARM ASSY. - rocker, exh. (#2 & 4 cyl.)

2шт.

15

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adj., rocker arm

1шт.

16

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.C., hex.

1шт.

17

O9773AB

BRACKET - shaft, rocker arm

4шт.

18

O9769AB

X

SPRING - rocker shaft

2шт.

19

A21100

SHAFT

ASSY. - rocker arm

2шт.

20

O2803AB1

PLUG - end, rocker shaft

2шт.

21

O9771AB

X

TUBE - oil, rocker shaft

2шт.

22

O9772AB

X

"O" RING - oil tube

2шт.

23

A23355

BOLT

- cylinder head

18шт.

24

NSS

NOT SOLD SEPARAT

KEEPER - valve spring (Order ref. #50)

16шт.

25

NSS

NOT SOLD SEPARAT

RETAINER - int. valve spring (Order ref. #49)

4шт.

26

NSS

NOT SOLD SEPARAT

ROTO CAP - exhaust valve (Order ref. # 48)

4шт.

27

NSS

NOT SOLD SEPARAT

SPRING - int. & exh. valve (Order ref. # 43)

8шт.

28

O9751AB

X

SEAT - int. & exh. valve spring

8шт.

29

A10726

SEAL

SHIELD - int. valve stem (Rubber)

4шт.

30

A20809

CYLINDER HEAD

HEAD ASSY. - cylinder (Gasoline)

2шт.

31

A21243

HEAD

ASSY. - cylinder (LP-gas)

2шт.

32

A34124

PLUG,Cup, 1 5/8", Stainless

- cup, cyl. head

2шт.

33

NSS

NOT SOLD SEPARAT

GUIDE - valve, int. & exh. (Order ref. #42)

4шт.

34

NSS

NOT SOLD SEPARAT

INSERT - valve seat, exh. (Order ref. #45)

2шт.

35

A23117

GASKET

- cylinder head

2шт.

36

A7669

RING

- cyl. hd. water passage

4шт.

37

O8569AB

X

"O" RING - cyl. head gasket oil

2шт.

38

A21060

ROD

- push, rocker arm

8шт.

39

NSS

NOT SOLD SEPARAT

VALVE - intake (Order ref. #46)

4шт.

40

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order ref. #47)

4шт.

41

NSS

NOT SOLD SEPARAT

LIFTER - push rod (Order ref. #44)

8шт.

42

A21673

GUIDE

KIT - int. & exh. valve (Set of 2)

4шт.

43

A21694

SPRING

KIT - int. & exh. valve (Set of 4)

2шт.

44

A21653

KIT

LIFTER KIT - push rod (Set of 4)

2шт.

45

A33454

INSERT

KIT - exh. valve seat (Set of 2)

2шт.

46

A33457

VALVE

KIT - intake (Set of 2)

2шт.

47

A33458

VALVE, ENG EXHAUST,

VALVE KIT - exhaust (Set of 2)

2шт.

48

A24993

CAP

ROTO-CAP KIT - exh. valve (Set of 2)

2шт.

49

A21657

LOCK

RETAINER KIT - int. valve (Set of 2 ret., 4 keepers)

2шт.

50

A40352

LOCK

KEEPER KIT - valve spring (Set of 8)

2шт.
