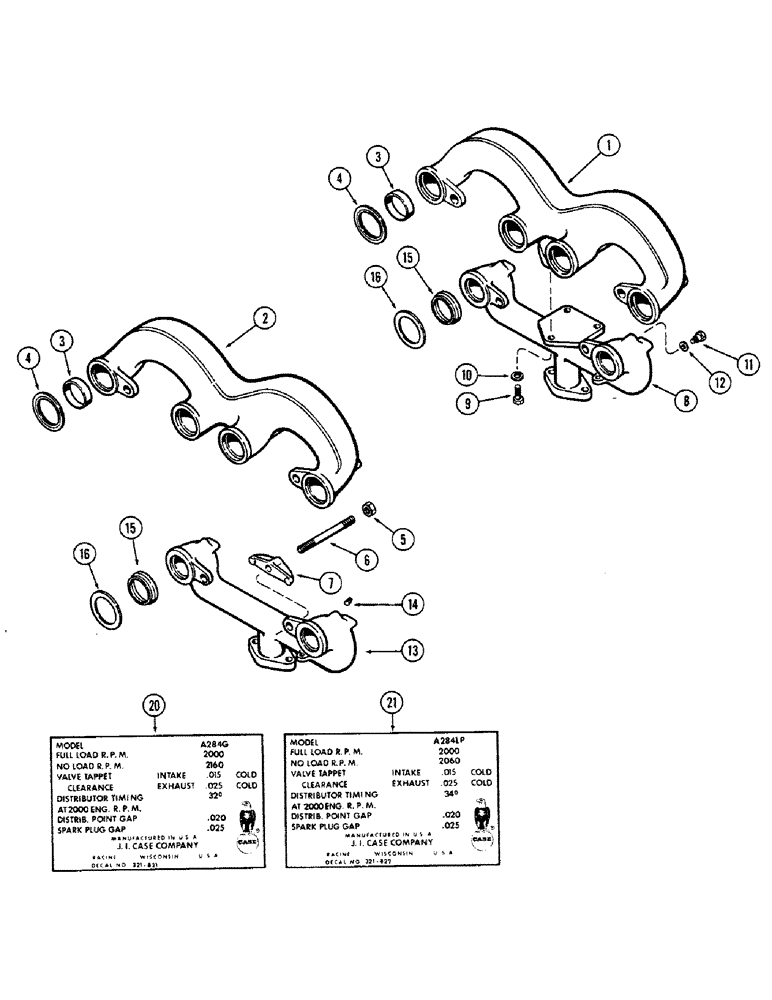

Запчасти Case IH 1010 (400) - INTAKE AND EXHAUST MANIFOLD, 284 SPARK IGNITION ENGINE (10) - ENGINE

1

A20811

MANIFOLD - exhaust (Gasoline)

1шт.

2

A21245

MANIFOLD - exhaust (LP-gas)

1шт.

3

A11837

FERRULE

- exhaust manifold

4шт.

4

A11889

GASKET

- exhaust manifold

4шт.

5

25-117

NUT,7/16"-20, G5

- 7/16" N.C., hex.

4шт.

6

O9817AB

X

STUD - mtg., int. & exh. manifold

4шт.

7

A24368

CLAMP

- int. & exh. manifold

4шт.

8

A20812

X

MANIFOLD - intake (Gasoline)

1шт.

9

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

10

92-6

LOCK WASHER,3/8"

3шт.

11

13-58

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5

1шт.

12

A20778

GASKET - boss, int. manifold

1шт.

13

A20900

MANIFOLD - intake (LP-gas)

1шт.

14

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

2шт.

15

A20814

BUSHING,39.69mm ID x 42.93mm OD x 12.7mm L

FERRULE - intake manifold

2шт.

16

O9814AB

X

GASKET - intake manifold

2шт.

20

321-821

DECAL - engine date (Gasoline)

1шт.

21

321-822

DECAL - engine date (LP-gas)

1шт.
