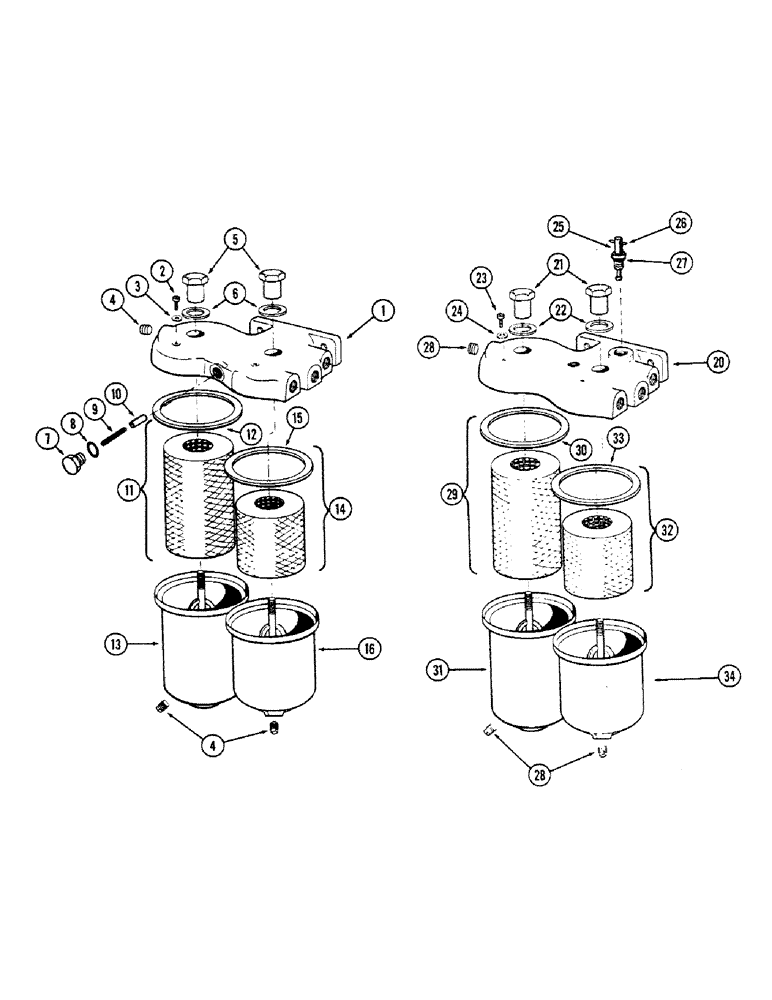

Запчасти Case IH 1010 (398) - A40435 PRIMARY FILTER, 301 DIESEL ENGINE, COMBINE SERIAL NUMBER 8262501 AND AFTER (10) - ENGINE

A40435

FILTER

ASSY. - primary fuel, 1st. & 2nd stage

1шт.

1

A24915

HEAD - filter

1шт.

2

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- bleed

2шт.

3

A20662

GASKET

WASHER - bleed screw

2шт.

4

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd.

3шт.

5

A21131

NUT

- body retaining

2шт.

6

O10344AB

X

GASKET - retaining nut

2шт.

7

A24916

PLUG

- relief valve

1шт.

8

O8569AB

X

"O" RING - valve plug

1шт.

9

A24918

SPRING

- relief valve

1шт.

10

A24917

PLUNGER

- relief valve

1шт.

11

A21141

FILTER, ELEMENT

ELEMENT ASSY. - 1st. stage filter

1шт.

12

O10345AB

X

GASKET -, Serial Range: body-head

1шт.

13

A21129

BODY

- filter, 1st. stage

1шт.

14

A7627

FILTER, ELEMENT

ELEMENT ASSY. - 2nd. stage filter

1шт.

15

O10345AB

X

GASKET -, Serial Range: body-head

1шт.

16

A21132

BODY

- filter, 2nd. stage

1шт.

A21133

FILTER

ASSY. - primary fuel, 1st. & 2nd. stage, A21133 primary filter prior, Start Serial: 8262501

1шт.

20

A21077

FILTER HEAD

HEAD - filter, A21133 primary filter prior, Start Serial: 8262501

1шт.

21

A21131

NUT

- retainer, filter body to head,A21133 primary filter prior, Start Serial: 8262501

2шт.

22

O10344AB

X

GASKET - retainer nut, A21133 primary filter prior, Start Serial: 8262501

2шт.

23

A20663

SCREW,Fil Hd, #10 - 32 x 5/16"

- filter bleed, A21133 primary filter prior, Start Serial: 8262501

2шт.

24

A20662

GASKET

- bleed screw, A21133 primary filter prior, Start Serial: 8262501

2шт.

25

A21097

VALVE - by-pass, filter, A21133 orimary filter prior, Start Serial: 8262501

1шт.

26

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , A21133 primary filter 1/8" x 1", Slotted prior, Start Serial: 8262501

1шт.

27

VT2983

X

"O" RING - by-pass valve, A21133 primary filter prior, Start Serial: 8262501

1шт.

28

221-11

PLUG,Sq Hd, 1/8"-27

- pipe, 1/8" sq. hd., A21133 primary filter prior, Start Serial: 8262501

3шт.

29

A21141

FILTER, ELEMENT

ELEMENT KIT - filter, 1st. stage, A21133 primary filter prior, Start Serial: 8262501

1шт.

30

O10345AB

X

GASKET - body to head, A21133 primary filter prior, Start Serial: 8262501

1шт.

31

A21129

BODY

- element, first stage, A21133 primary filter prior, Start Serial: 8262501

1шт.

32

A7627

FILTER, ELEMENT

ELEMENT KIT - filter, 2nd. stage, A21133 primary filter prior, Start Serial: 8262501

1шт.

33

O10345AB

X

GASKET - body to head, A21133 primary filter prior, Start Serial: 8262501

1шт.

34

A21132

BODY

- element, 2nd. stage, A21133 primary filter prior, Start Serial: 8262501

1шт.
